Electronic Brake Control Module: Service and Repair

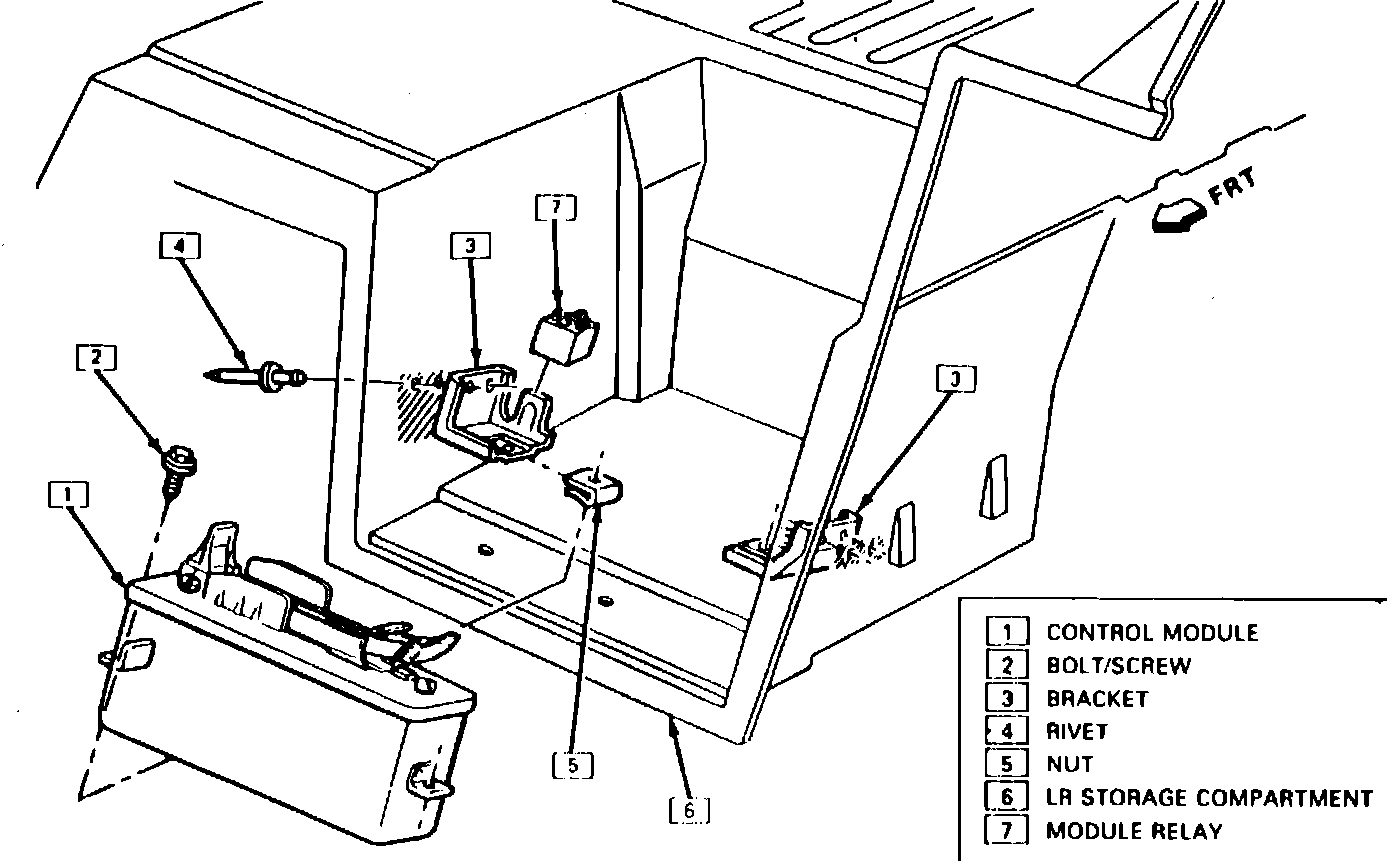

Fig. 24 Control module:

1. Disconnect battery ground cable.
2. Remove storage tray and insulation.
3. Disconnect control module electrical connector, then remove module relay from control module bracket.
4. Remove two control module attaching bolts, then the control module, Fig. 24.
5. Reverse procedure to install.
