Timing Component Alignment Marks: Locations

Fig. 13 Belt & pulley alignment. Exc. 16 valve engine:

Fig. 14 Camshaft timing pulley alignment. Exc. 16 valve engine:

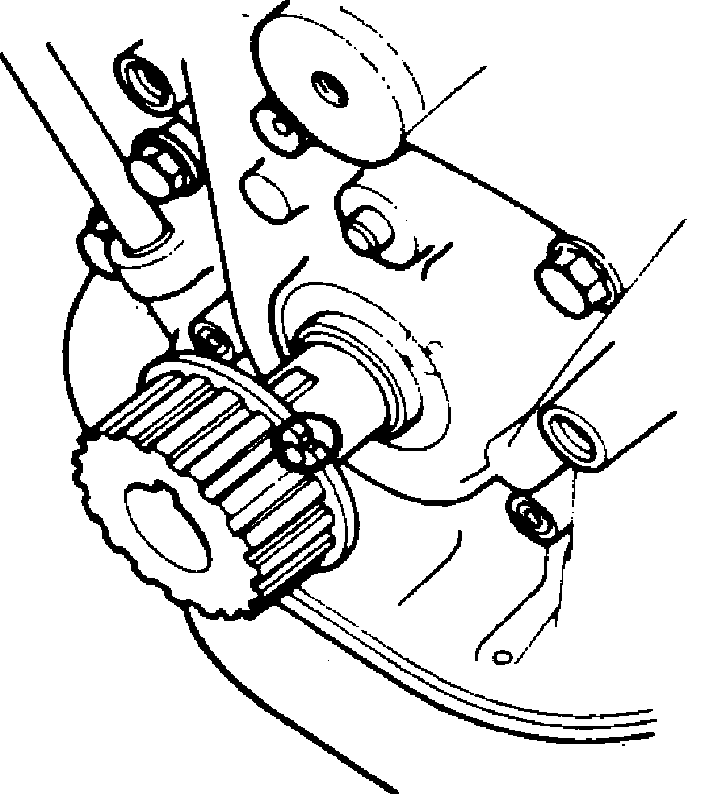

Fig. 15 Crankshaft timing pulley alignment. Exc. 16 valve engine:

Fig. 16 Timing mark alignment. Exc. 16 valve engine:

CAUTION: Incorrect removal or installation of the timing belt can result in damage to internal engine components.

For complete Timing Belt Removal and Installation information, Service and Repair
