Vehicle Speed Sensor: Locations

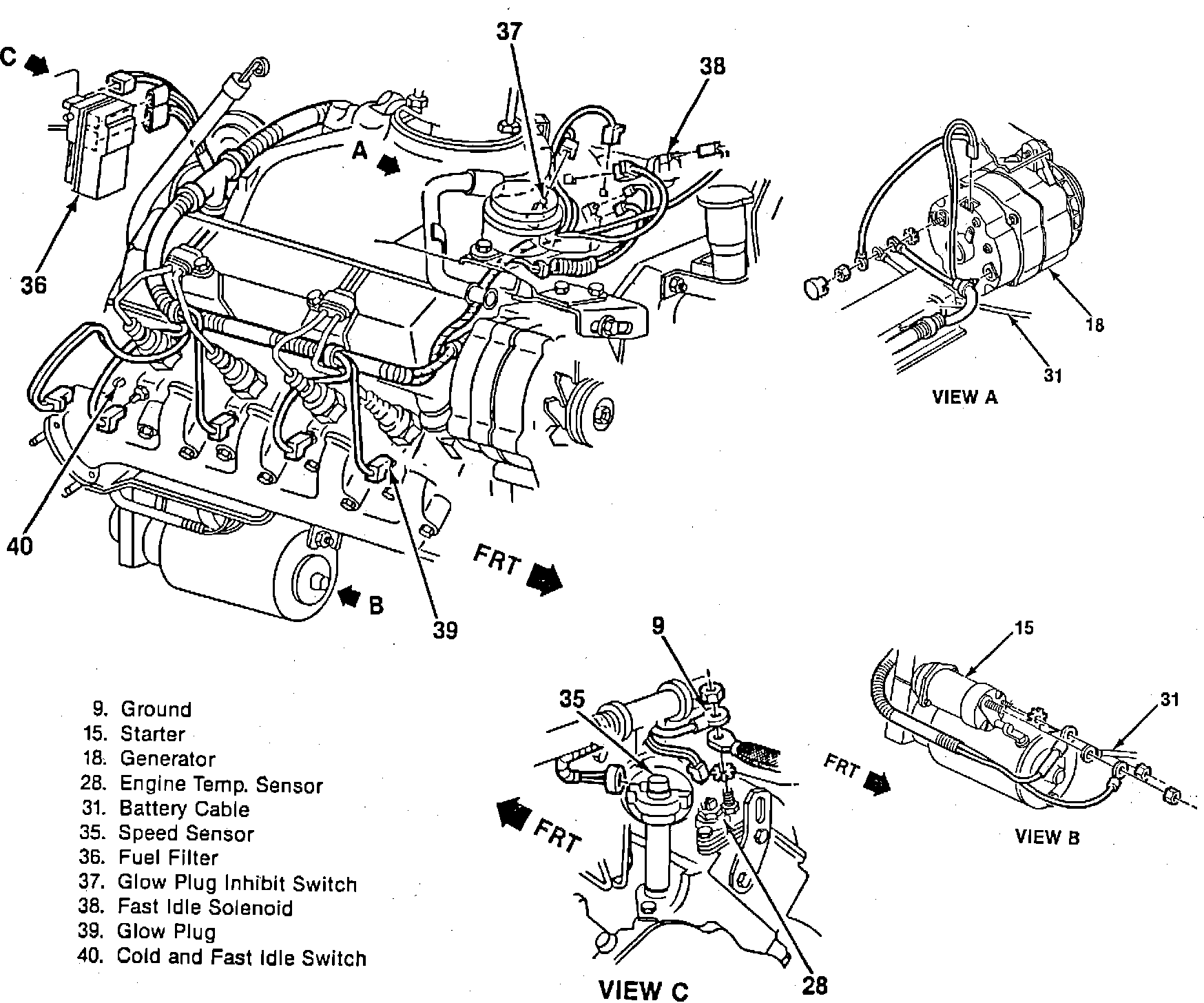

RH side of V8-379/6.2L:




Rear Of Engine

Applicable to: 2L diesel engine. 1987 R & V series
