With Tachometer

Measure resistance between "IG" and "FU" terminals. Resistance should be about 102.7 ohms. Measure resistance between "FU" and "GND" terminals. Resistance should be about 64.5 ohms. See Fig 1 .

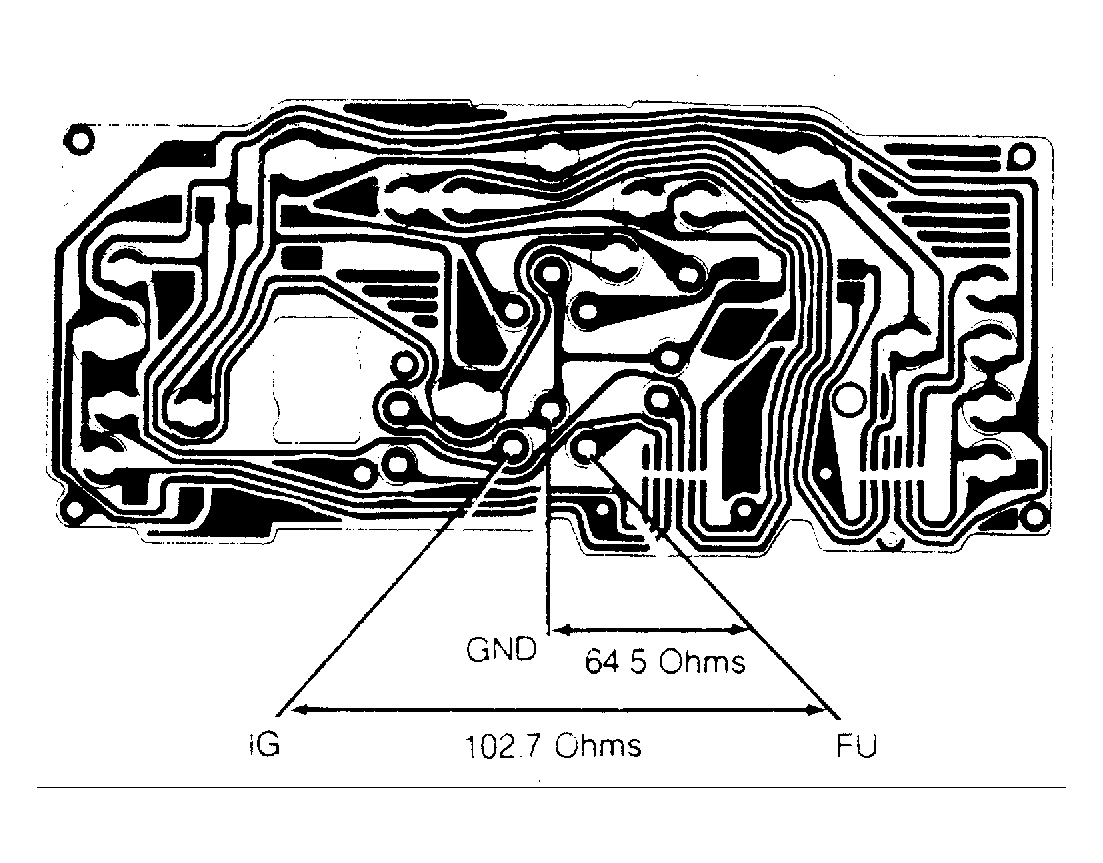

Fig 1: Checking Fuel Gauge (W/Tachometer)
