Heater System: Testing: Resistor

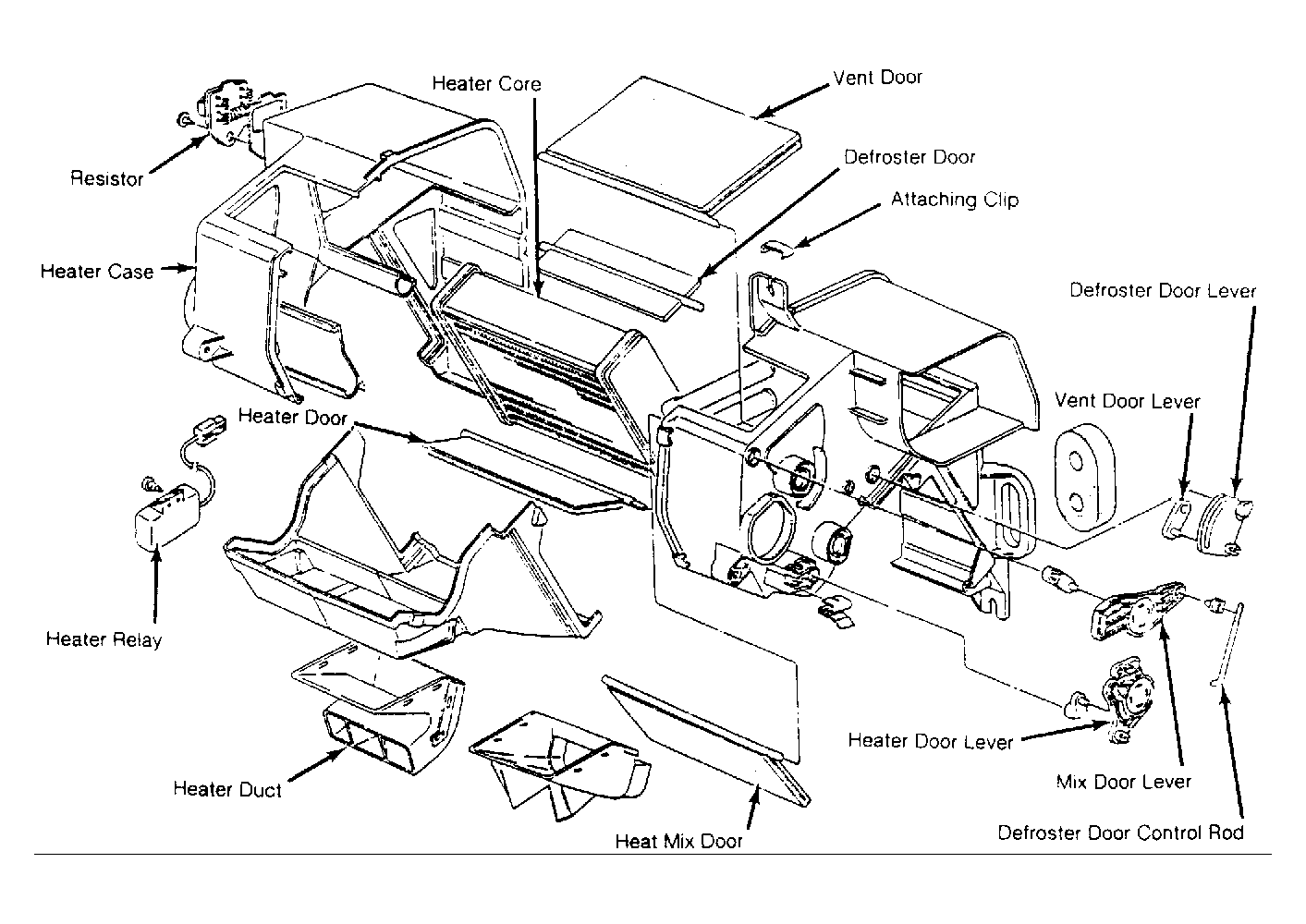

Fig 1: Resistor Terminals
G66086
RESISTOR TESTING

Resistor Terminals Ohms
Heat Mode
C-B 1.0
C-A 3.19
Vent Mode
C-B .84
C-A 2.80
