EXPERTEC TSB (87-150)

WARNING: This page is about the Spectrum Base, 2D Hatchback, Automatic, which is a different variant/trim than selected.

Publication date: 1987-05-14
Reference number: 87-150

EXPERTEC TSB

TECHNICAL SERVICE BULLETIN

Reference Number(s): 87-150, Date of Issue: 05/14/87

05/14/1987

Chevrolet 87-150

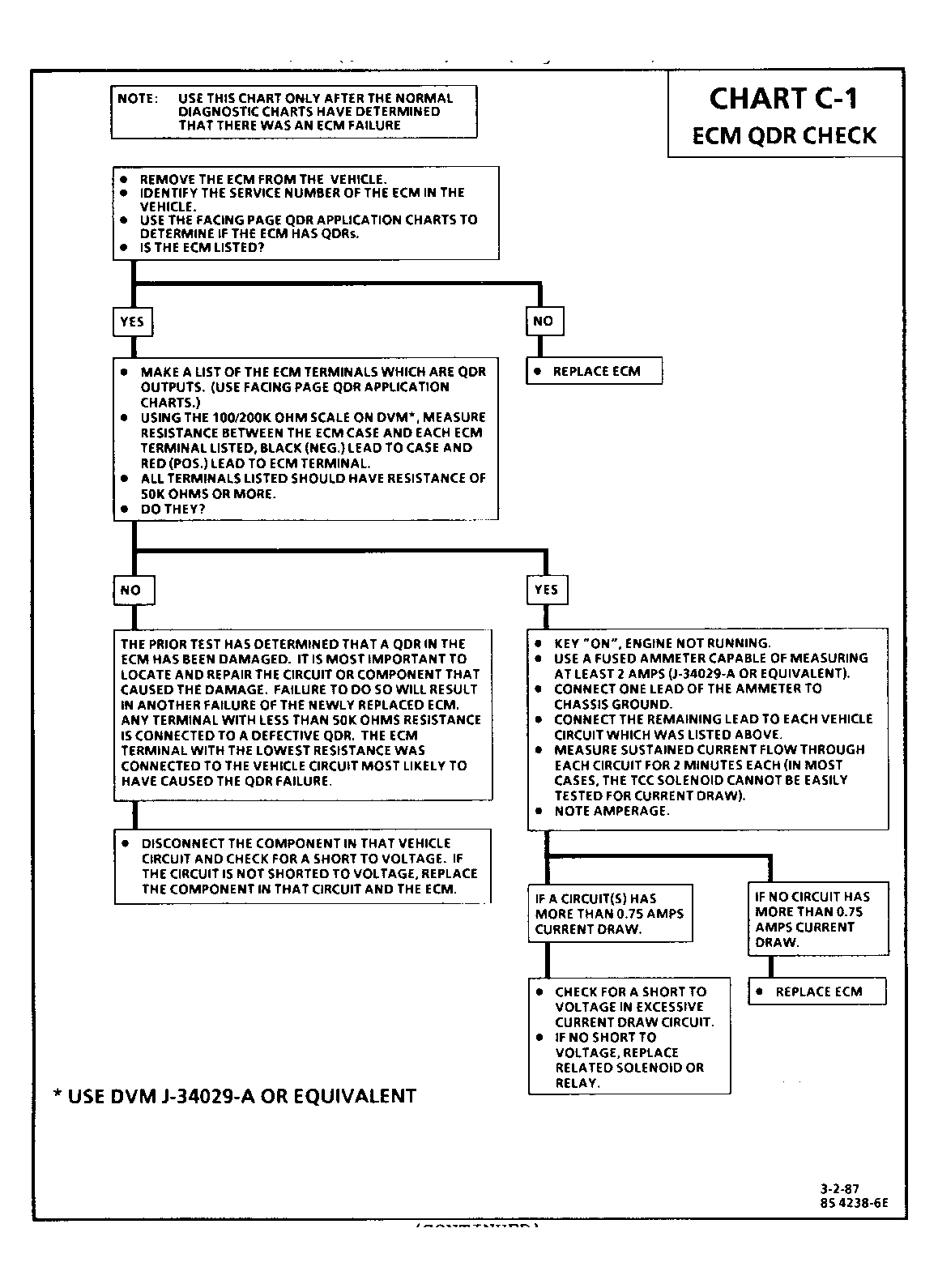

Fig 1: Graphic

Fig 2: Graphic

Fig 3: Graphic

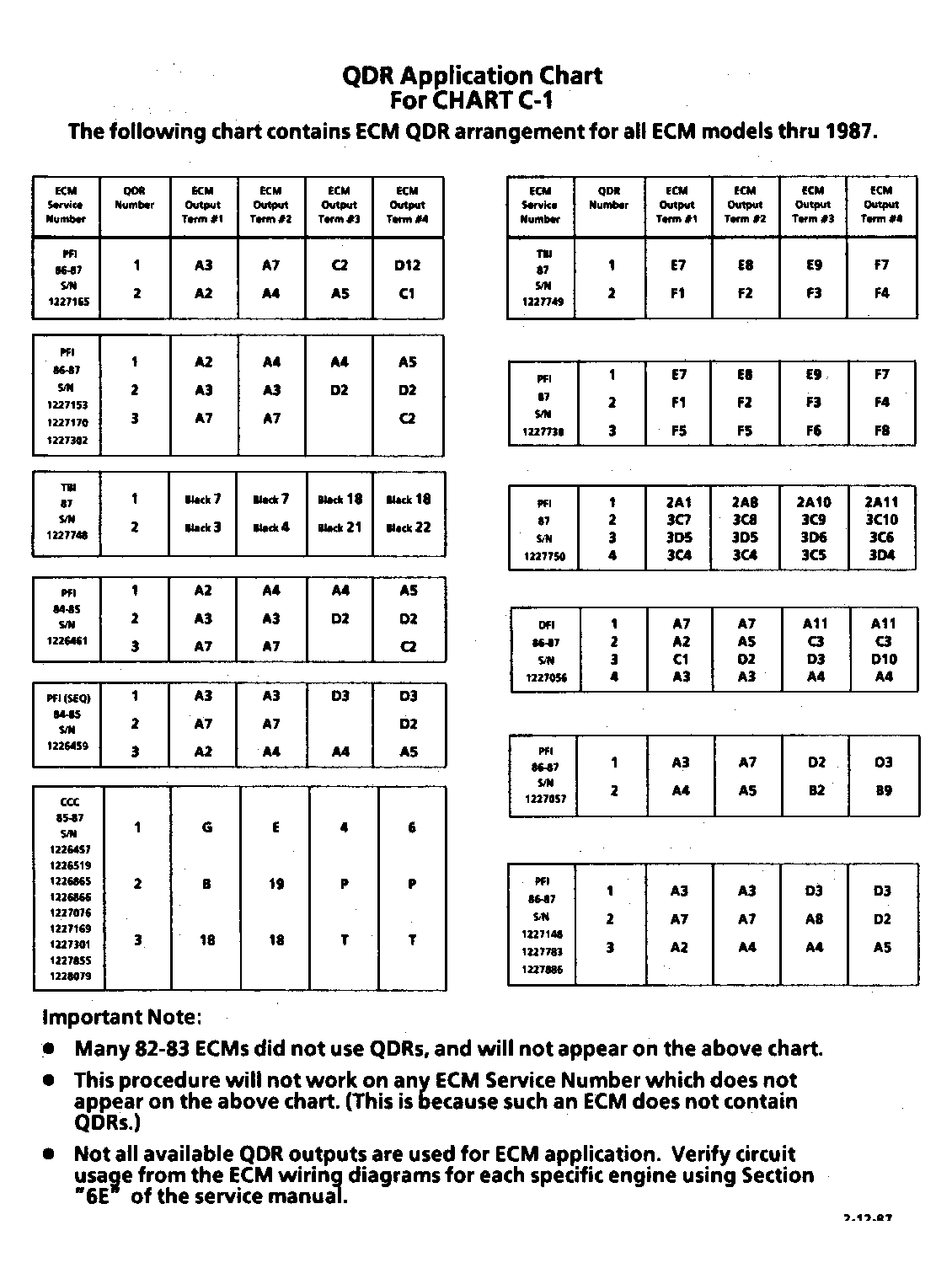

Fig 4: Service Information (1 Of 2)

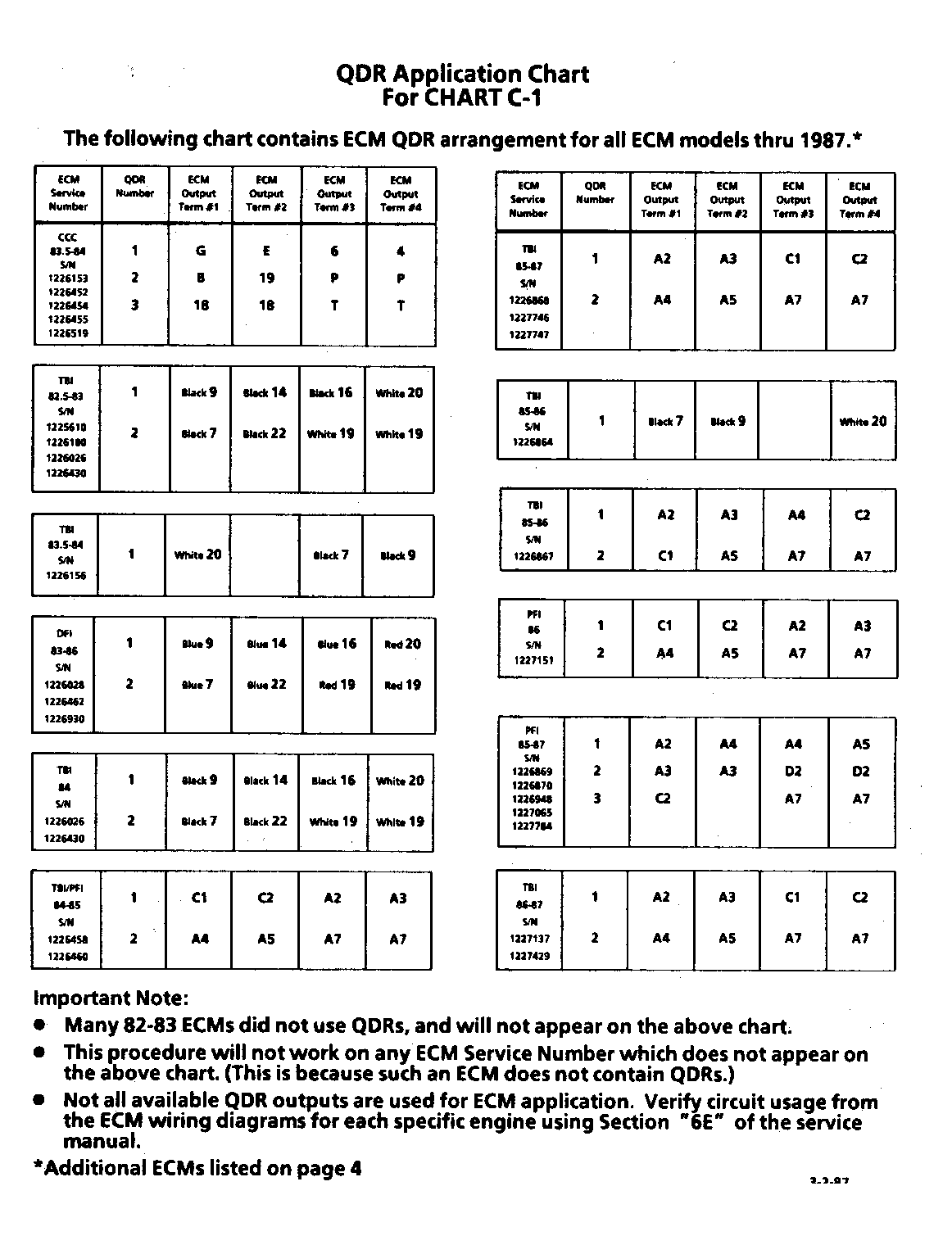

Fig 5: Service Information (2 Of 2)
