EXPERTEC TSB (87C19A)

WARNING: This page is about the Spectrum Base, 2D Hatchback, Automatic, which is a different variant/trim than selected.

Publication date: 1992-06-01
Reference number: 87C19A

EXPERTEC TSB

TECHNICAL SERVICE BULLETIN

Reference Number(s): 87C19A, Date of Issue: 06/01/92

Chevrolet 87C19A

06/01/1992

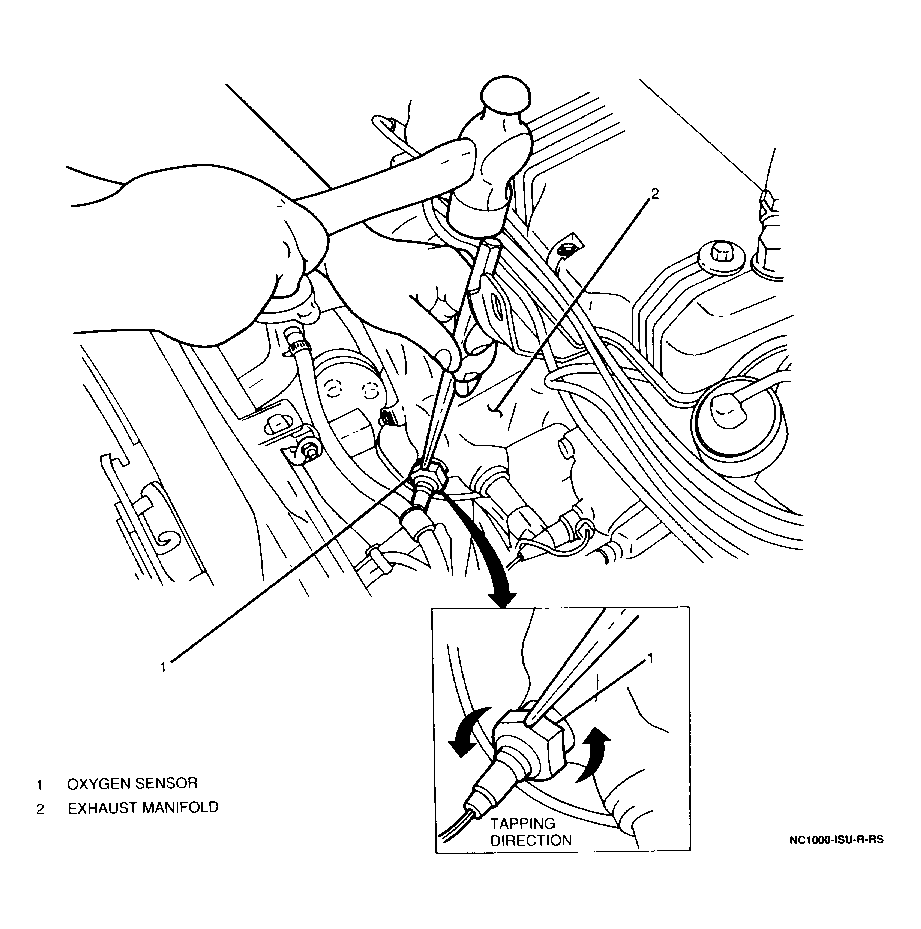

Fig 1: Graphic

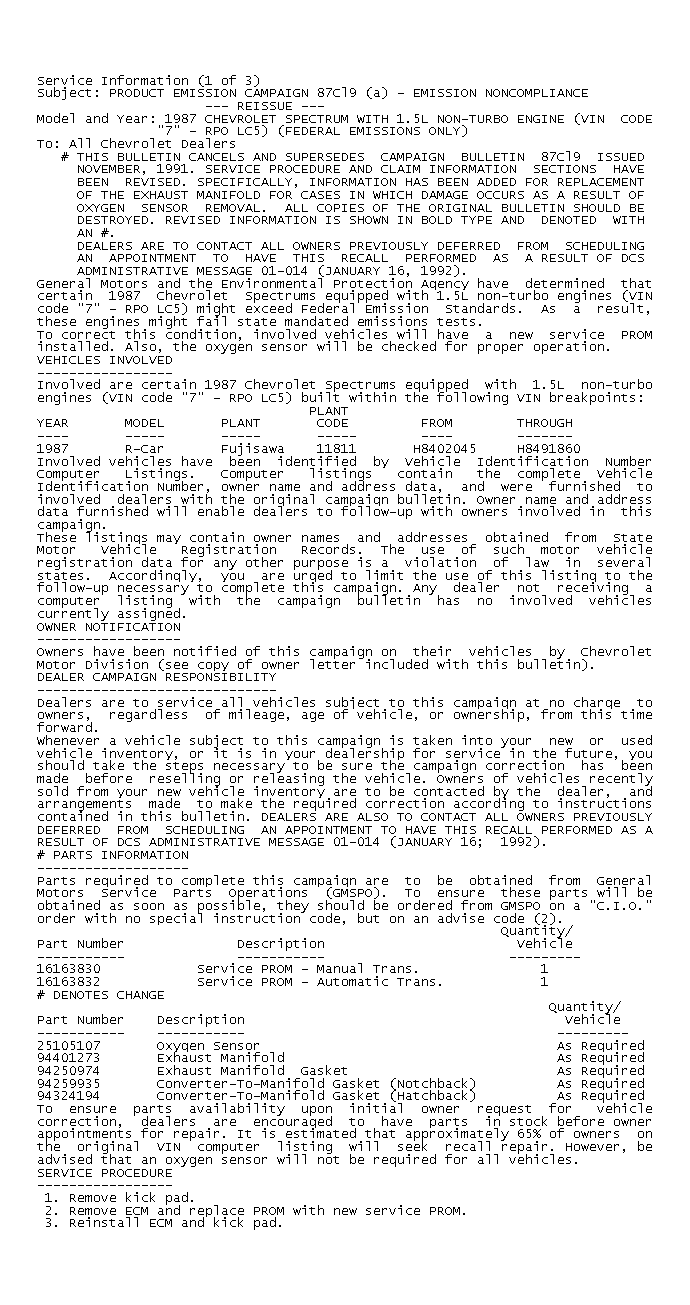

Fig 2: Service Information (1 of 3)

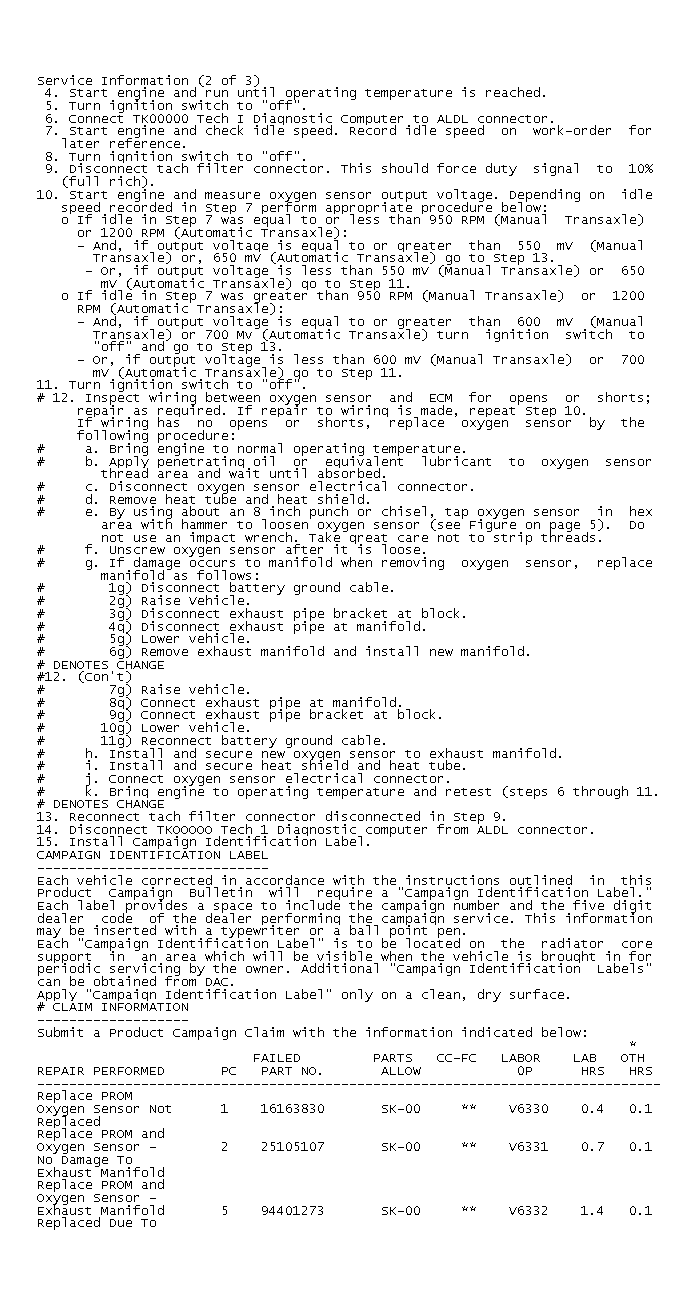

Fig 3: Service Information (2 of 3)

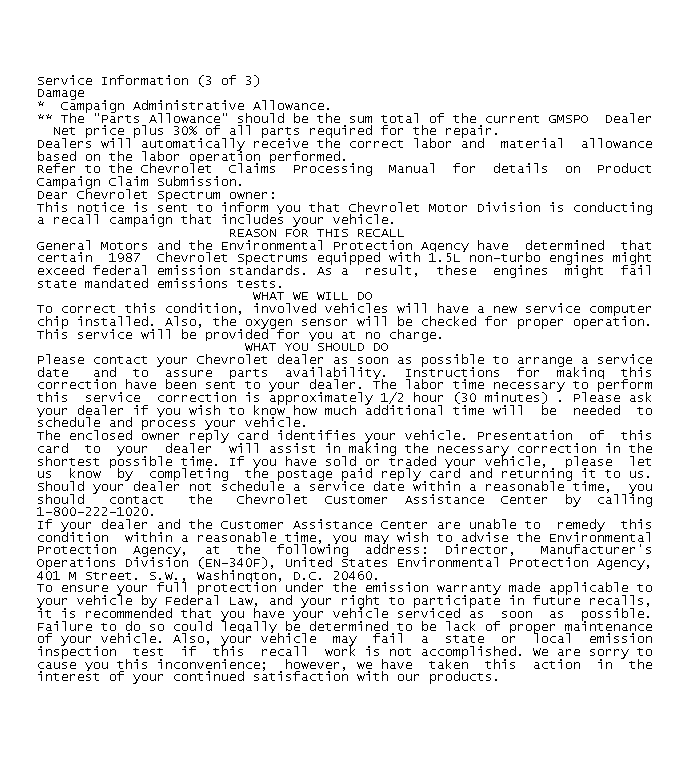

Fig 4: Service Information (3 of 3)
