Vacuum Modulator Rod: Spectrum

To determine correct vacuum modulator rod length, measure distance "N" at transaxle. See VACUUM DIAPHRAGM ROD SELECTION for correct rod length to use. Also, see Fig 1.

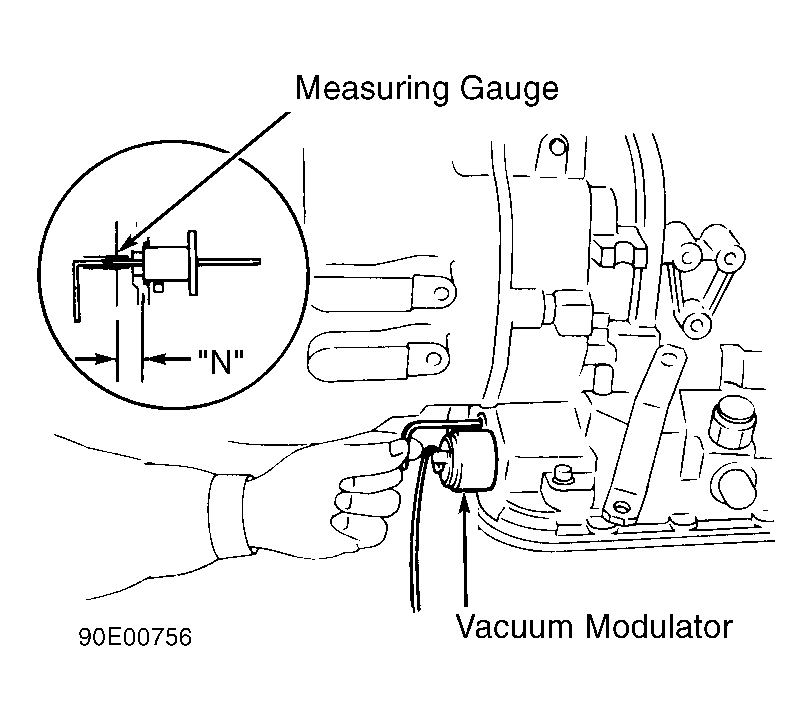

Fig 1: Adjusting Spectrum Modulator Rod Length

Courtesy of GENERAL MOTORS CORP.
