Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location | |
|---|---|---|

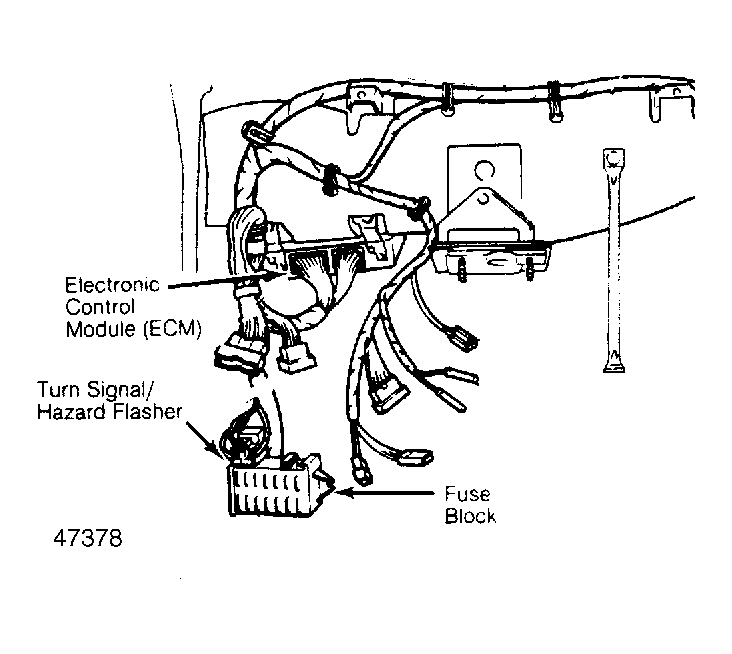

| Fuse Block | On left side of dash, below instrument cluster. See Figure . | |

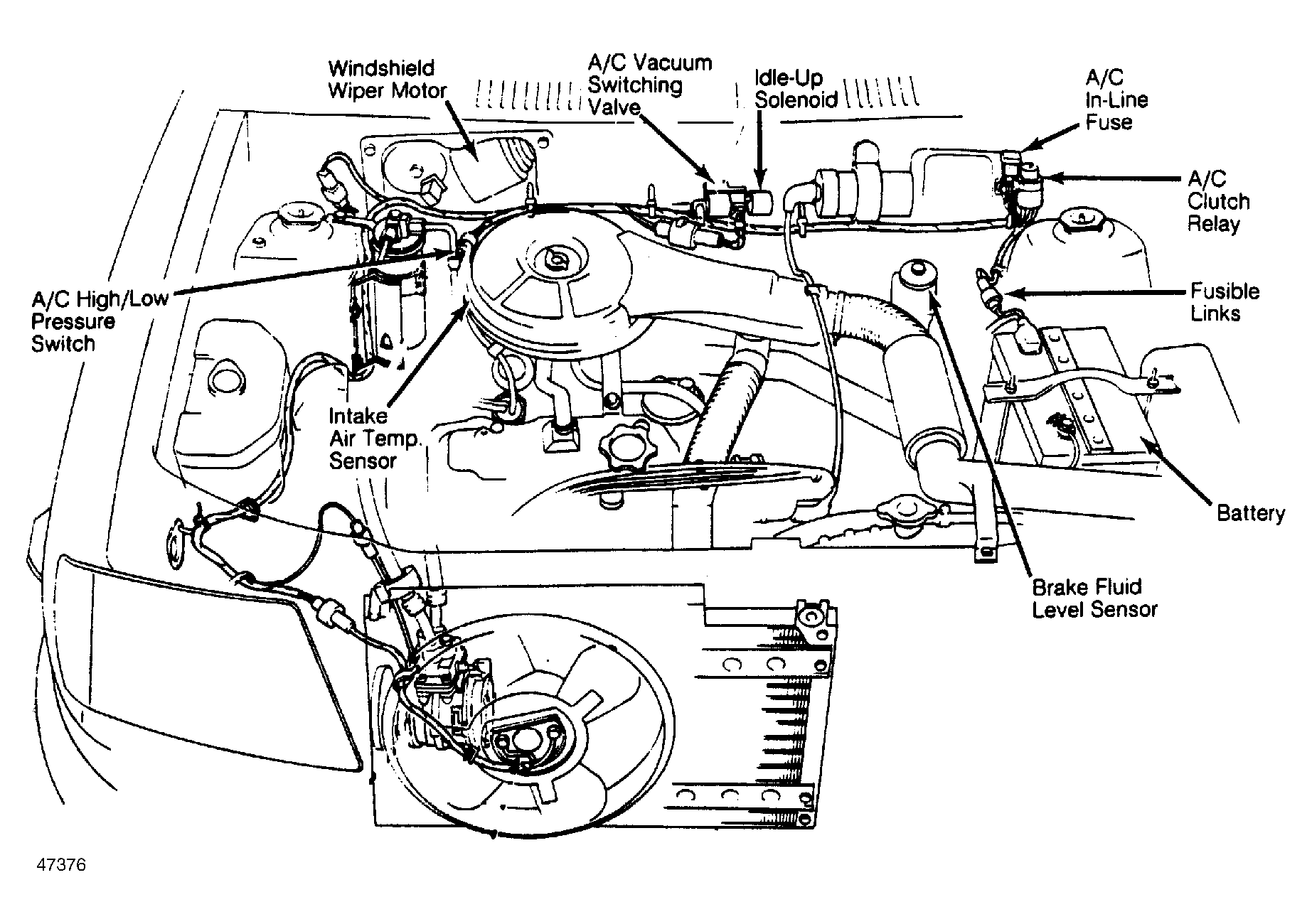

| Fusible Links | On battery positive terminal. See Figure . | |
| In-Line Fuse | ||
| A/C | On left rear corner of engine compartment. See Figure . | |

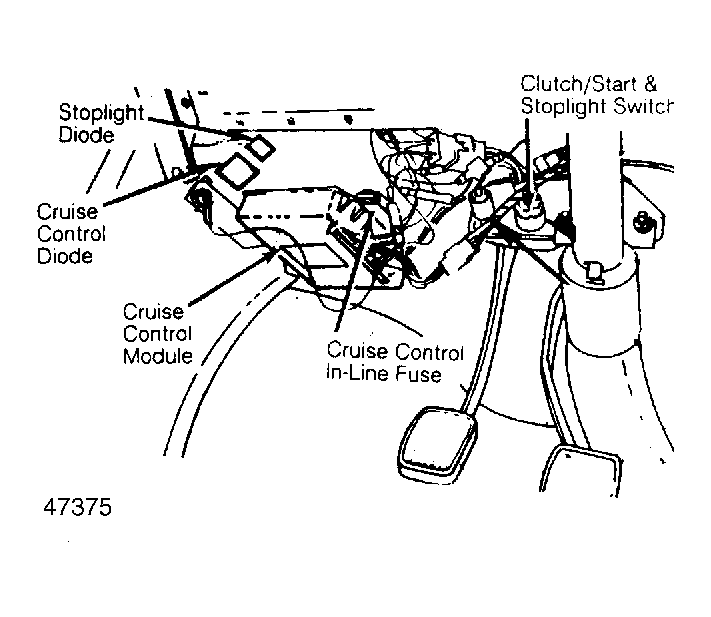

| Cruise Control | On left side of dash, taped to cruise control module. See Figure . | |
