Service Indicator & Warning Lights: Notes

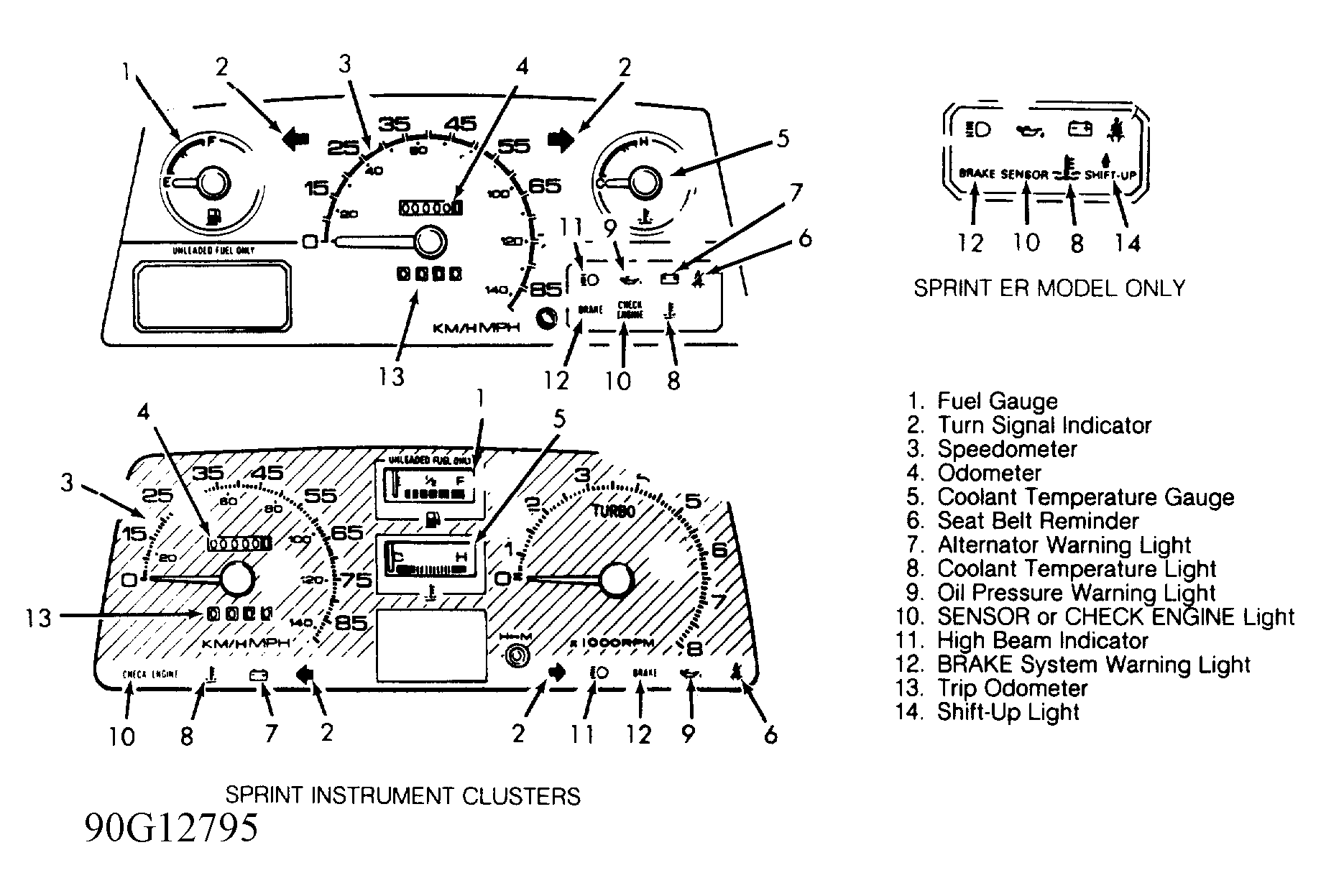

Fig 1: Dash Gauges & Warning Lights (Sprint)
G90G12795Courtesy of GENERAL MOTORS CORP.

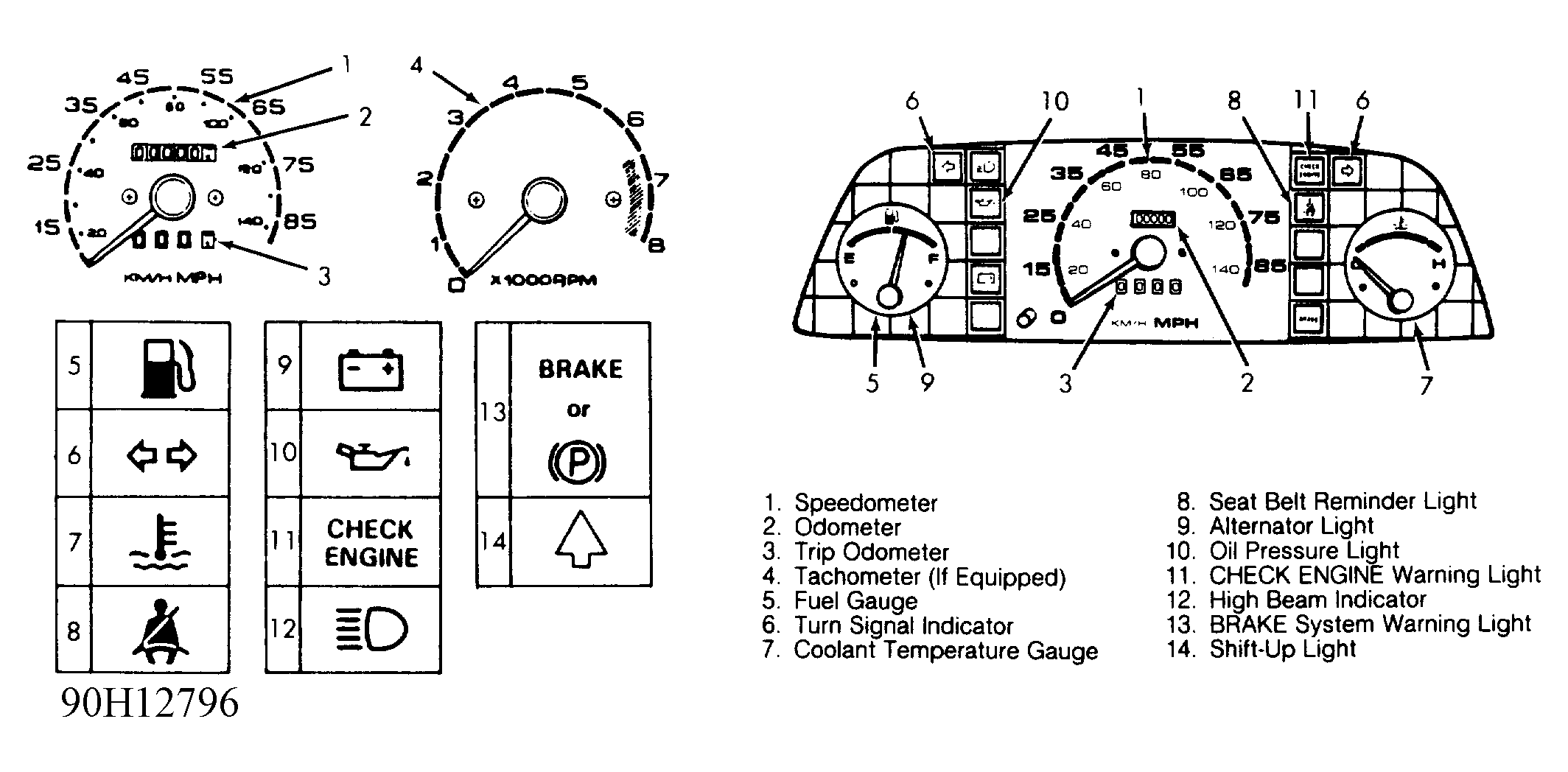

Fig 2: Dash Gauges & Warning Lights (Metro)
G90H12796Courtesy of GENERAL MOTORS CORP.
