Electronic/Powertrain Control Module (ECM/PCM)

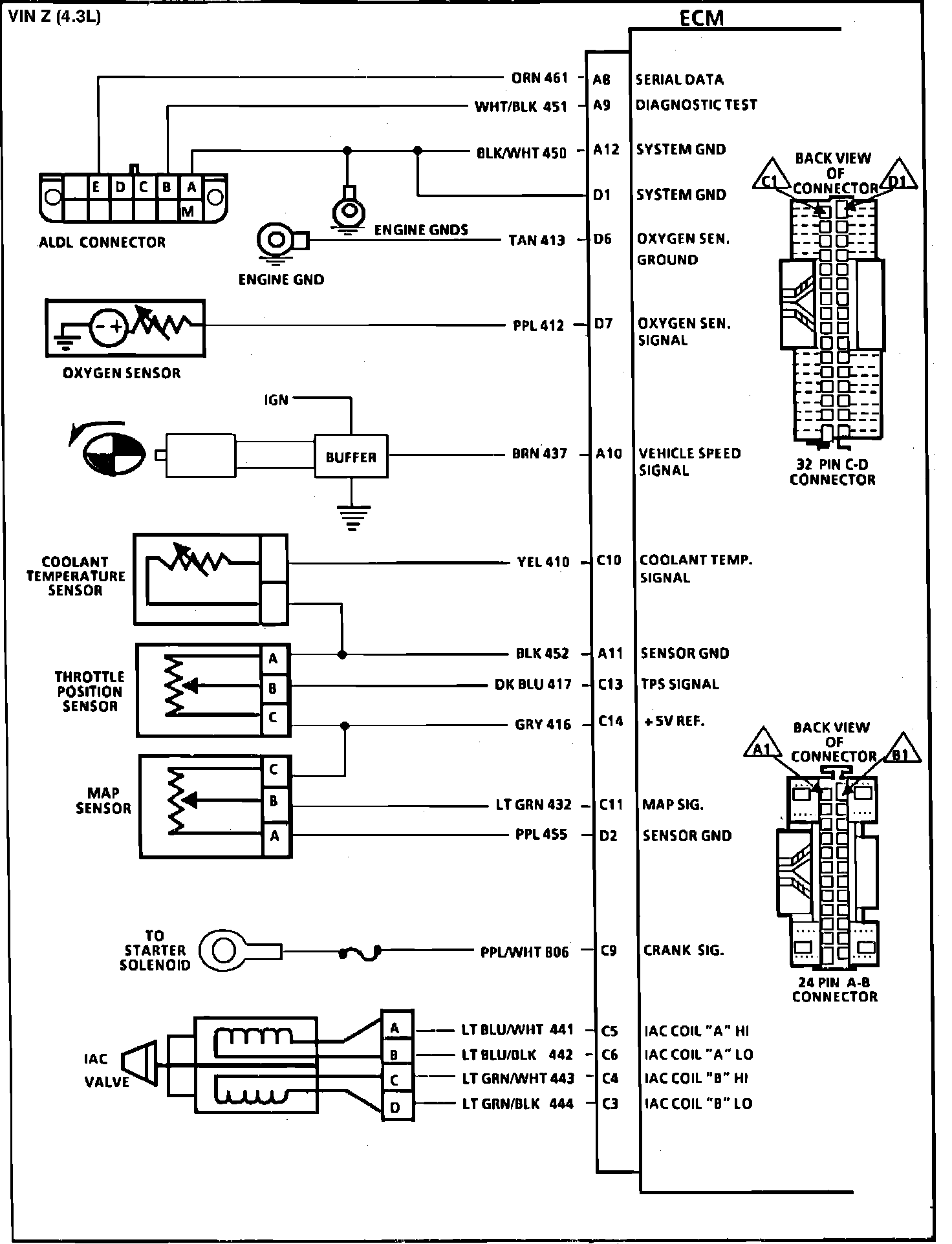

Fig. 088 ECM Wiring Diagrams (1 of 3):

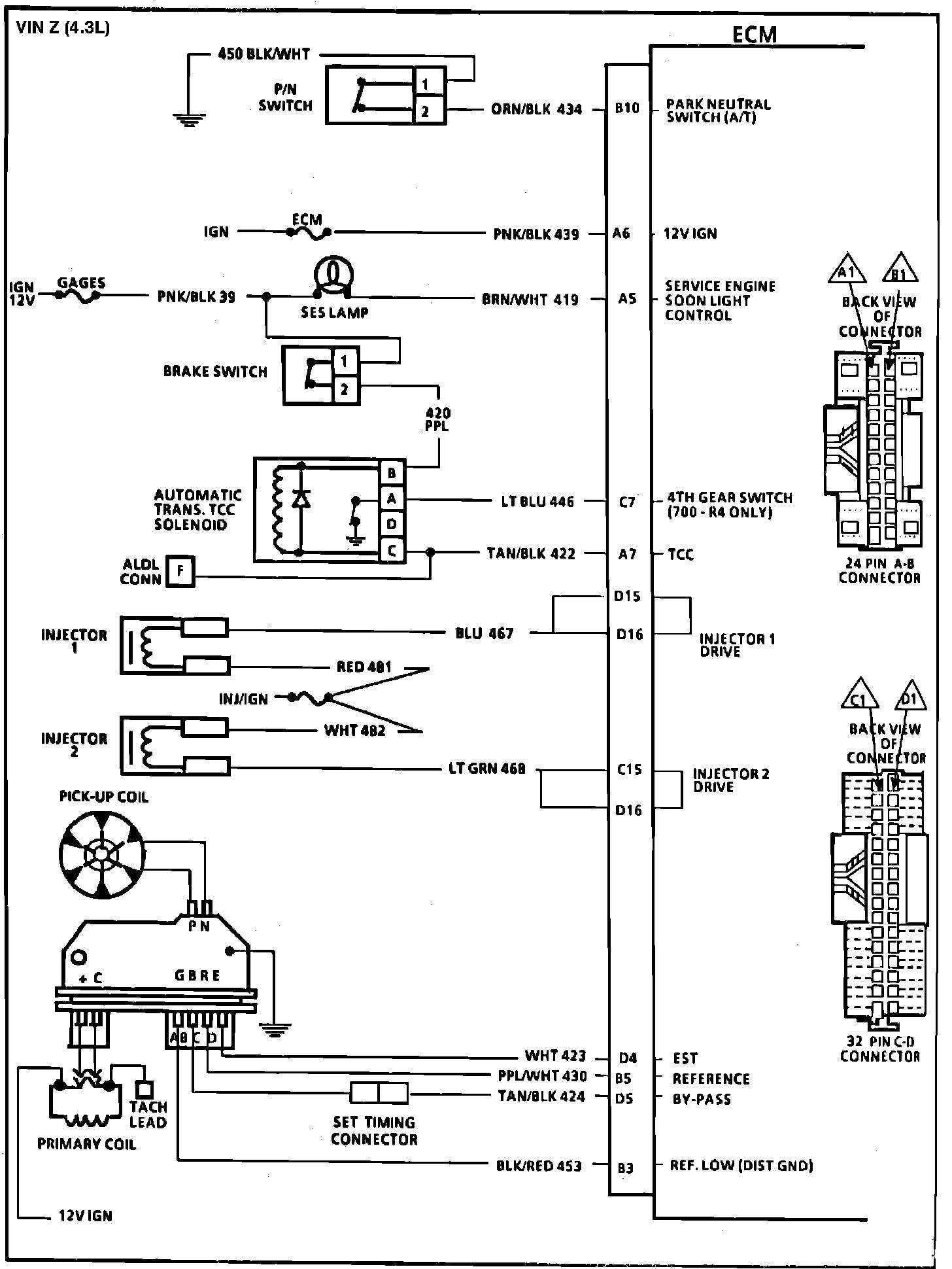

Fig. 089 ECM Wiring Diagrams (2 of 3):

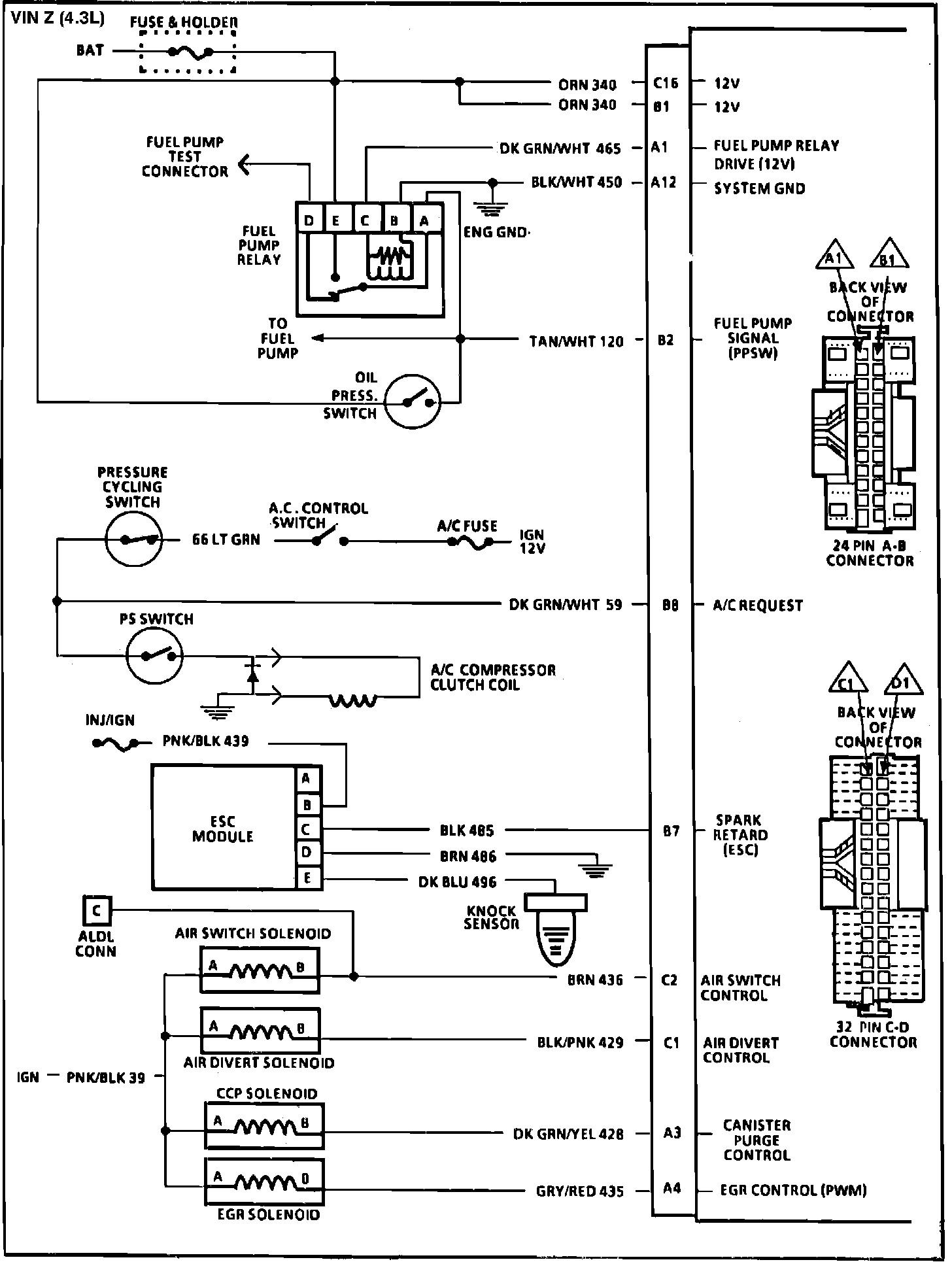

Fig. 090 ECM Wiring Diagrams (3 of 3):
