A/C Compressor Control Relay

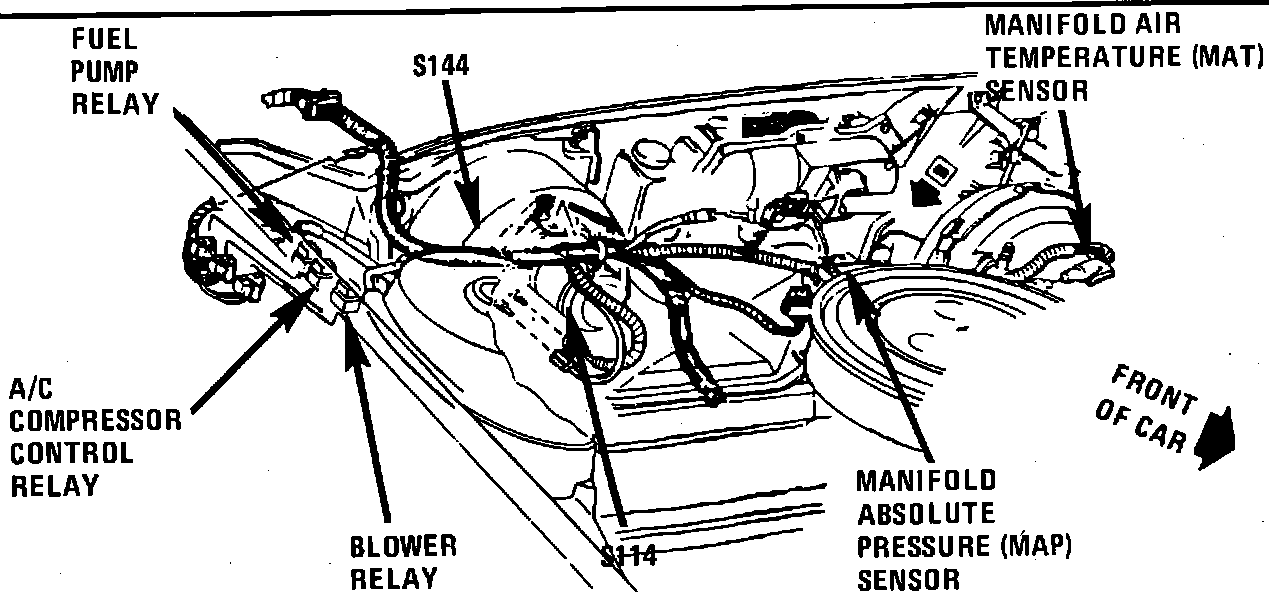

Rear Of Engine Compartment.:




RH Rear Side Of Engine Compartment

Applicable to: Cavalier, Firenza & Sunbird w/4-121/2.0L VIN K Engine
