System Specifications

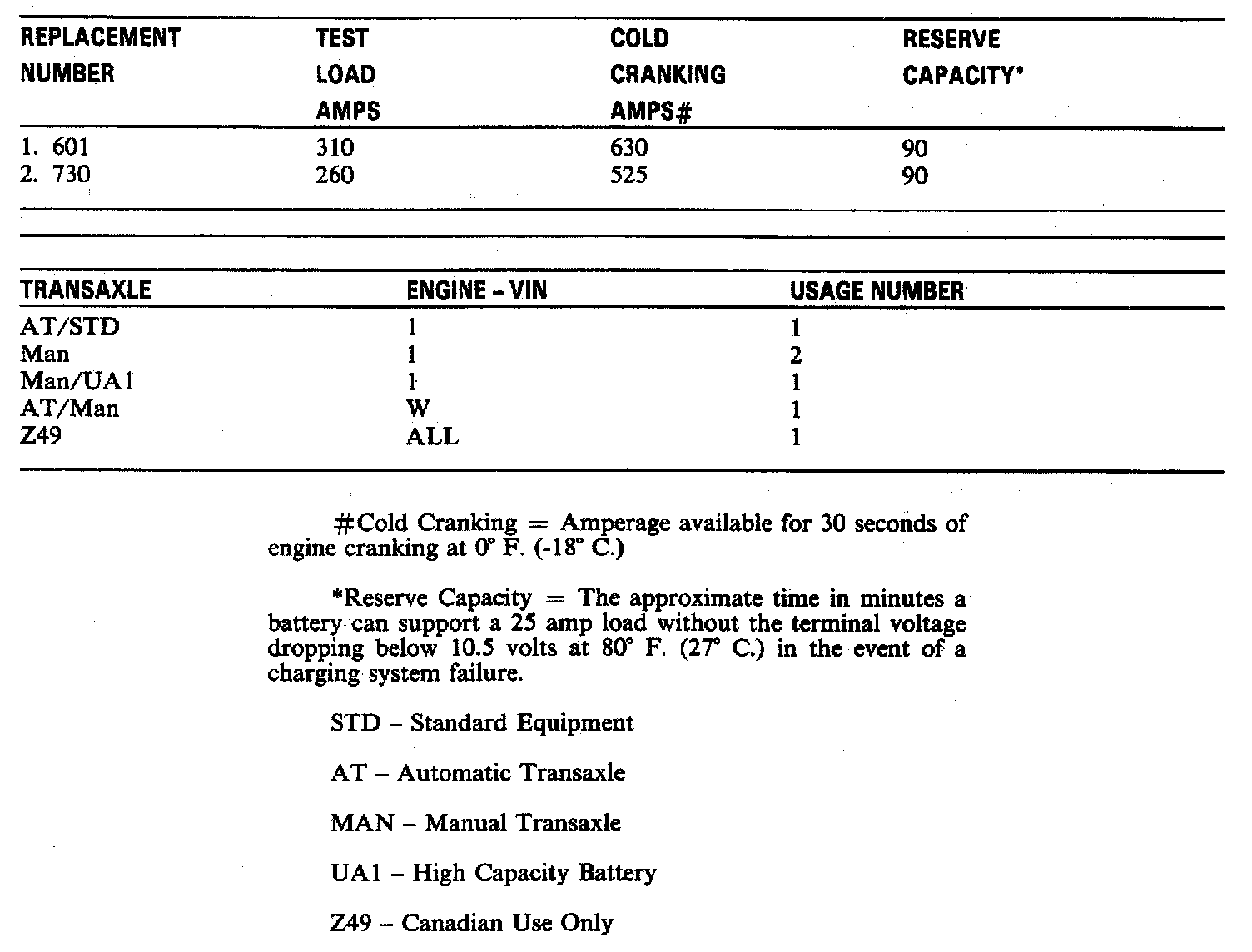

BATTERY SPECIFICATIONS





ALTERNATOR SPECIFICATIONS





ALTERNATOR TORQUE SPECIFICATIONS

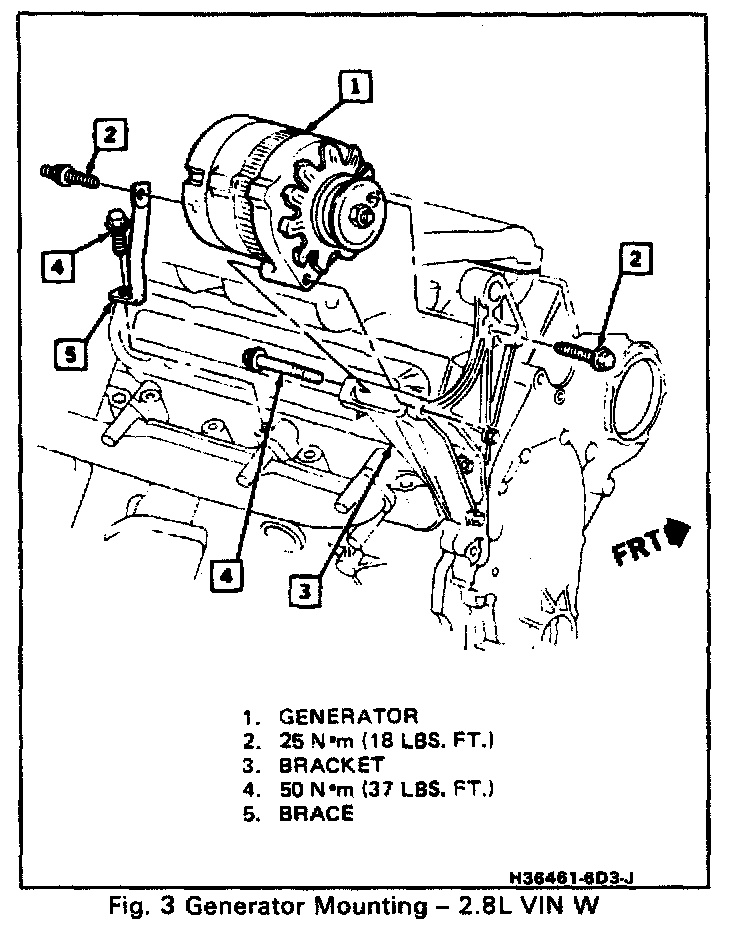

2.8L VIN W:

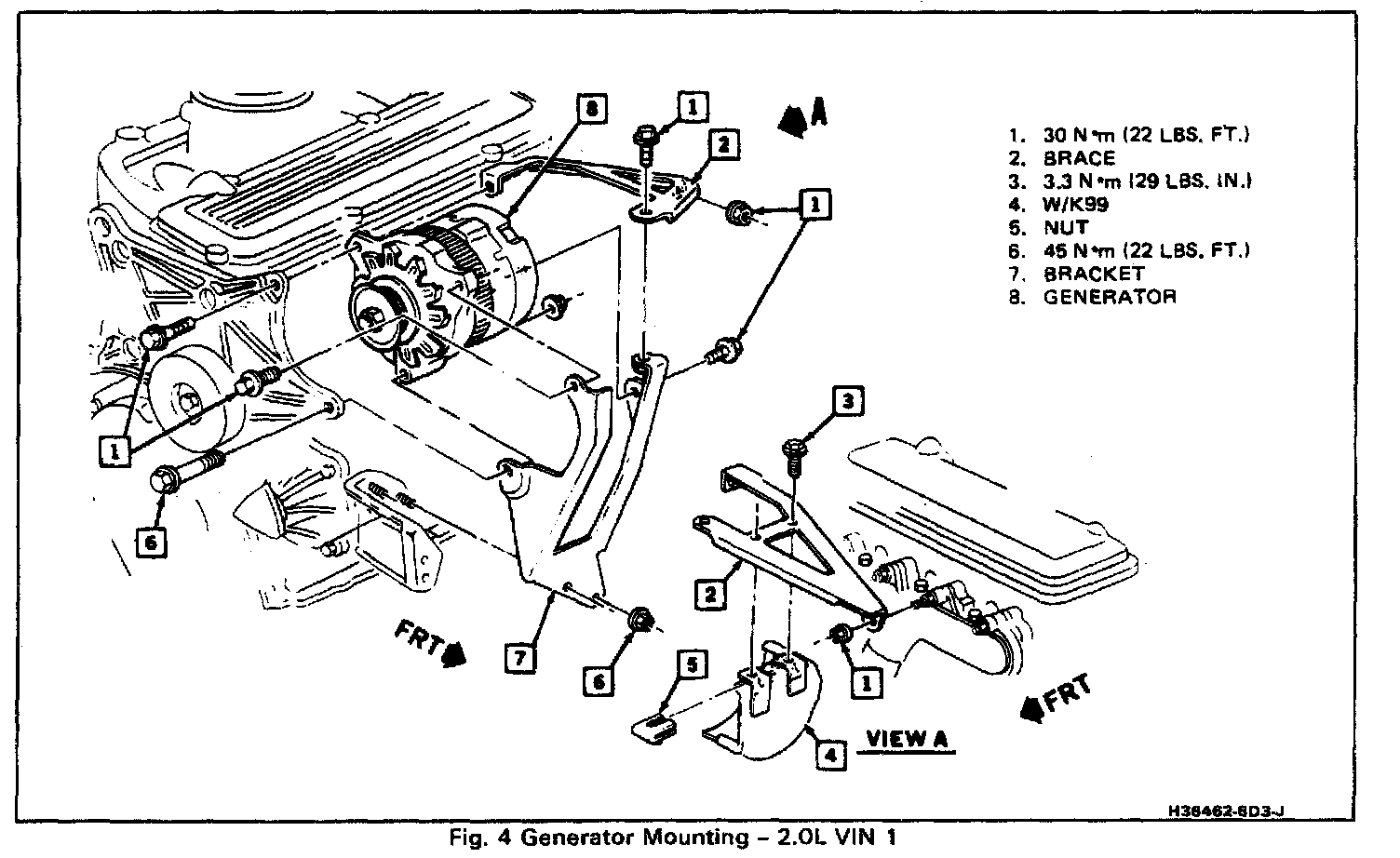

2.0L VIN 1:





STARTER SPECIFICATIONS

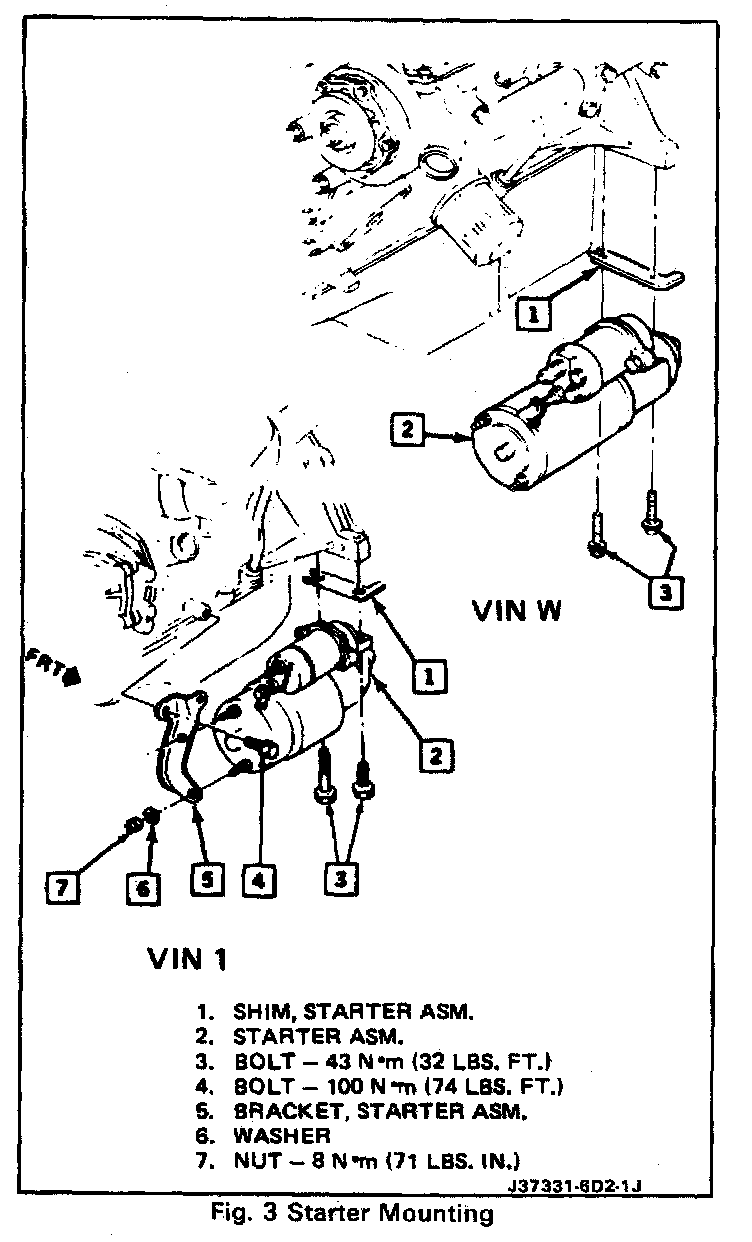

STARTER TORQUE SPECIFICATIONS
