Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location | |
|---|---|---|

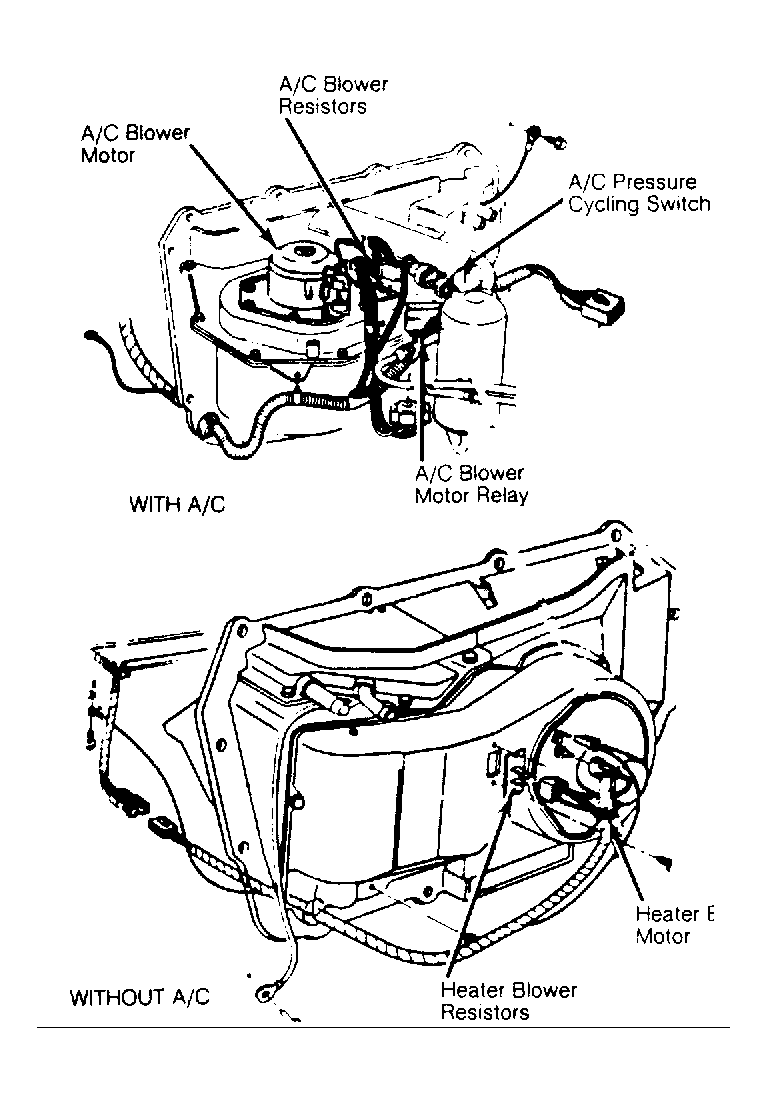

| A/C-Heater Blower Motor Resistors | On evaporator case, in engine compartment. See Figure . | |

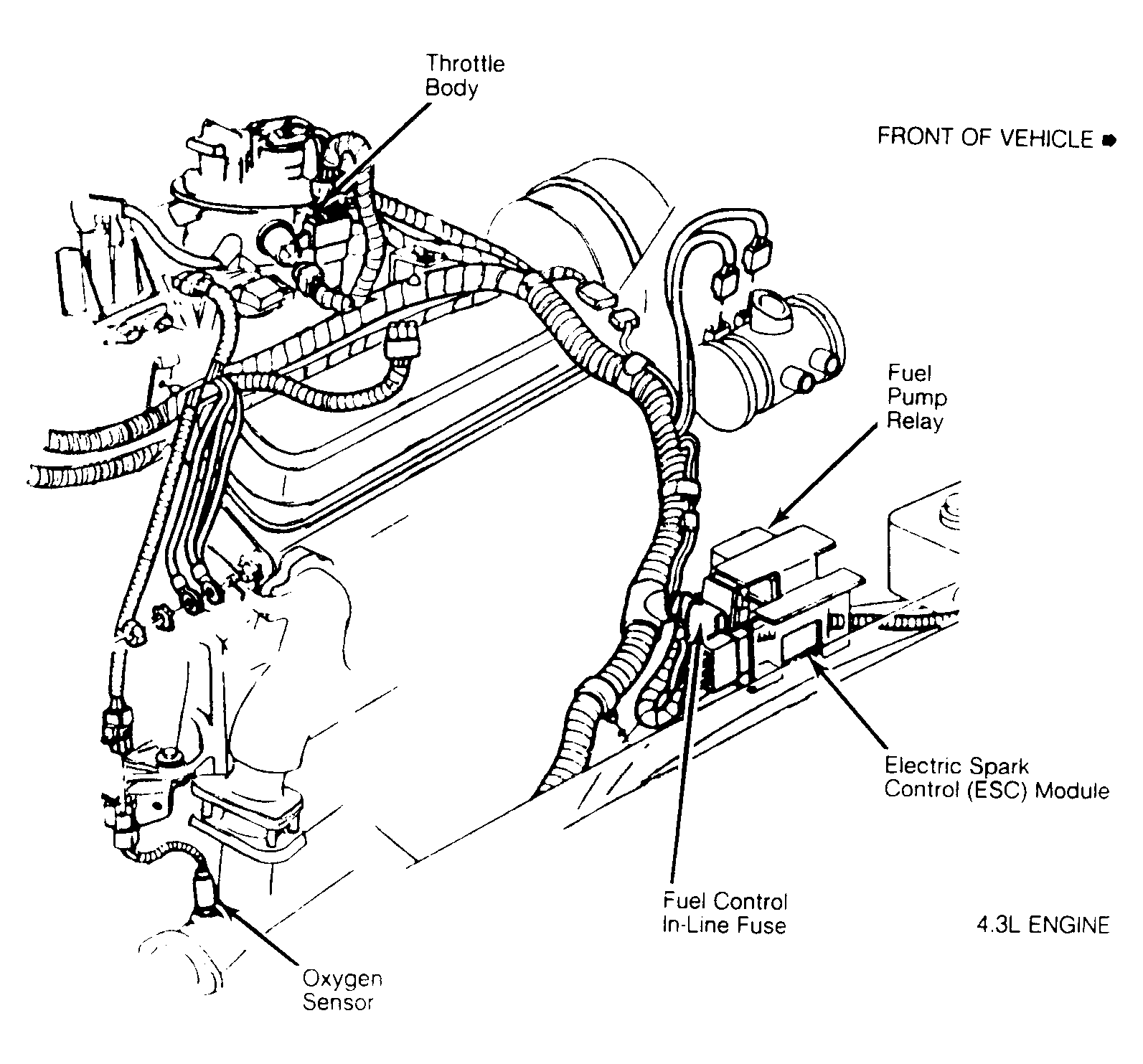

| Fuel Control In-Line Fuse (EFI) | On bracket, next to ESC module. See Figure & 6. | |

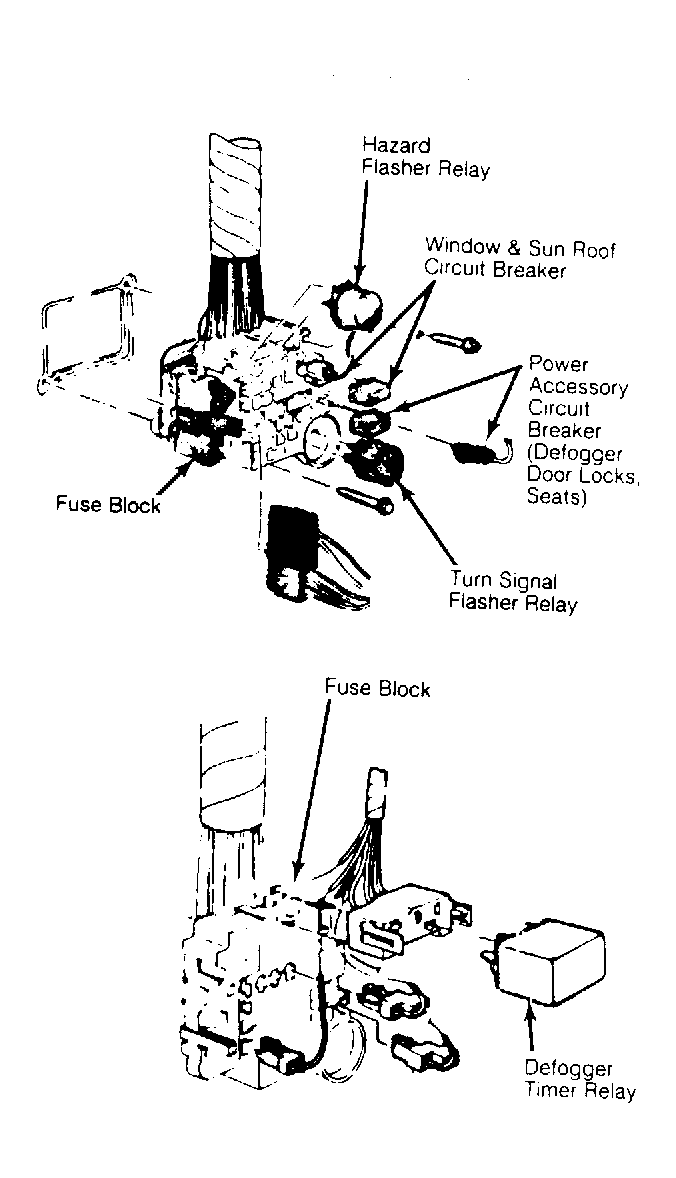

| Fuse Block | Under left side of dash. See Figure . | |
| Fusible Links | ||
| A (Red) A/C Blower | At starter solenoid. | |
| B (Red) Light Switch | At starter solenoid. | |
| E (Green) Turbo Cooling Fan | At starter solenoid. | |
| J (Orange) Turbo ECM | Next to battery. | |
| Power Accessory Circuit Breaker | Above turn signal flasher relay, in fuse block. See Figure . | |
| Theft Deterrent In-Line Fuses | Taped to wiring harness, right of glove box. | |
| Window & Sun Roof Circuit Breaker | At top right corner of fuse block, second row. See Figure . | |
