EFI Turbo: Adjustments

See appropriate TUNE UP article in this manual.

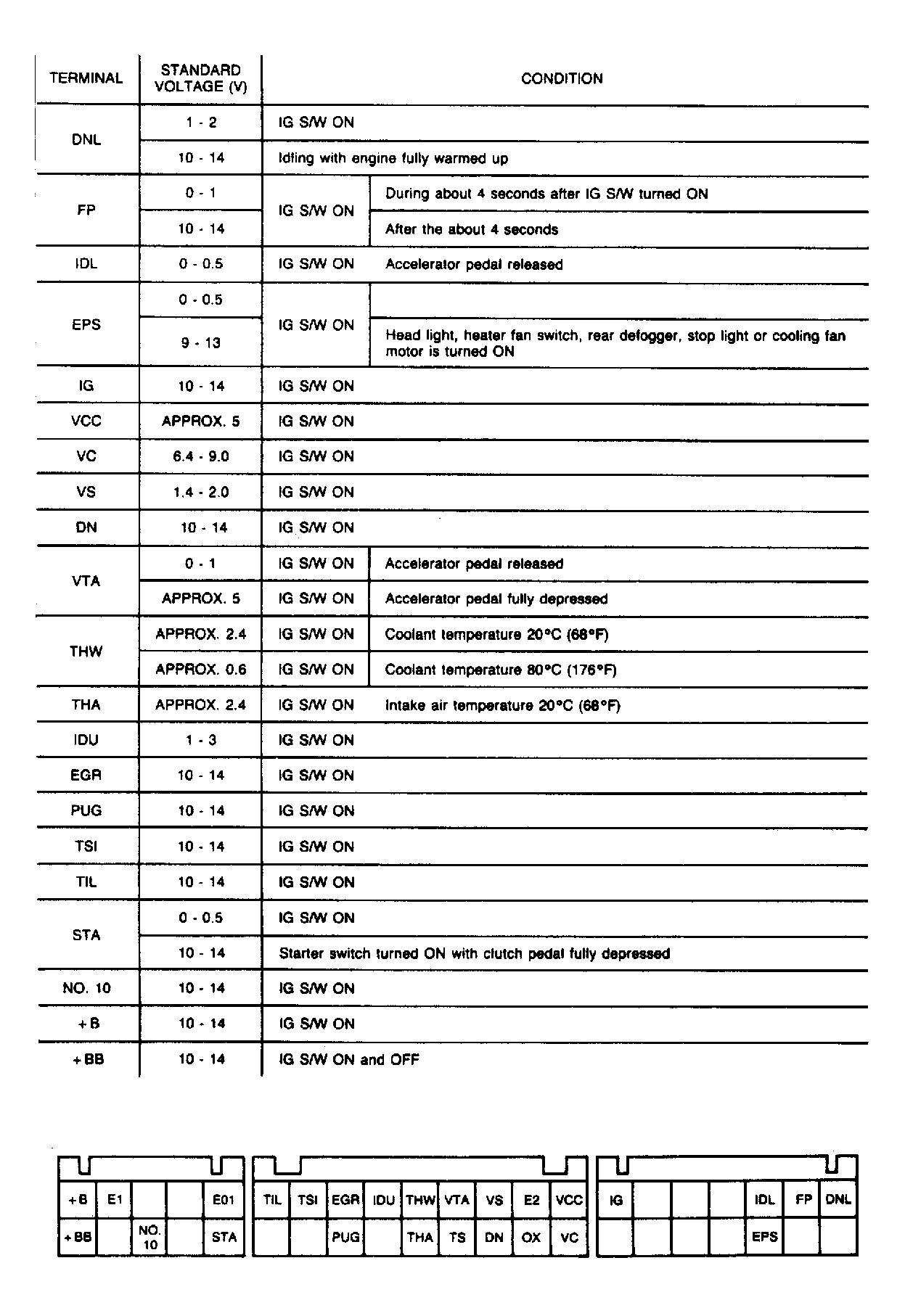

Fig 1: ECM Connector Identification & Test Values
G94574Courtesy of GENERAL MOTORS
