Ignition System - Electronic (Turbo): Overhaul: Distributor

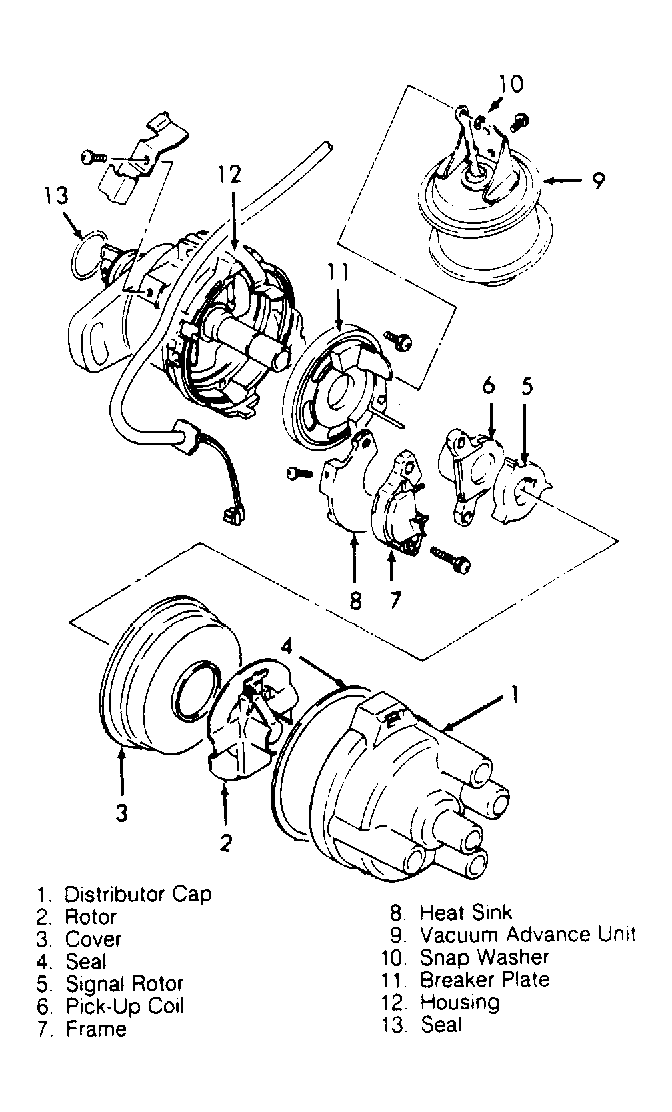

Fig 1: Exploded View of Sprint Turbo Distributor
G94221Courtesy of GENERAL MOTORS CORP.
