Ignition Cable: Locations

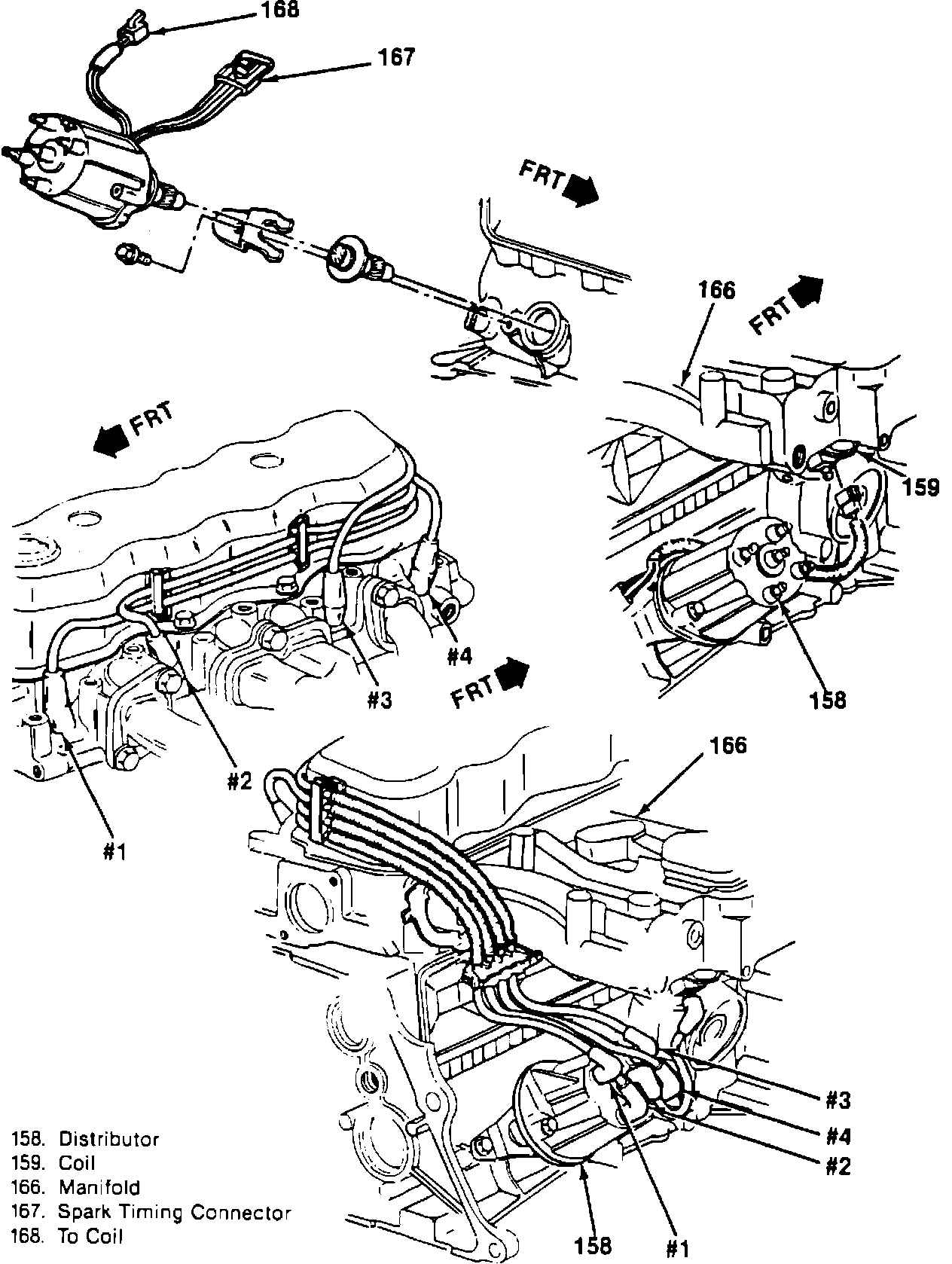

Spark Plug Wire Routing:







158 = DISTRIBUTOR.
159 = COIL.
166 = MANIFOLD.
167 = SPARK TIMING CONNECTOR.
168 = TO COIL.
