System Diagnosis

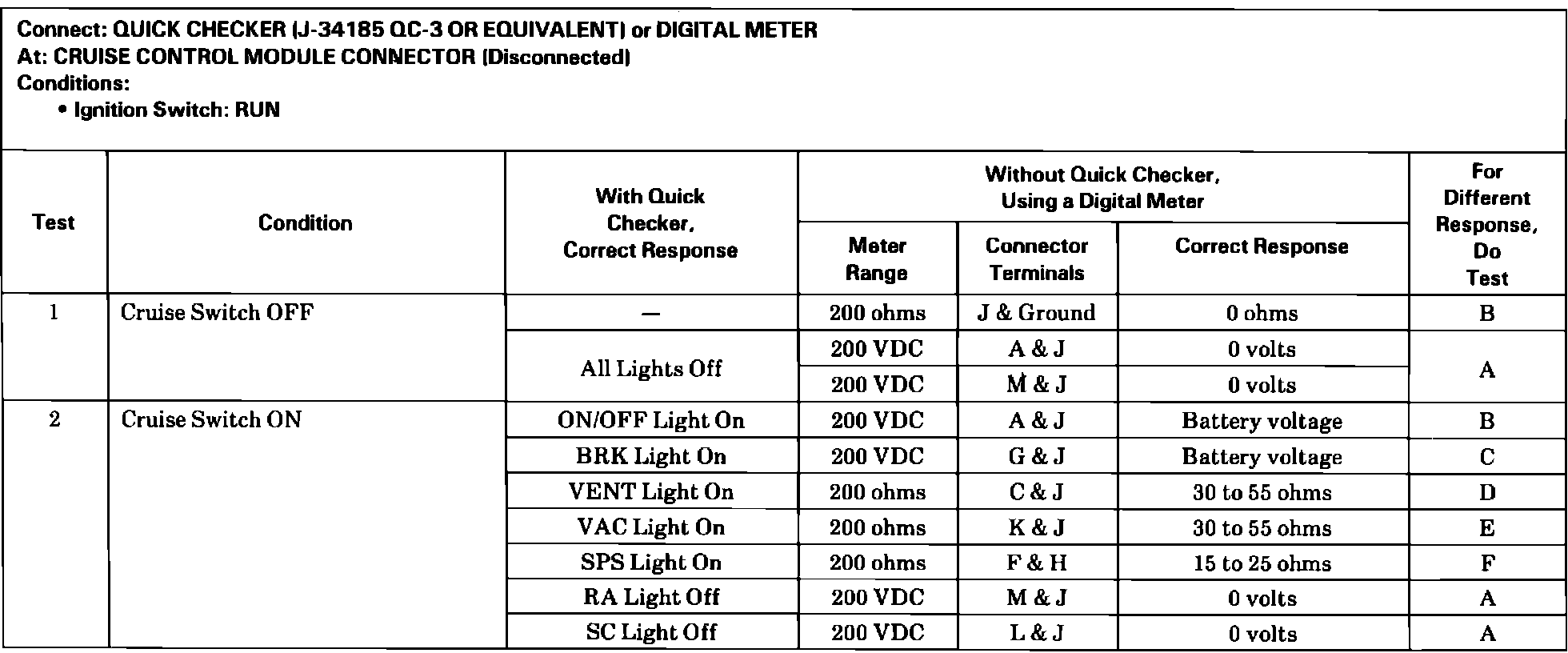

Fig. 5 Cruise Control System Diagnosis Chart (Part 1 Of 2):

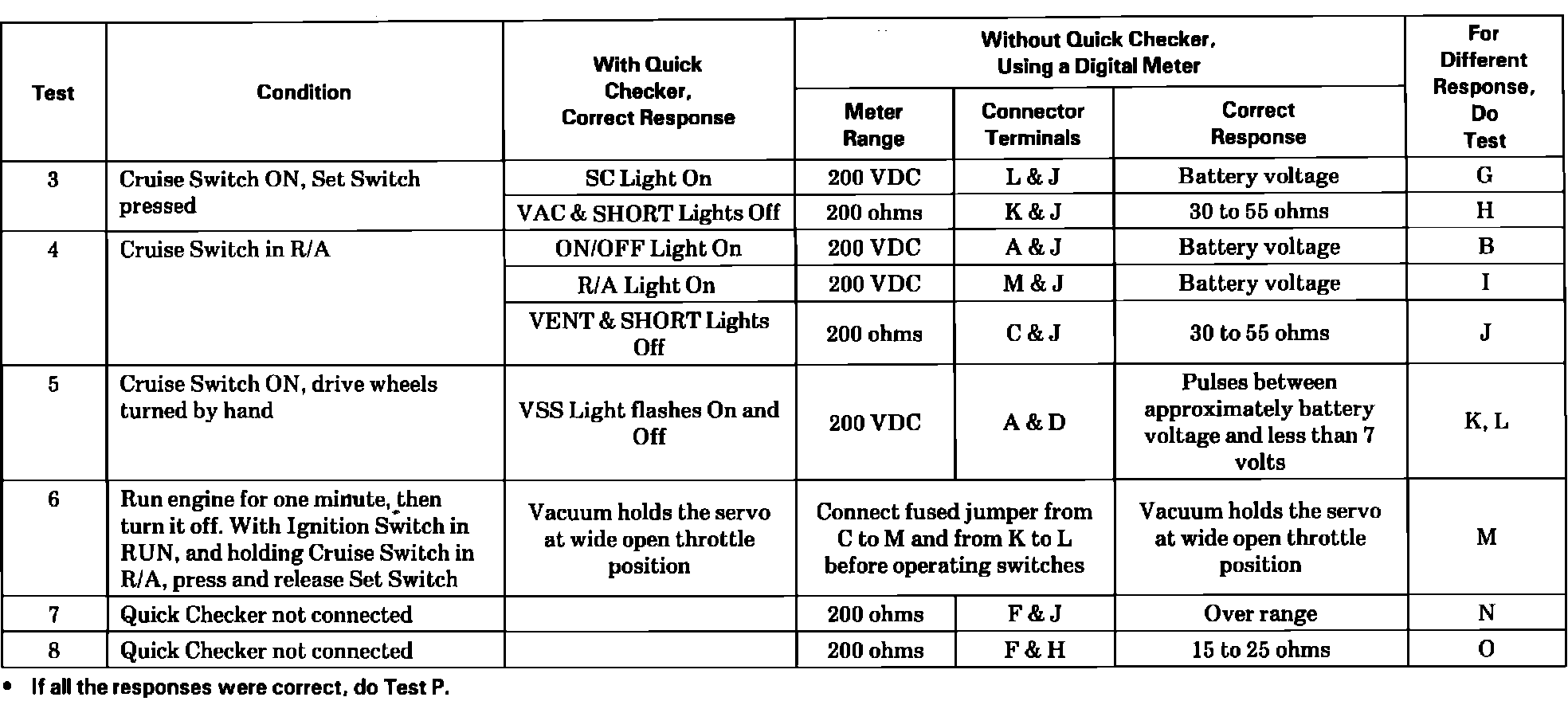

Fig. 5 Cruise Control System Diagnosis Chart (Part 2 Of 2):
