Battery Junction Block

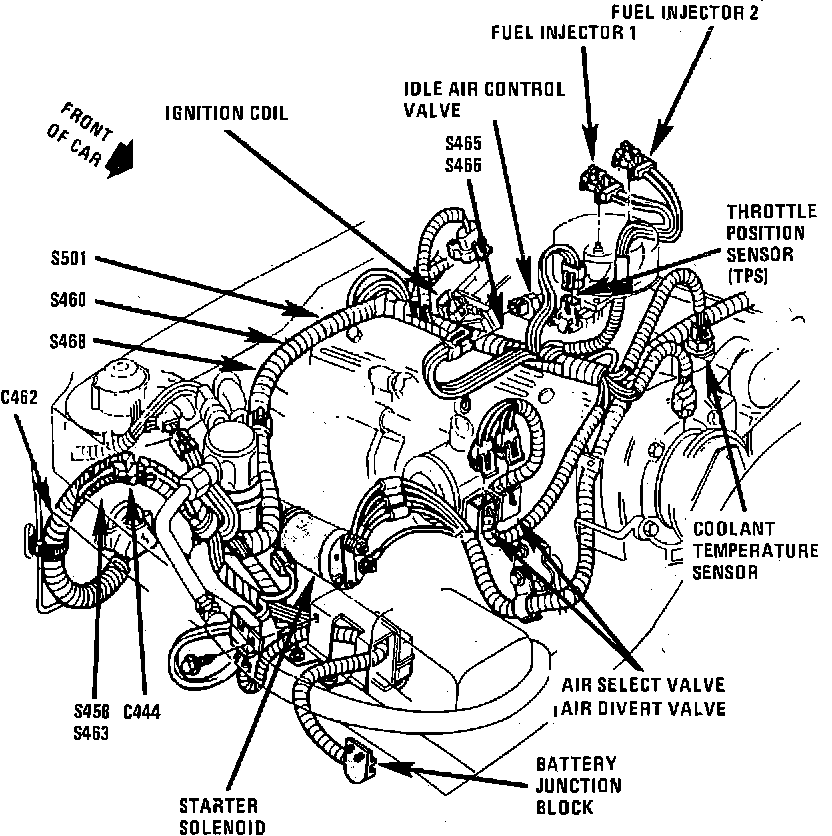

RH Side Of Engine.:




Behind Battery, At RH Fender Apron

Applicable to: Caprice & Safari w/V6-262/4.3L TBI

RH Side Of Engine.:




Behind Battery, At RH Fender Apron

Applicable to: Caprice & Safari w/V8-305/5.0L TBI

RH Inner Fender Components.:




Behind Battery, At RH Fender Apron

Applicable to: Caprice & Safari w/V6-262/4.3L
