System Diagnosis

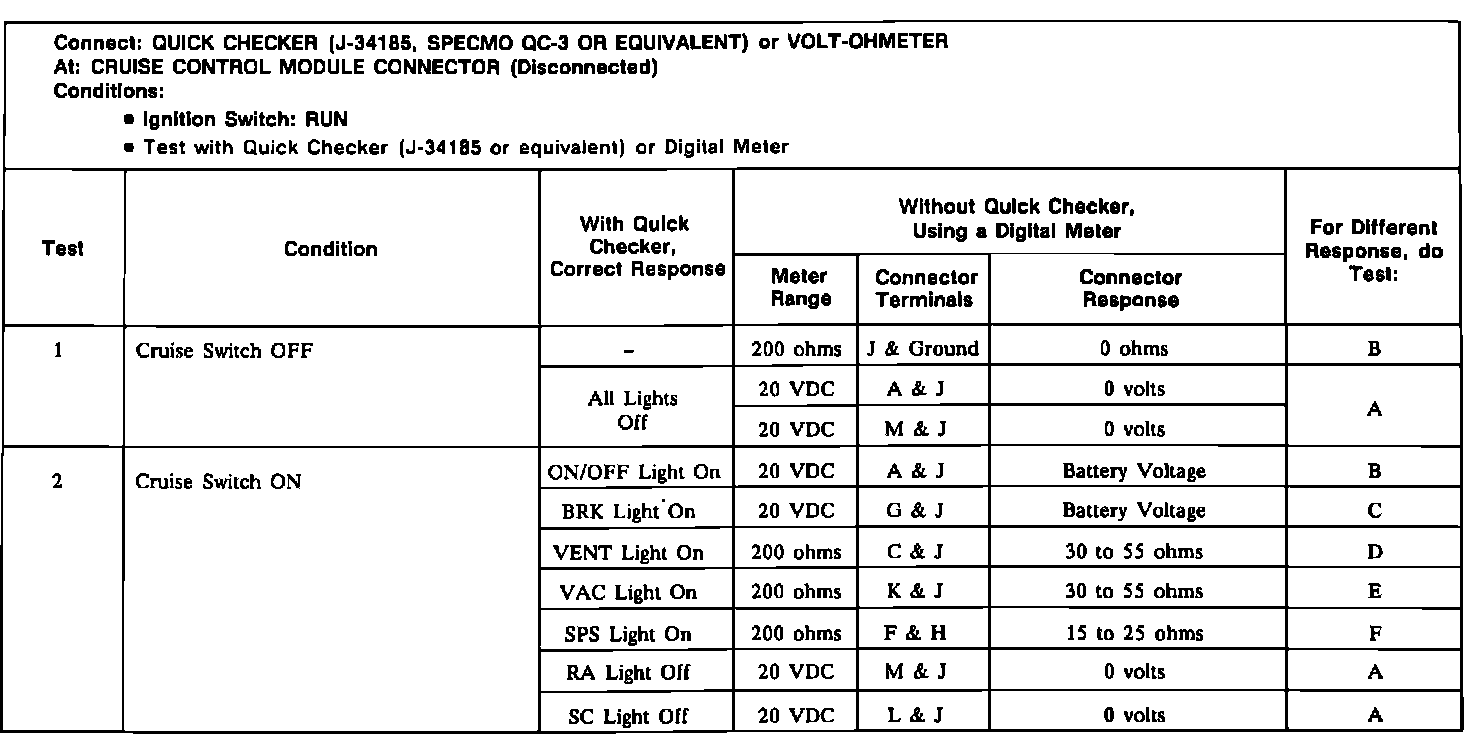

Fig. 42 Cruise Control System Diagnostic Chart (Part 1 Of 2):

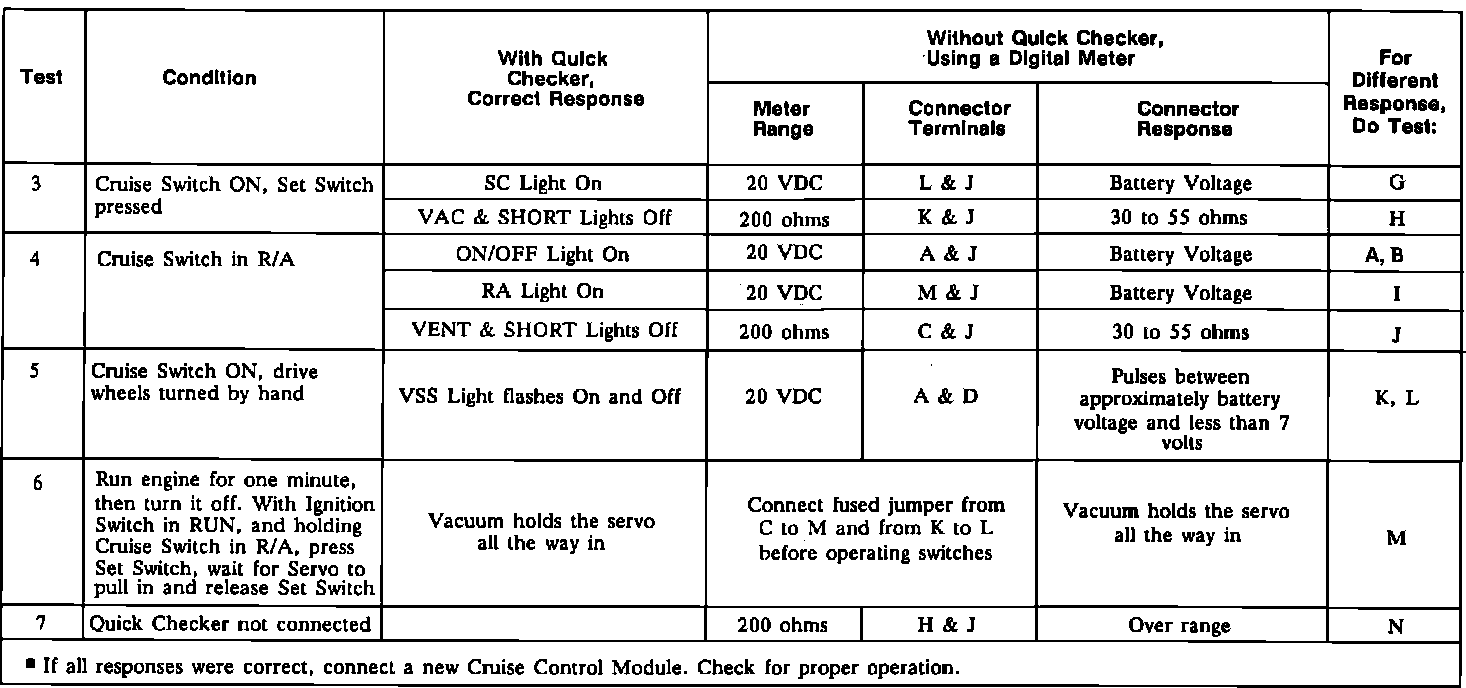

Fig. 42 Cruise Control System Diagnostic Chart (Part 2 Of 2):
