System Check - Compressor Controls

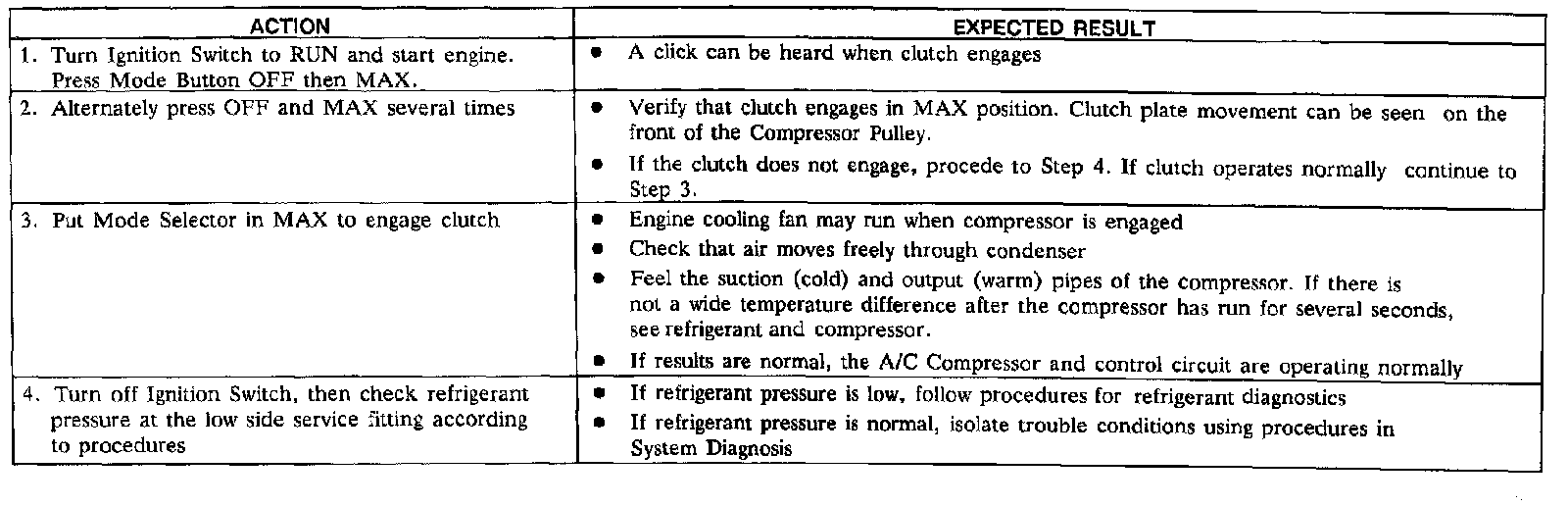

System Check Table:

SYSTEM CHECK TABLE Compressor Controls

^ Complete the A/C System Check under A/C System Diagnosis as a guide to normal operation of the entire A/C System and for references to diagnostic tests. Testing and Inspection
^ Use the System Check Table as a guide to normal A/C Compressor operation.
^ Refer to System Diagnosis when a result is not normal. Testing and Inspection
