Wiring Diagrams

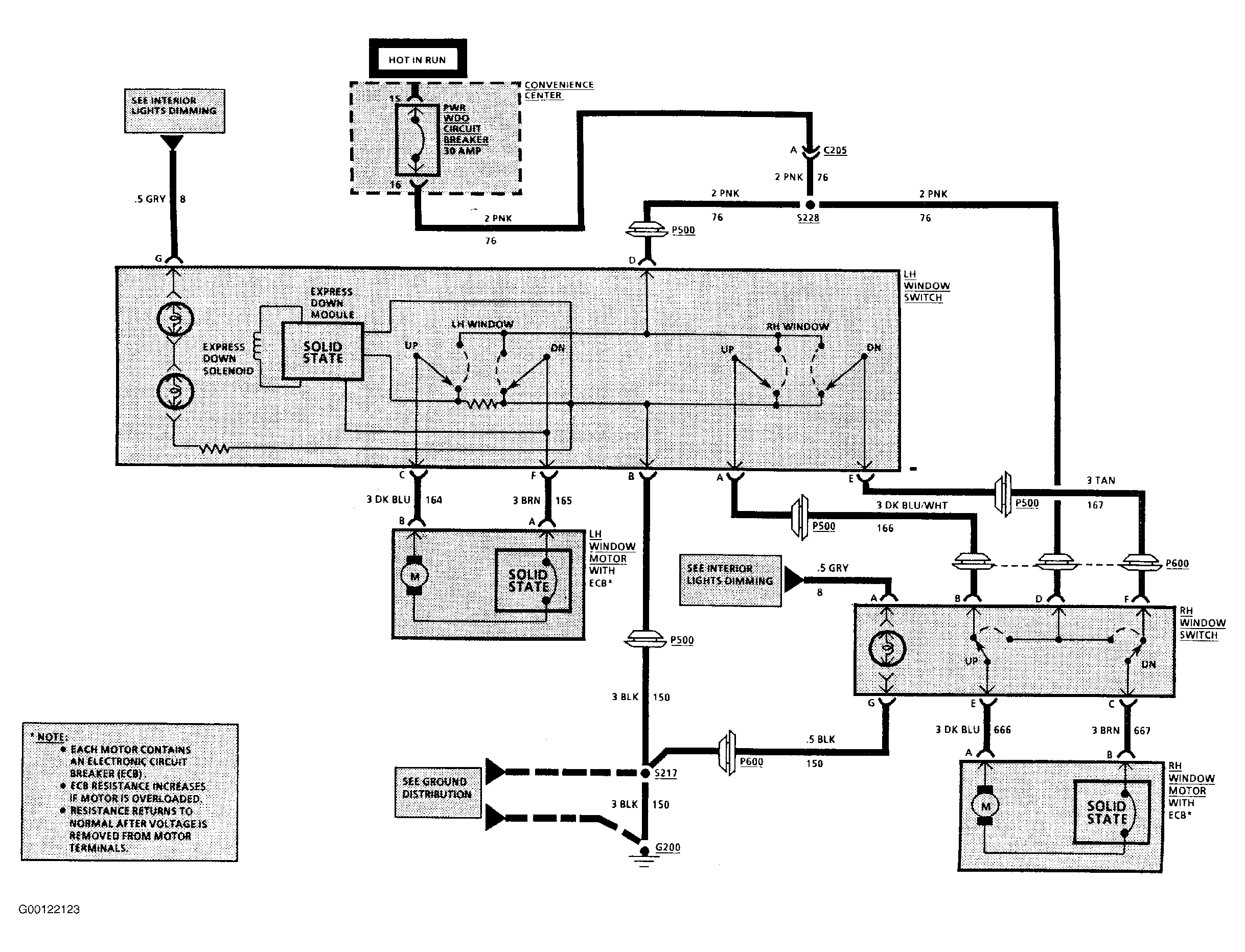

Fig 1: Power Windows Wiring Diagram (1991-94 APV, Lumina APV, Silhouette & Trans Sport)
G00122123Courtesy of GENERAL MOTORS CORP.
