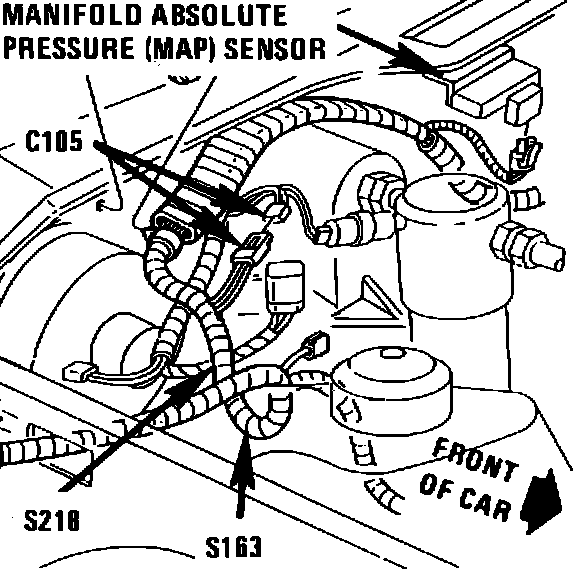

Manifold Pressure/Vacuum Sensor: Locations

RH Rear Of Engine Compartment.:




Engine Compartment Components.:





Rear RH Side Of Engine Compartment

Applicable to: 1992 3.1L/V6-192
