Armrest

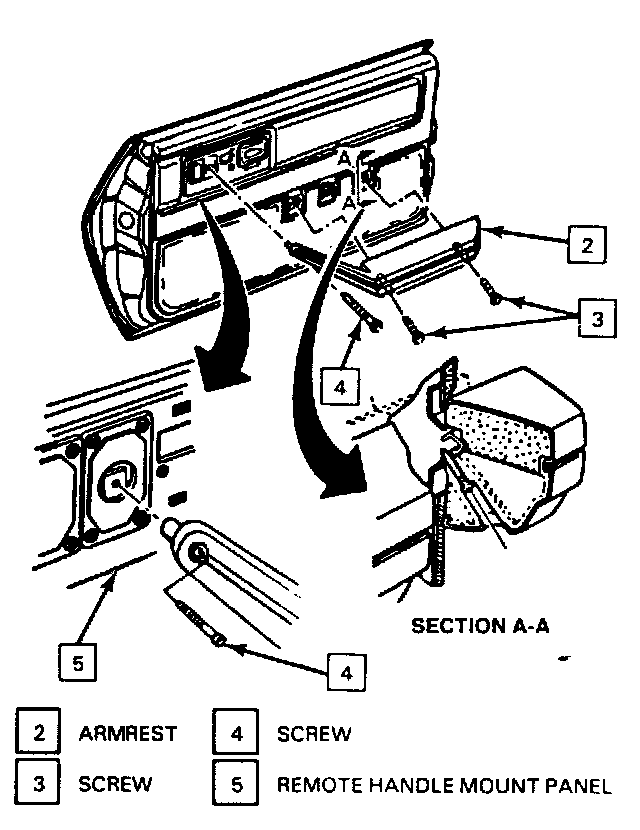

Armrest:






REMOVE OR DISCONNECT
1. Screws (3 and 4) retaining armrest (2) to the door trim panel, the armrest hanger plate, and the trim pad switch and remote handle mount panel (5).
2. Armrest (2) from the door trim panel and the trim pad switch and remote handle mount panel (5).

INSTALL OR CONNECT
1. Armrest (2) to the door trim panel and the trim pad switch and remote handle mount panel (5).
2. Screws (3 and 4) tighten to 5 N.m (44 lb in).
