System Specifications

Cylinder Head Bolts

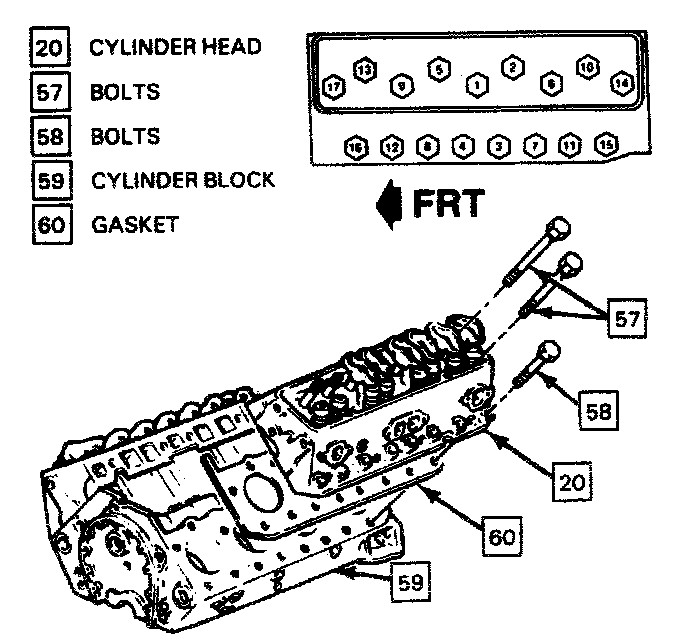

In the sequence shown (refer to image), and in three passes:

Torque bolts to 92 N.m (68 lb. ft.)
