Fuel Pump/ECM In-Line Fuse

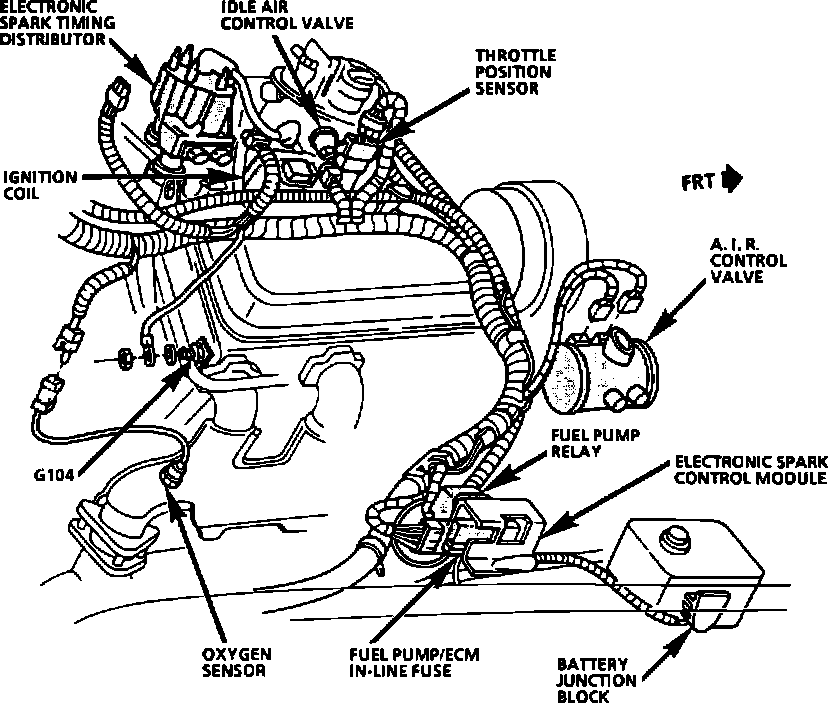

Engine Component Location.:




RH Rear Engine Compartment.:




Attached To Multi-Use Relay Bracket, Rear RH Side Of Engine Compartment

Applicable to: 1992 Caprice w/4.3L/V6-262
