Direct Ignition System

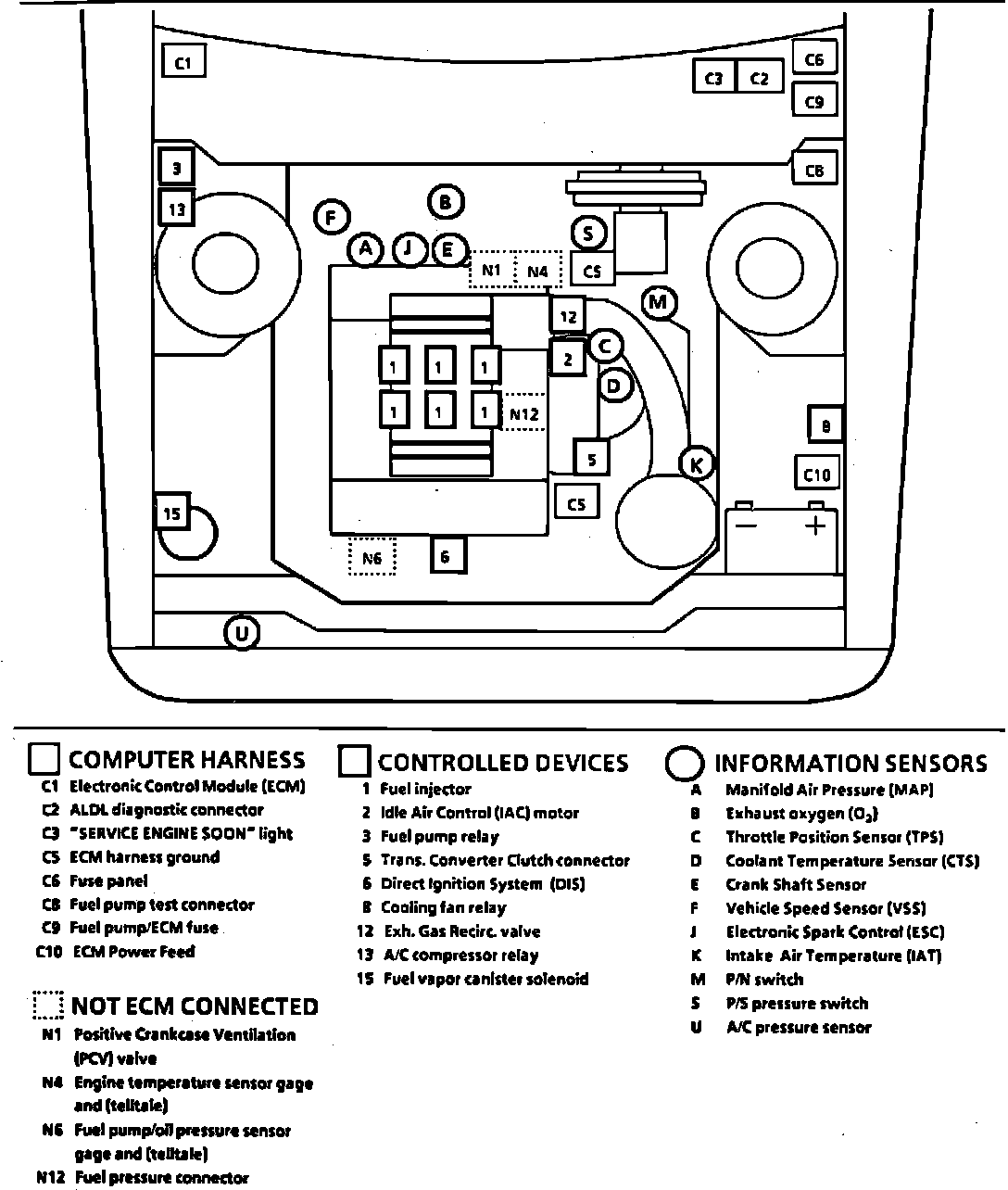

Front Of 3.1L:

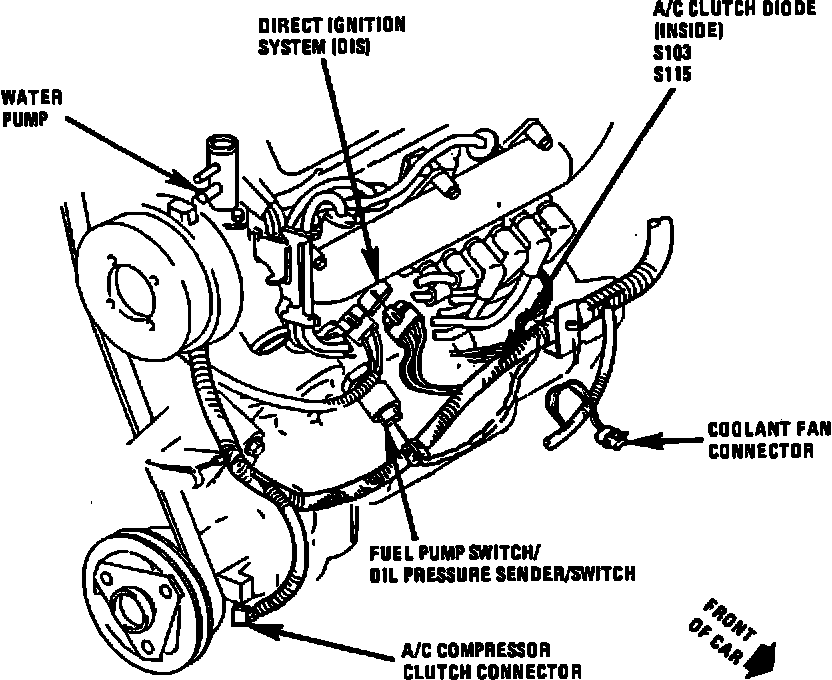

Engine Component Locations.:






Front Of Engine, Below Exhaust Manifold
