Abs/ASR Functional Check

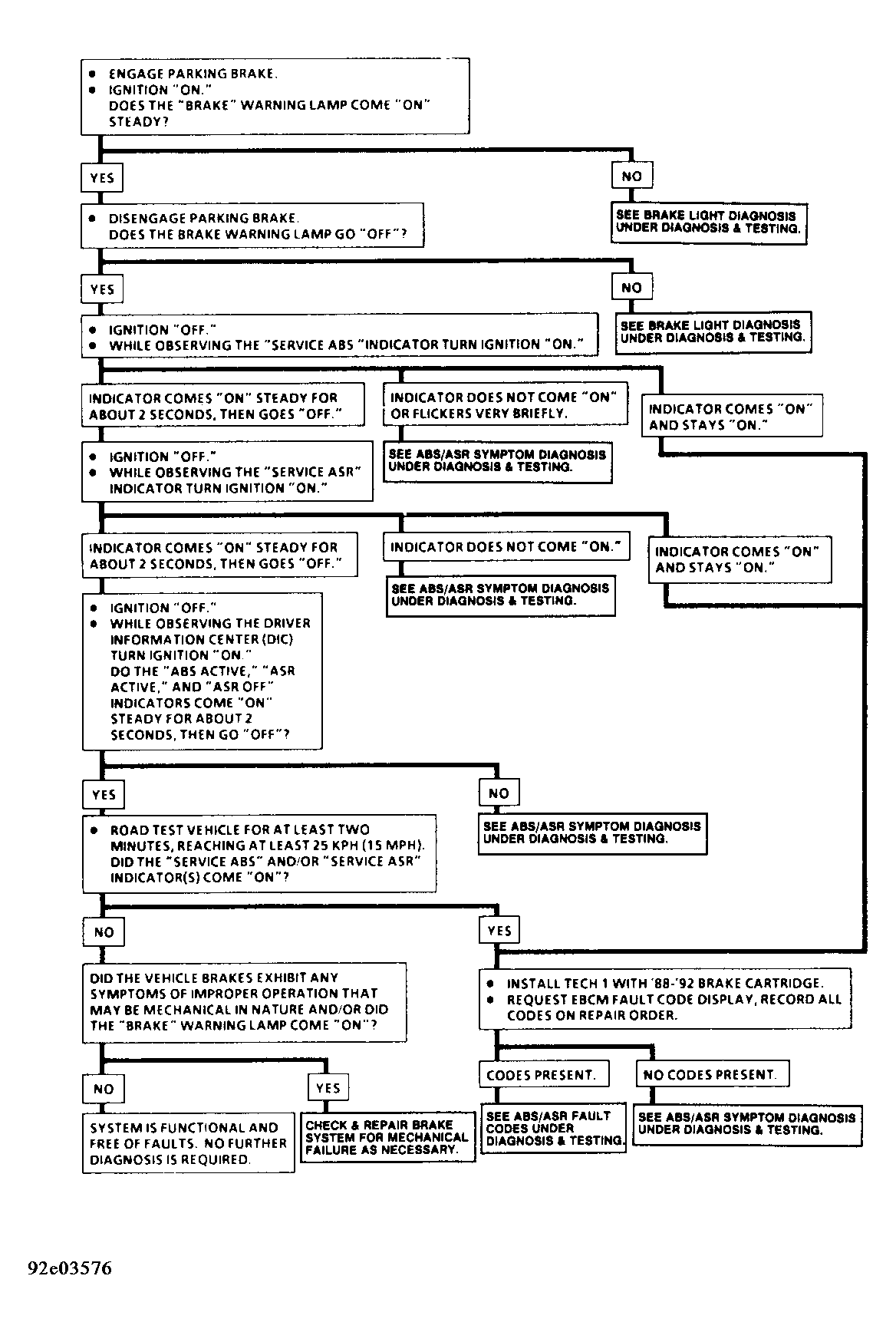

Fig 1: ABS/ASR Functional Check
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
