Sedan

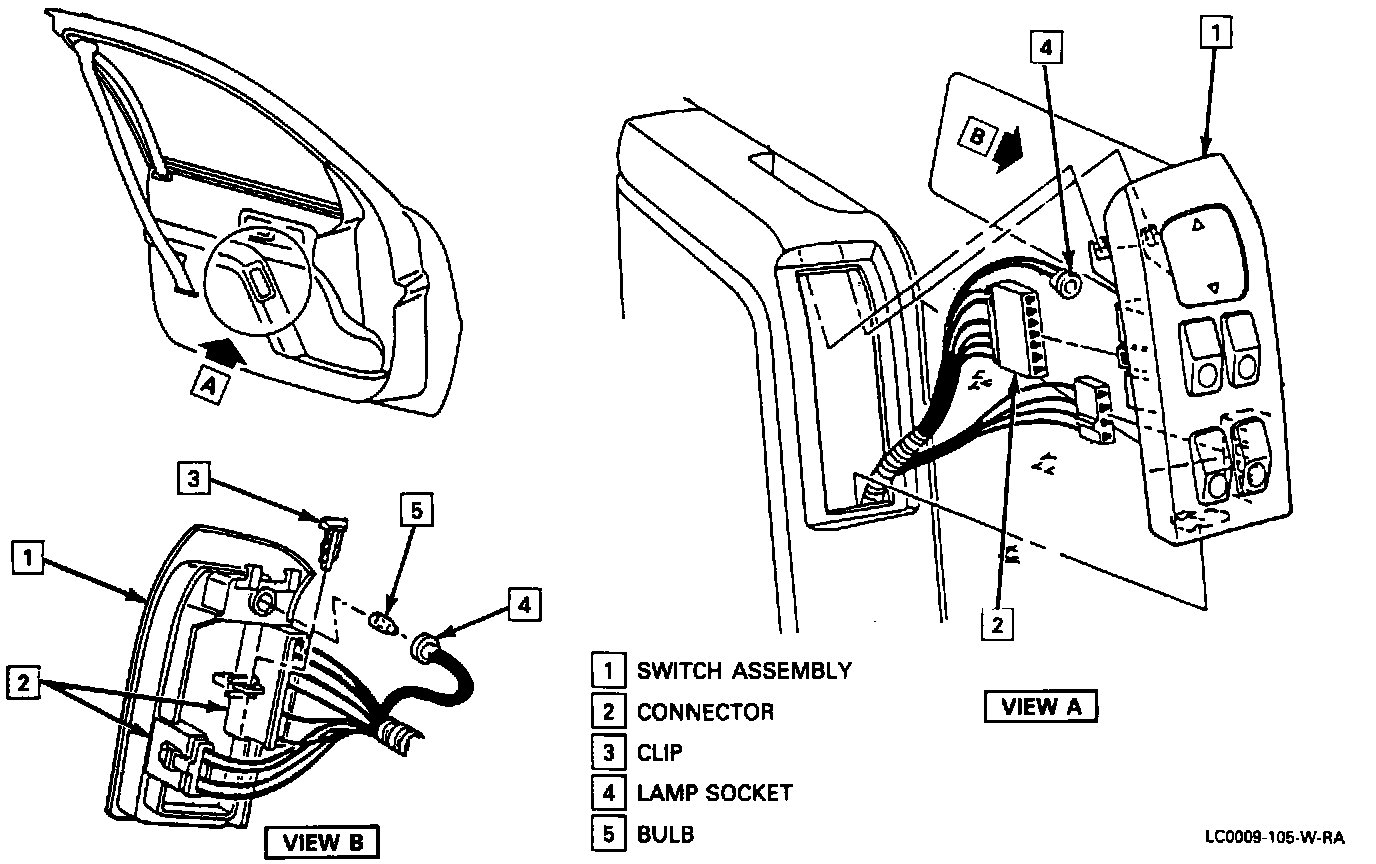

Power Window Switch Assembly:

NOTICE: When removing a door trim panel or switch plate, the ignition switch must be in the OFF position This will eliminate the possibility of snorting out the switch if a screwdriver, awl or metal object is used to remove the switch from the harness.

Remove or Disconnect

1. Switch assembly by prying up with a flat bladed tool.
2. Clip.
3. Connector(s).
4. Lamp socket and bulb, if present.

Install or Connect

1. Lamp socket and bulb, if removed.
2. Connector(s).
3. Clips.
4. Switch assembly by pressing in place.
