Overhaul - 3T40: Identification

Transaxle identification plate is attached to transaxle case. See Fig 1. Transaxle model is printed on the service parts identification label located inside vehicle trunk.

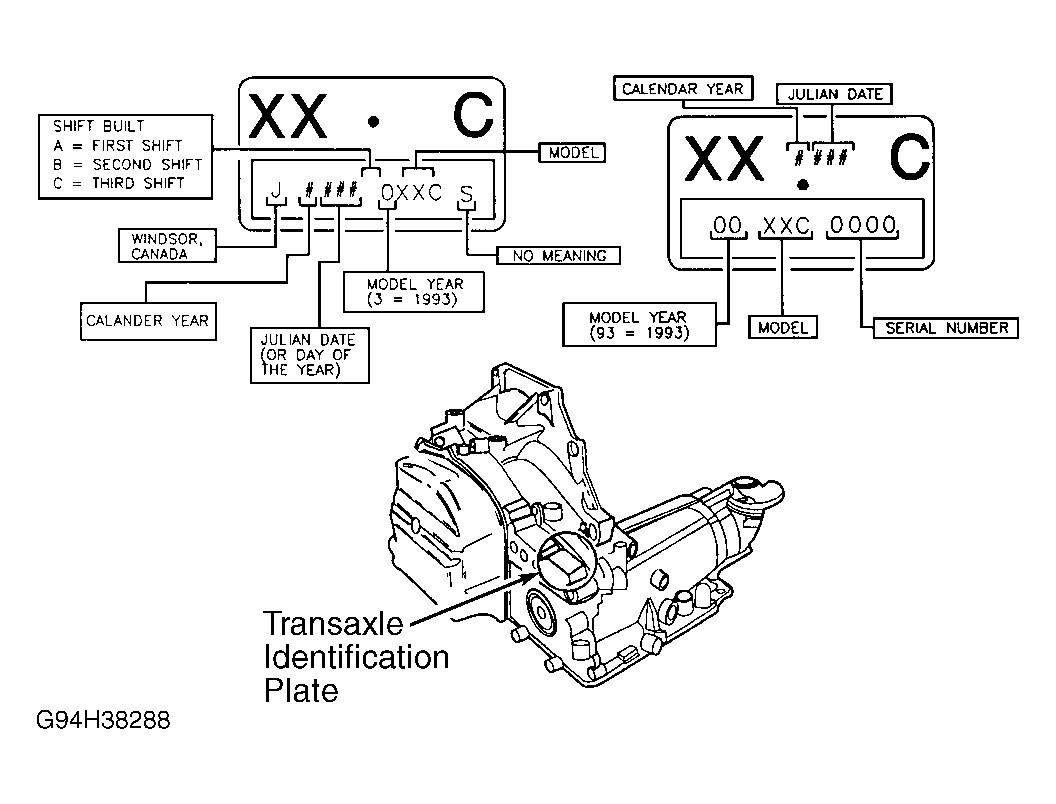

Fig 1: Locating Transaxle Identification Plate

Courtesy of GENERAL MOTORS CORP.
