Component Locations
COMPONENT LOCATIONS
| Component | Location |
|---|---|

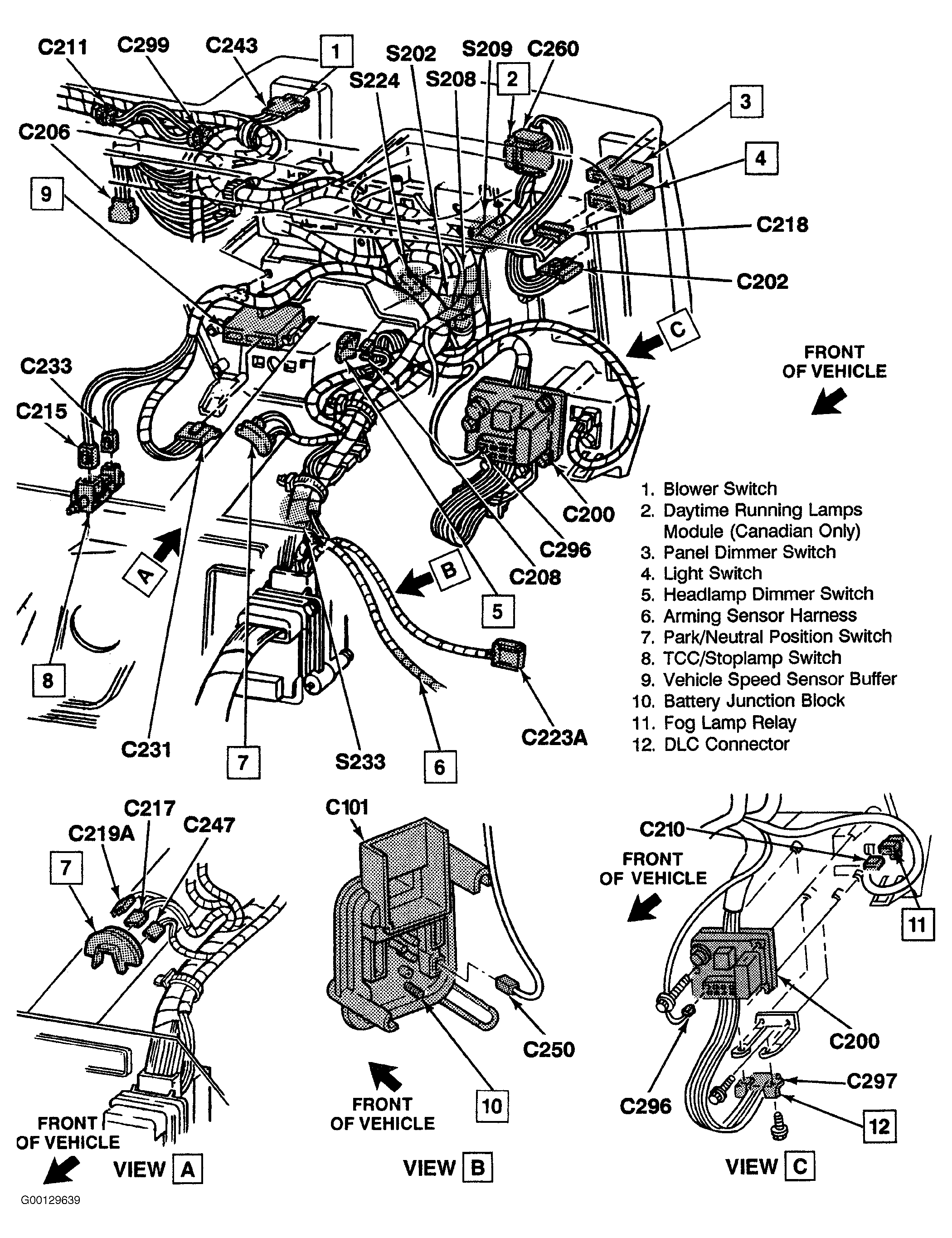

| Convenience Center | Behind Left Side Of Instrument Panel. See Fig 2 |
| Fuse Block | Behind Left Side Of Instrument Panel. See Fig 2 |

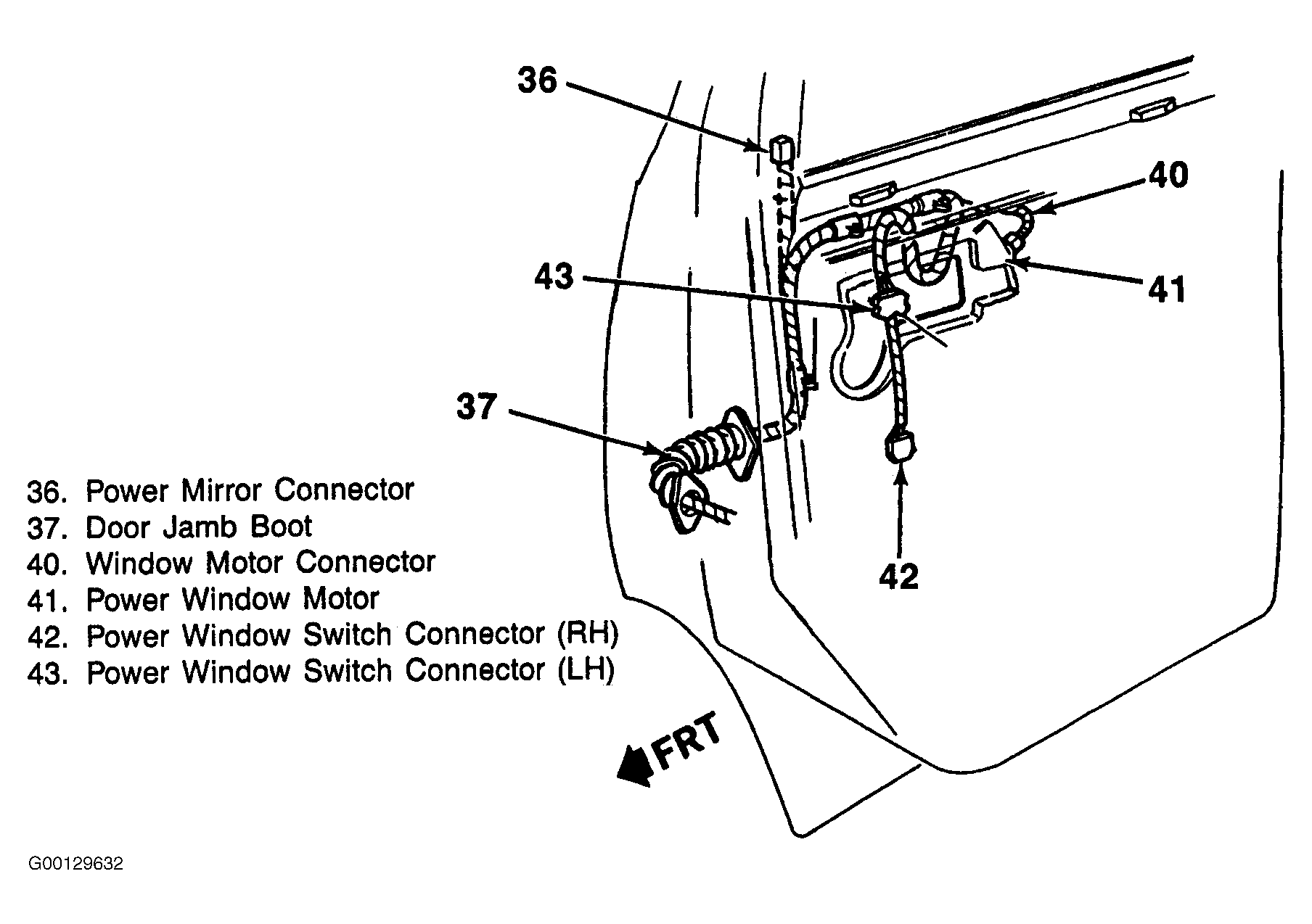

| Left Window Motor | Inside Left Front Door. See Fig 3 |
| Left Window Switch | On Left Door Panel. See Fig 3 |
| Right Window Motor | Inside Right Front Door. See Fig 3 |
| Right Window Switch | On Right Door Panel. See Fig 3 |

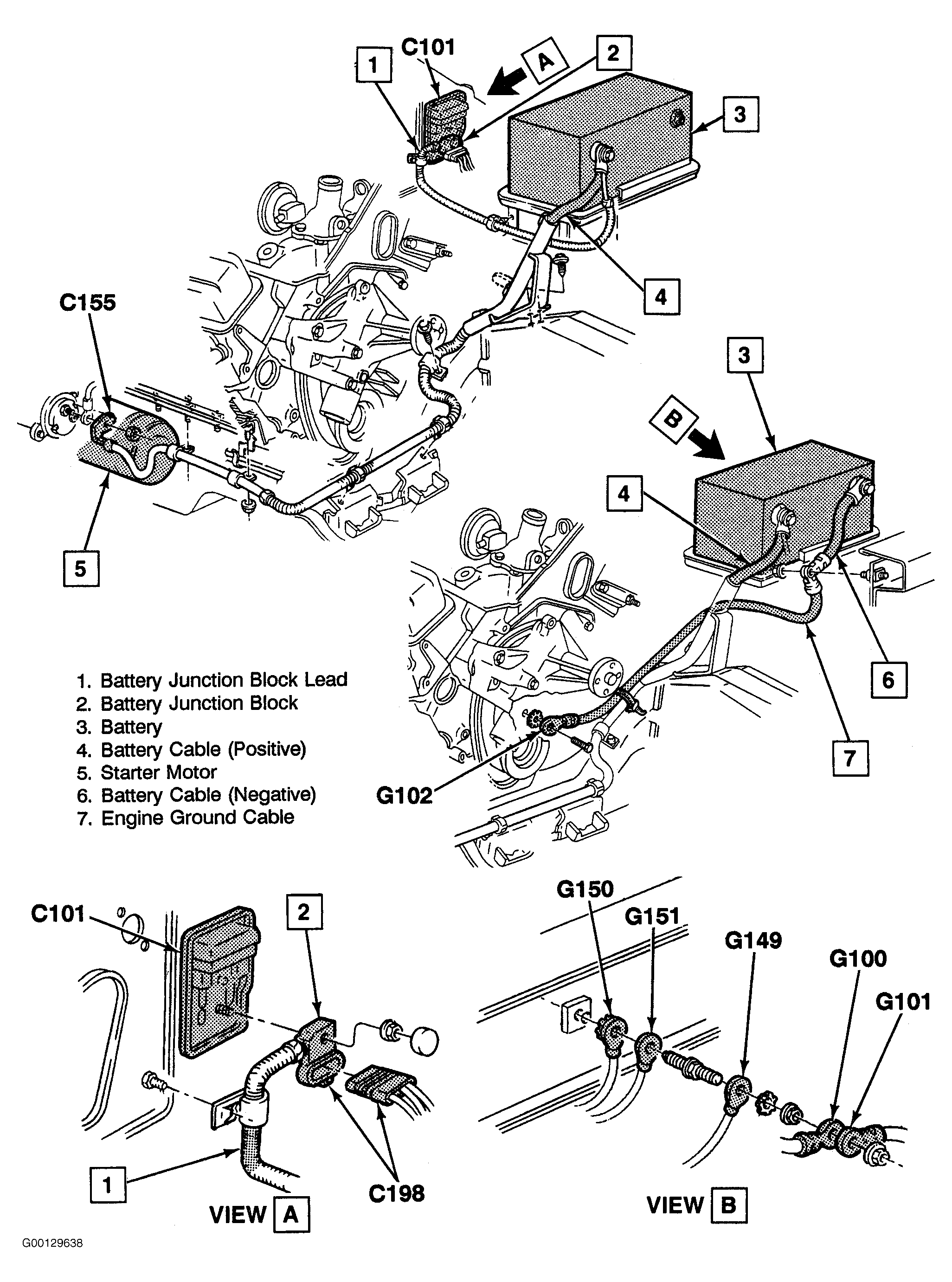

| C101 | Left Side Of Cowl. See Fig 4 |
| C244 | Behind Right Side of Instrument Panel, At Right Shroud. See Fig 5 |
| C245 | Behind Left Side Of Instrument Panel, At Left Shroud. See Fig 5 |
| C279 | Behind Left Side Of Instrument Panel, At Fuse Block. See Fig 5 |
| C281 | At Busbar Ground. See Fig 5 |
| GT225 | Lower Left A-Pillar. See Fig 5 |
| GT226 | Lower Right A-Pillar. See Fig 5 |
| GT520 | At Left A-Pillar. See Fig 3 |

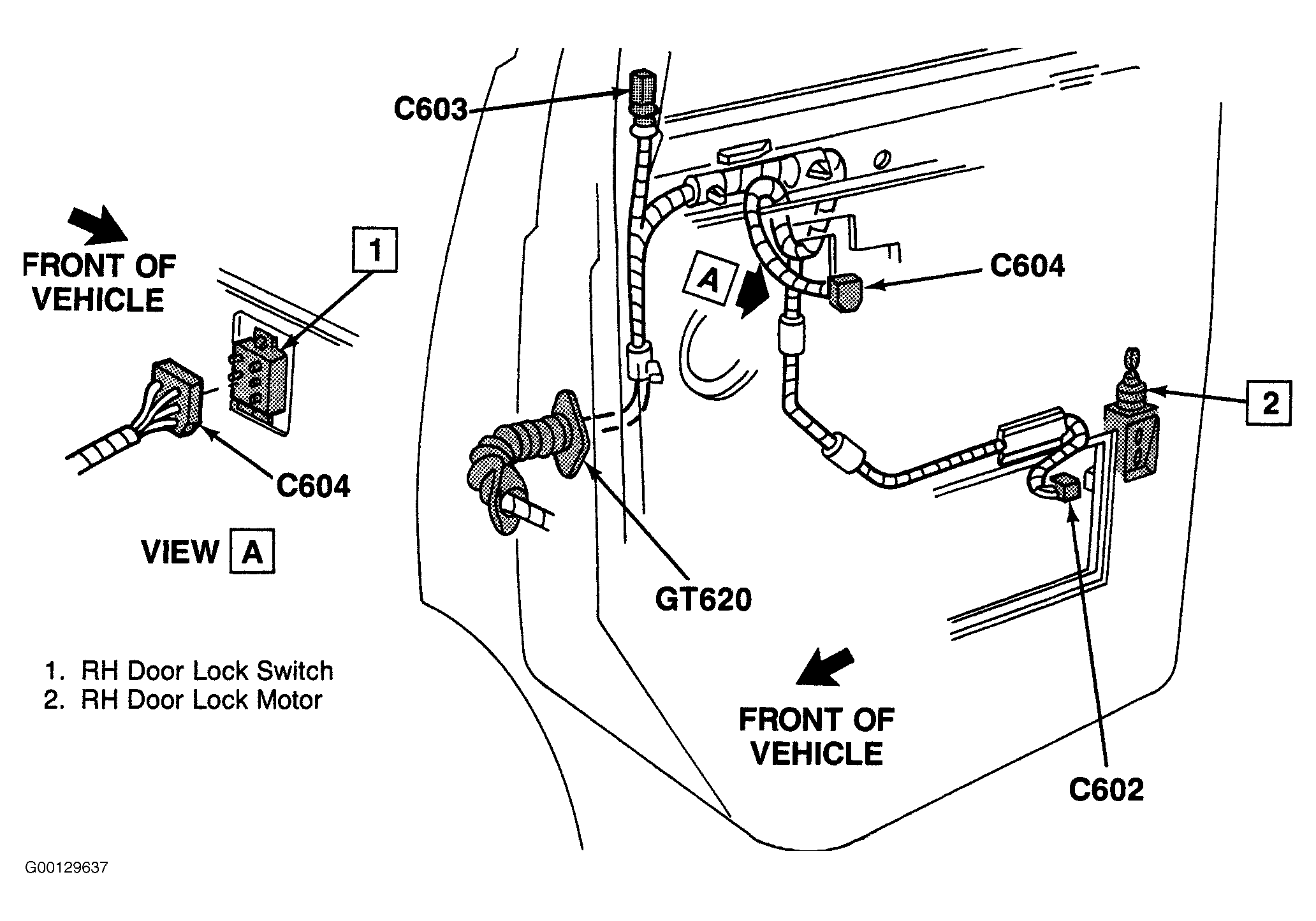

| GT620 | At Right A-Pillar. See Fig 6 |

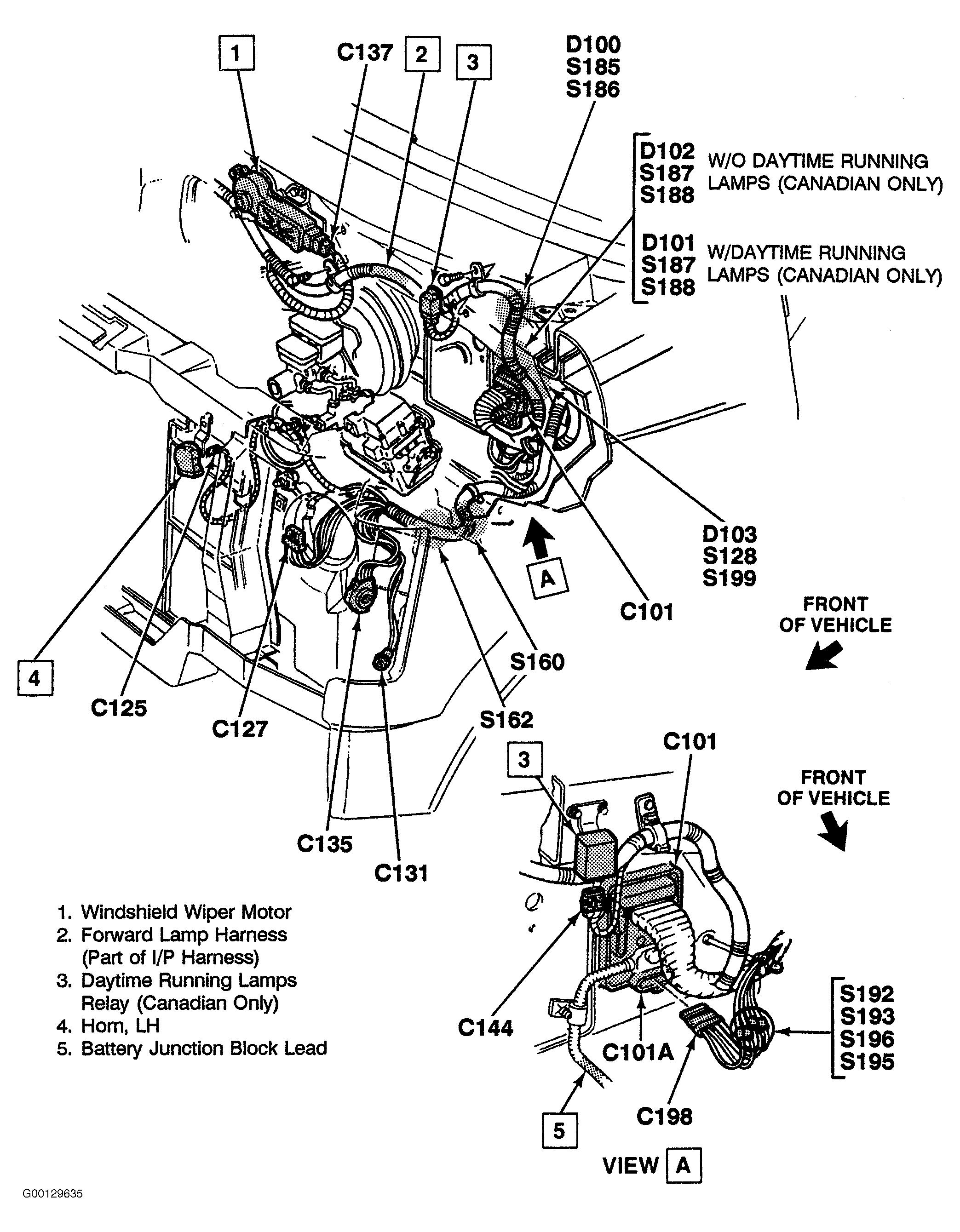

| G150 | On Radiator Support, Near Left Headlamp. See Fig 7 |
| S208 | Behind Left Side Of Instrument Panel, Above Steering Column. See Fig 8 |
| S250 | In Crossbody Harness Left Side Of Instrument Panel. See Fig 5 |
| S252 | In Crossbody Harness, Left Side Of Instrument Panel. See Fig 5 |
