RH Forward Discriminating Sensor

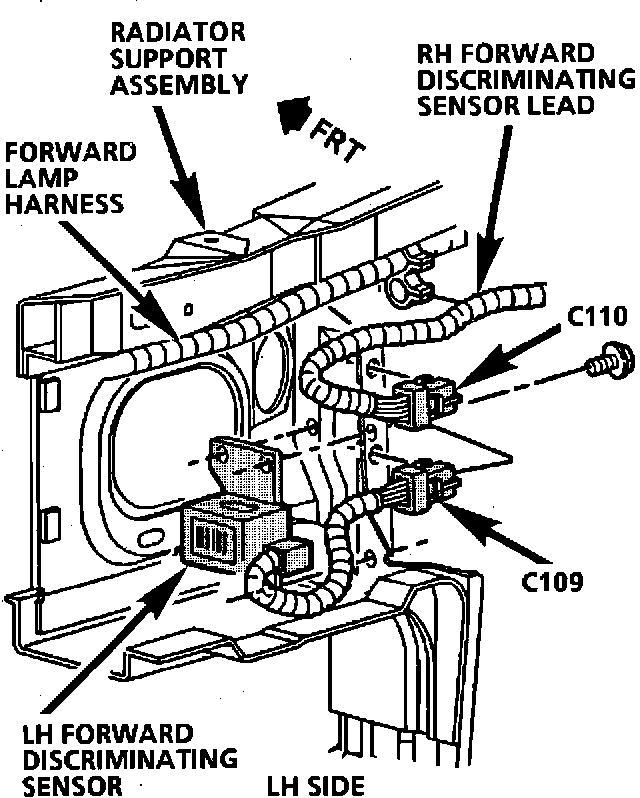

Component Location View. LH Radiator Support:




Mounted on RH Radiator Support Assembly, front of Battery
