System Specifications

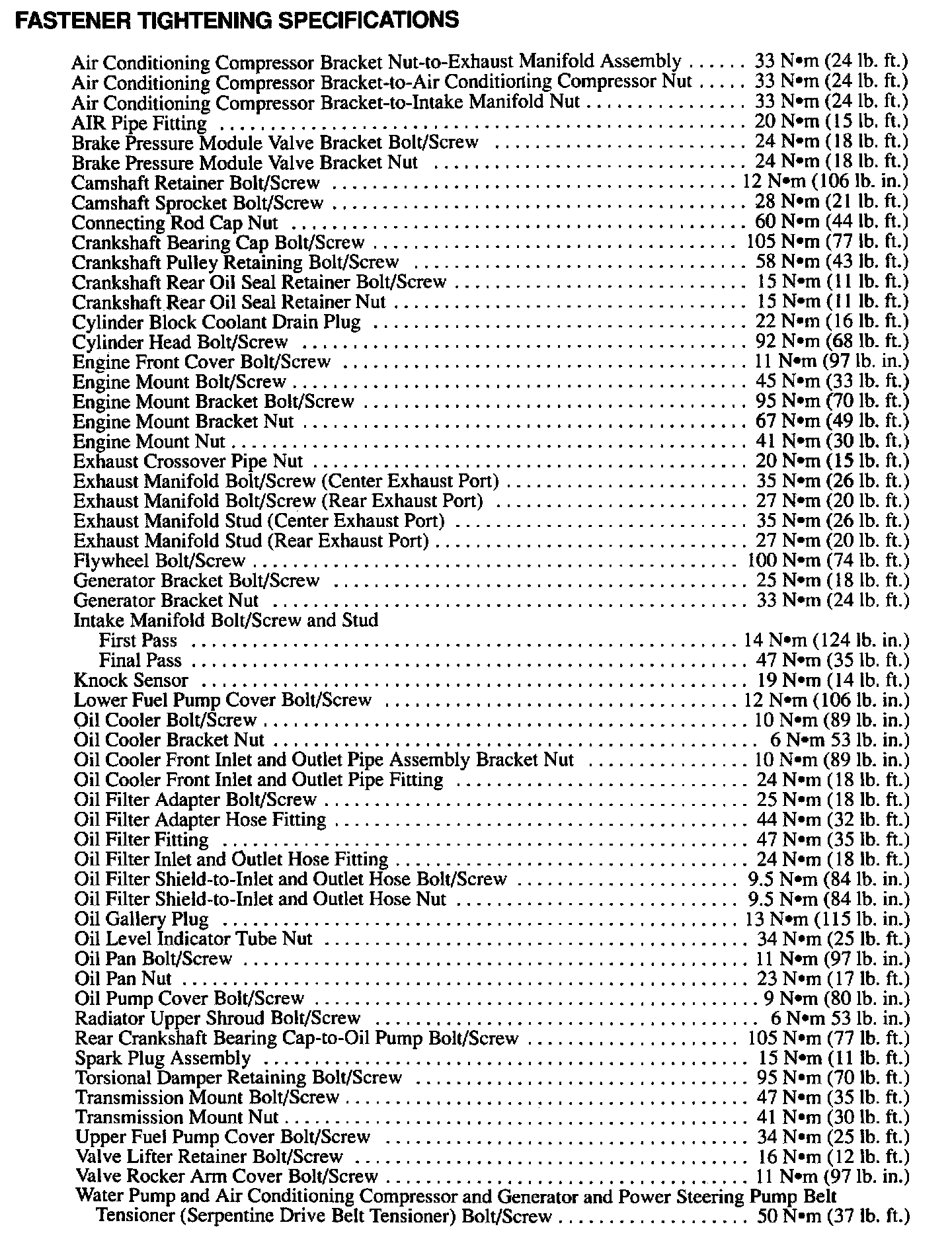

Torque Specifications:

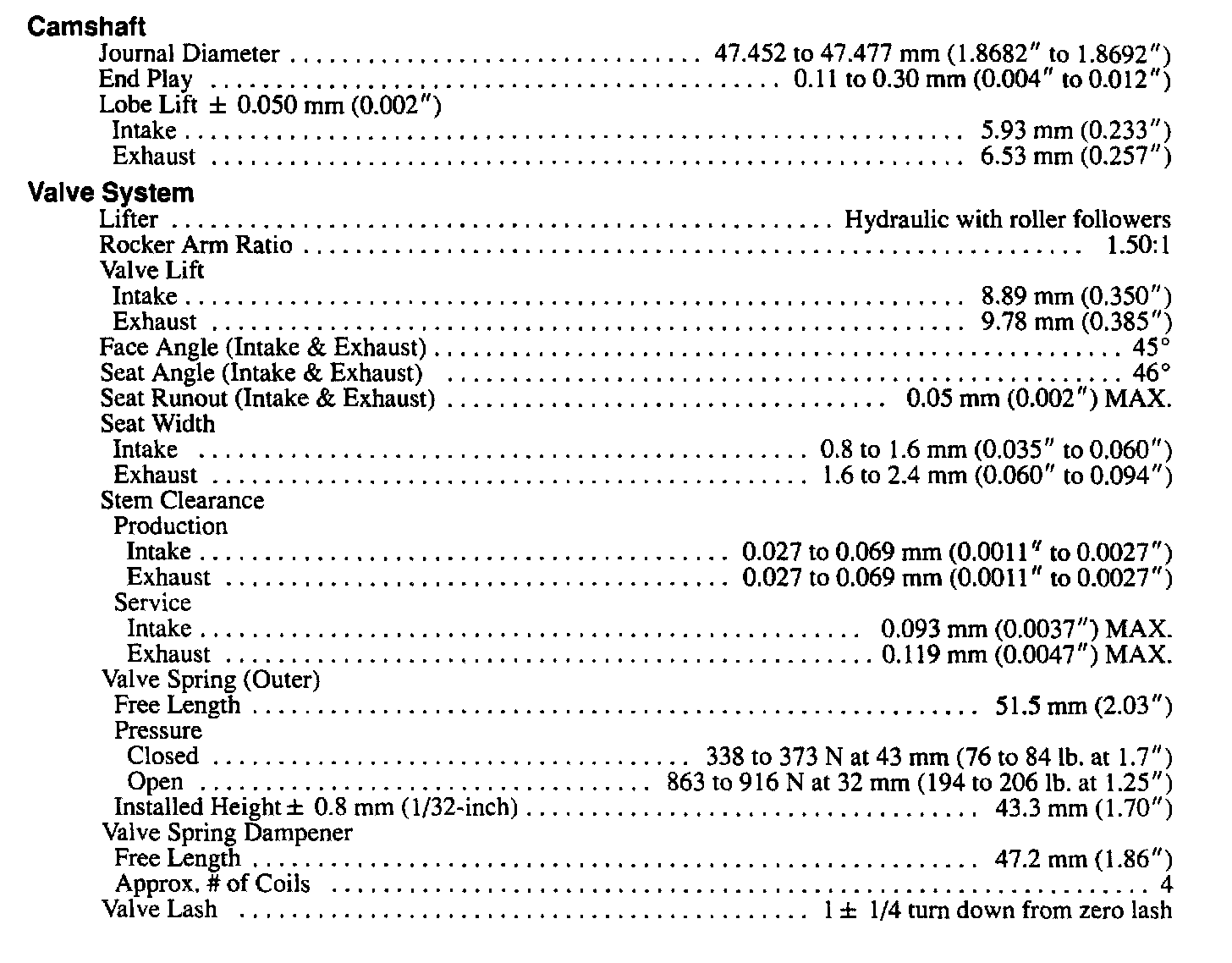

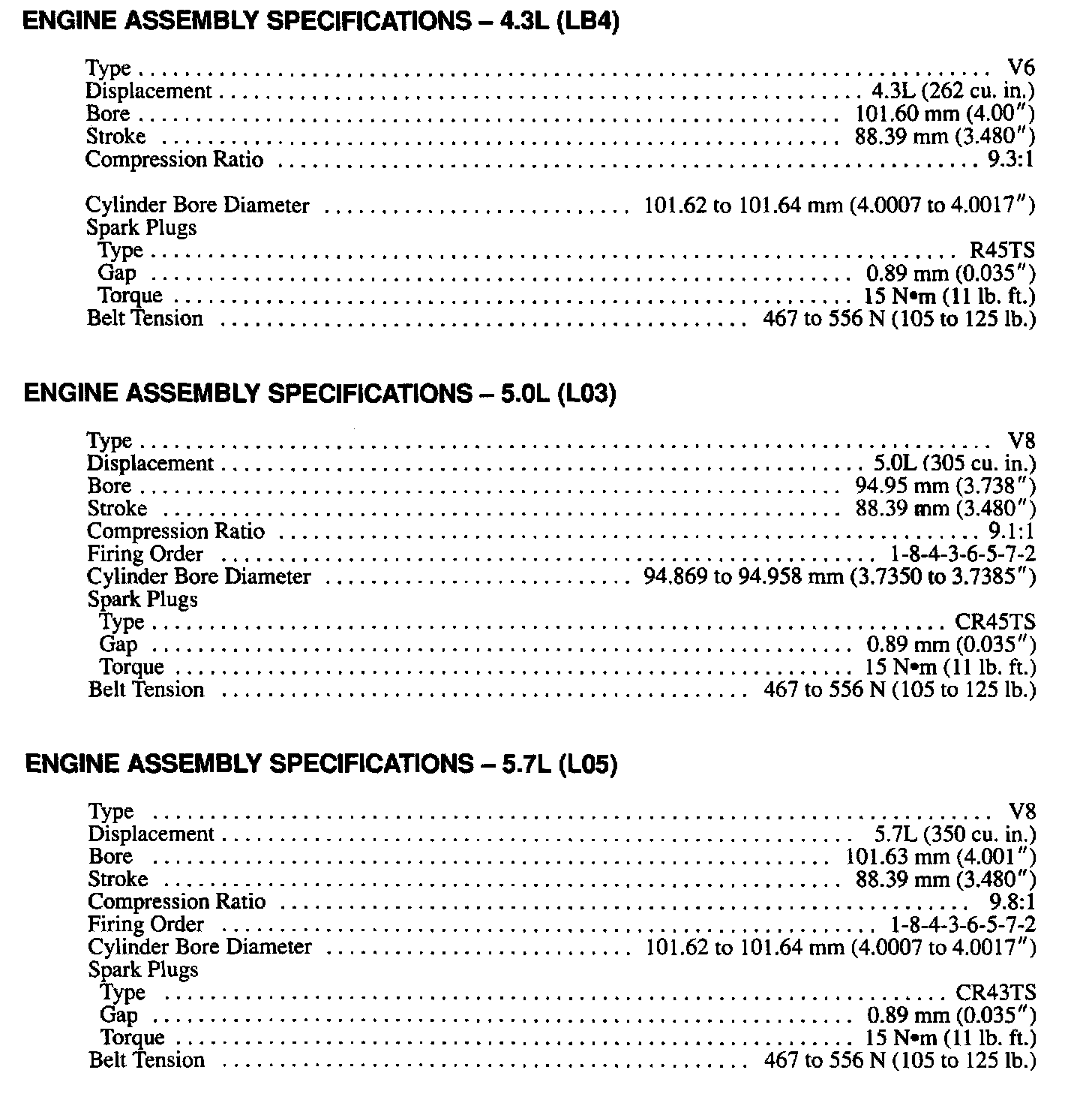

Engine Specifications:





Engine Specifications:

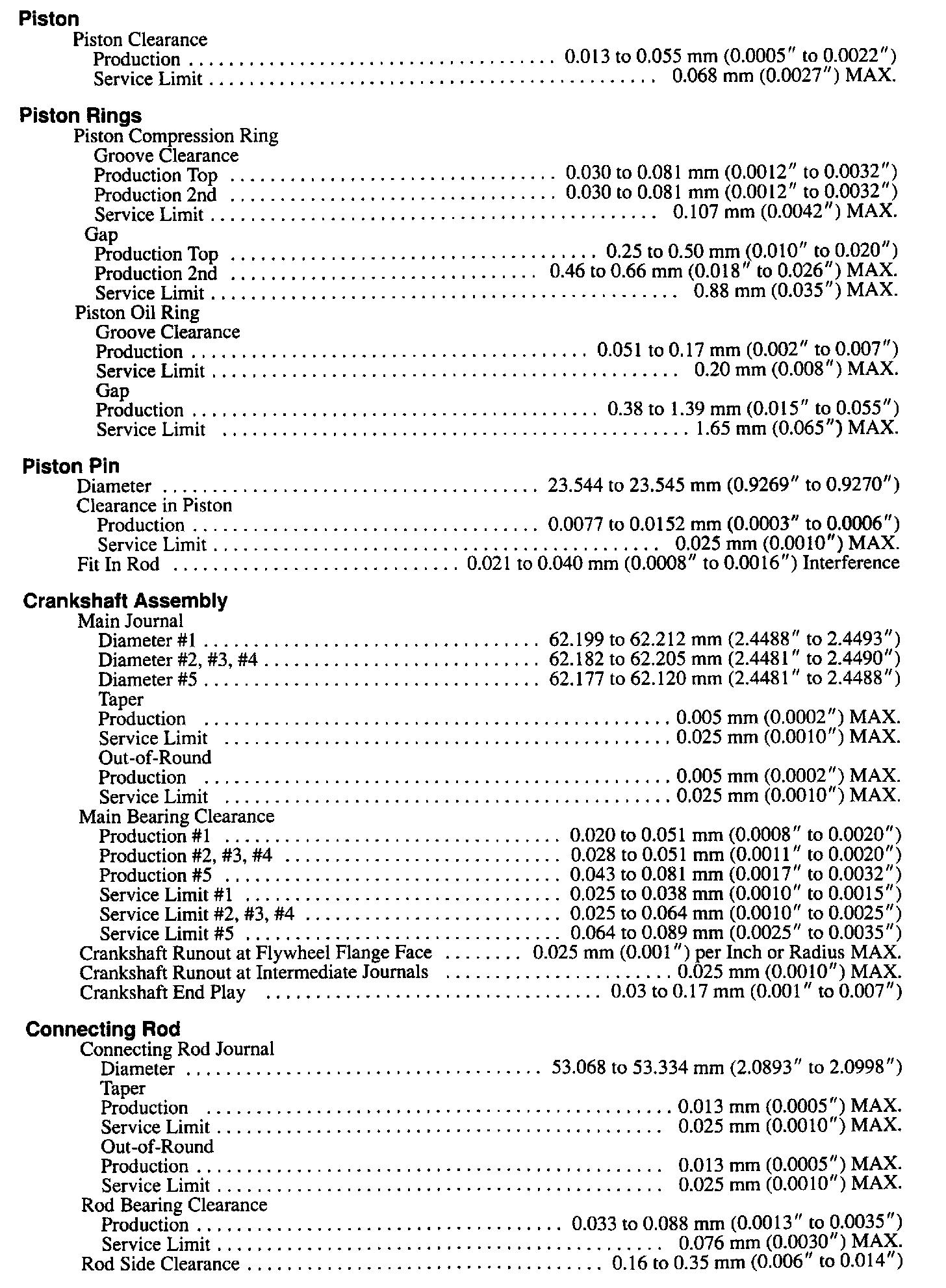

Continued Engine Specifications:




Continued Engine Specifications:






Intake Manifold Sequence (V8):





Intake Manifold Sequence (V6):





Cylinder Head Sequence:
