Engine Control Module

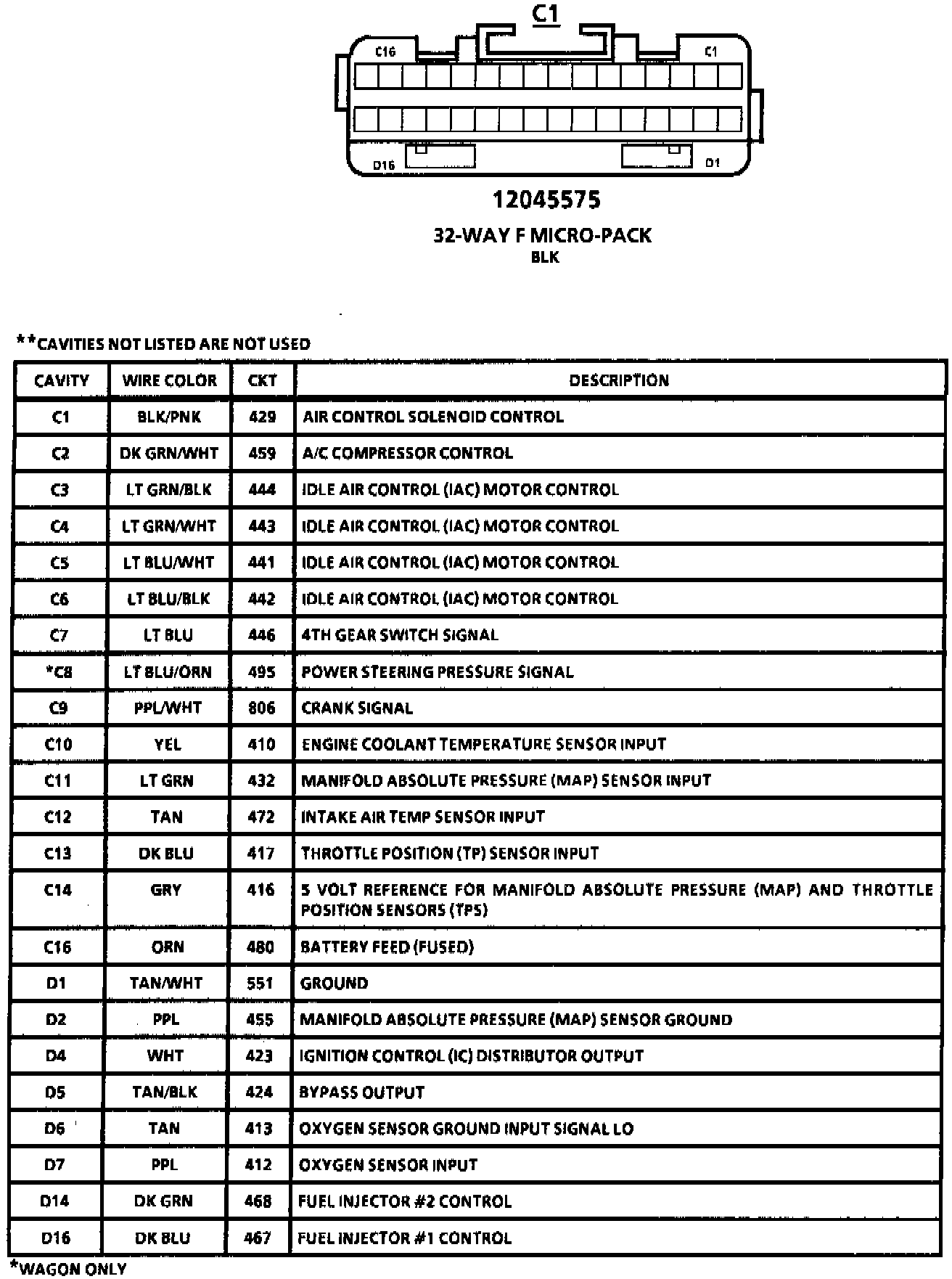

Throttle Body Injection: V8 VIN E And VIN 7 Engine Control Module (ECM) Connector Faces C1:

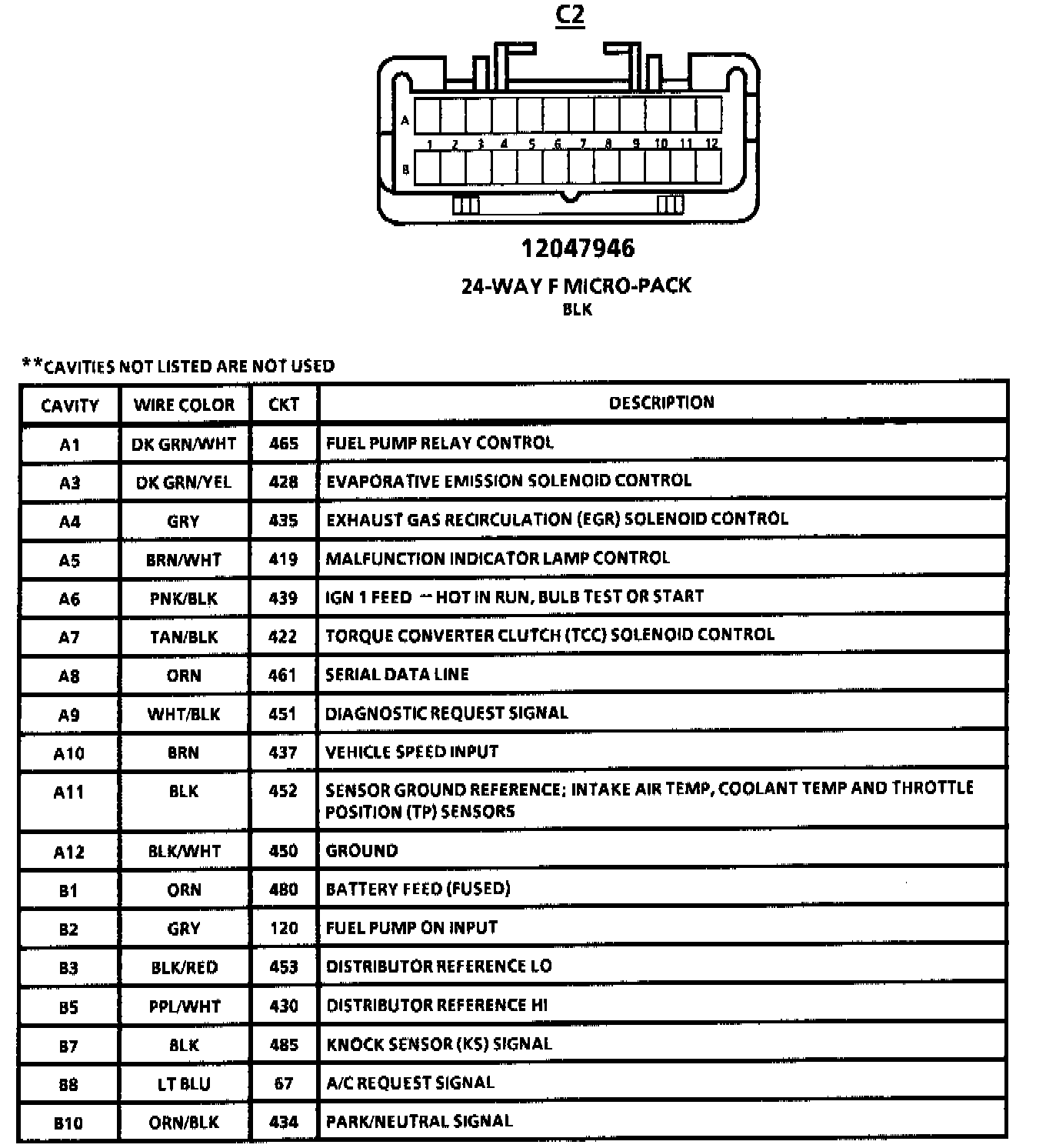

Throttle Body Injection: V8 VIN E And VIN 7 Engine Control Module (ECM) Connector Faces C2:
ECM Voltage Chart:
ECM Voltage Chart:
