Power Window Switch

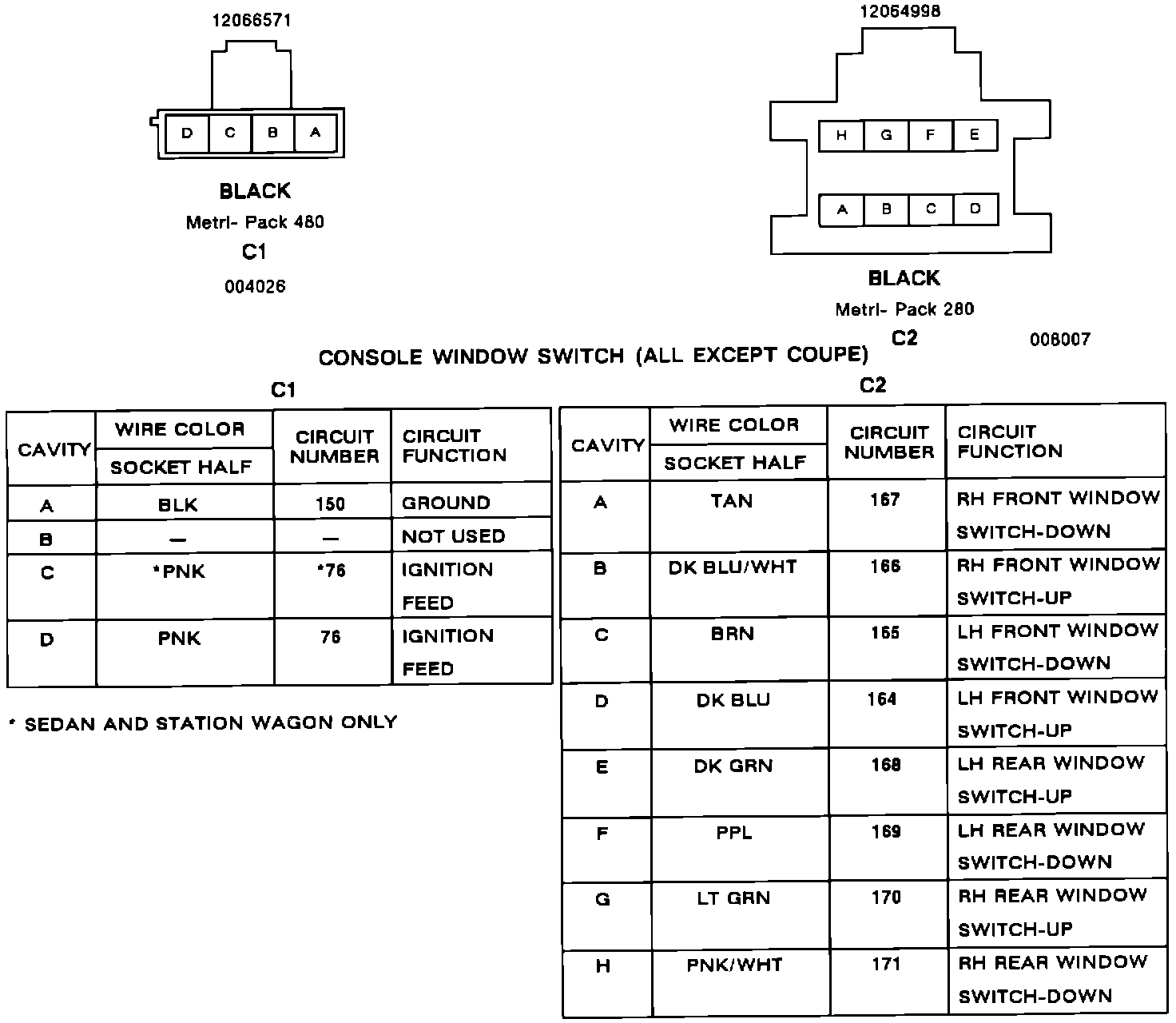

Console Window Switch Connector:

Console Window Switch Connector:

Dome Light Switch Connector:
