Test Description

Checks if RDO BATT fuse is open.
Checks is voltage is supplied at terminal A8 of PKE receiver.
Checks if ground is present at terminal A1 of PKE receiver.

Fig 1: PKE Receiver Diagnosis; Schematic

G93J40849

Courtesy of GENERAL MOTORS CORP.

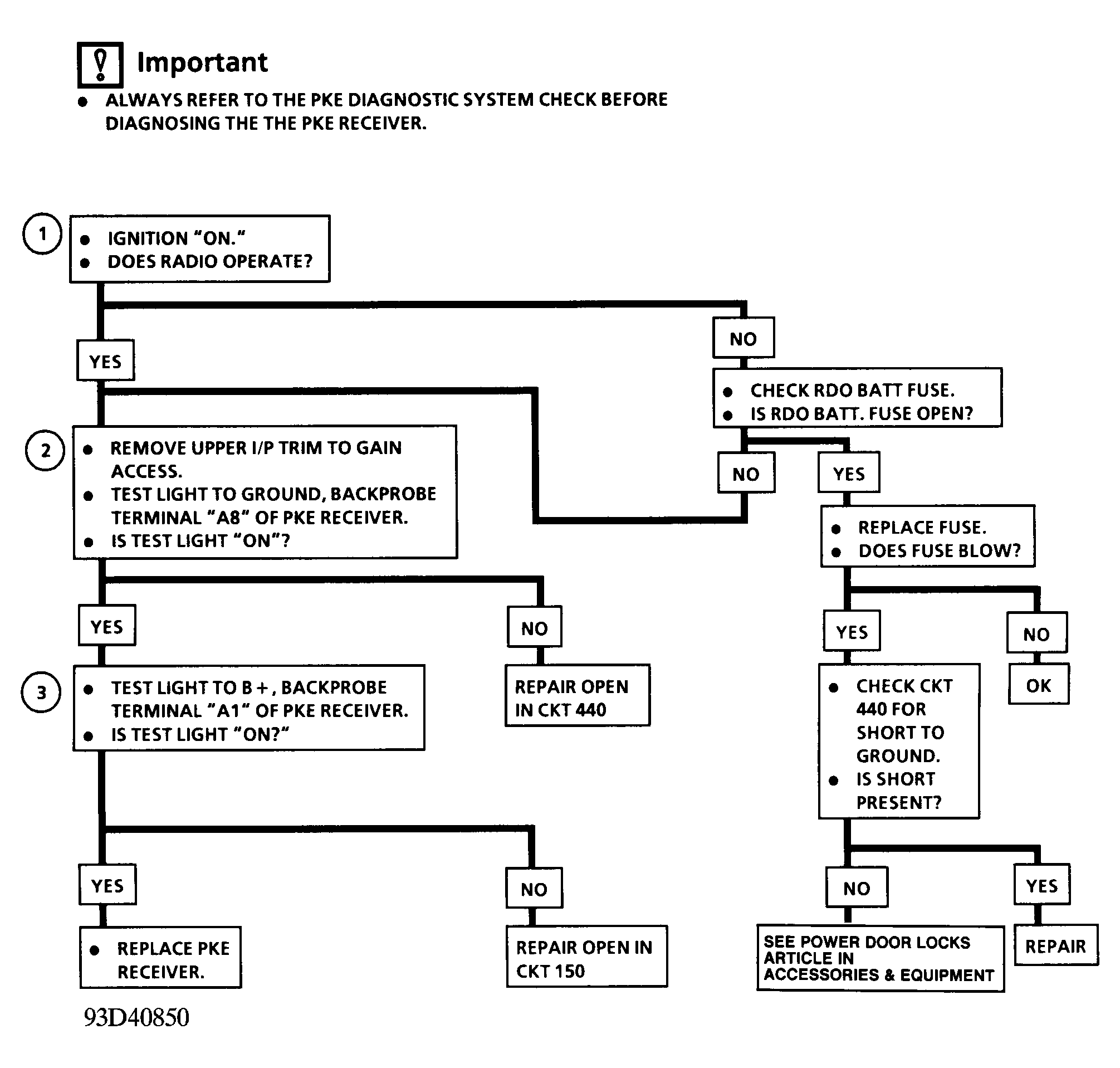

Fig 2: PKE Receiver Diagnosis; Flow Chart

G93D40850

Courtesy of GENERAL MOTORS CORP.
