Code 71 - EBTCM Control Module

EBTCM performs various diagnostic checks on itself. Code 71 will be set if a problem is detected.

1. Checks for good EBTCM harness connection.
2. Checks if fault code is false. If fault code is not false, replace EBTCM.

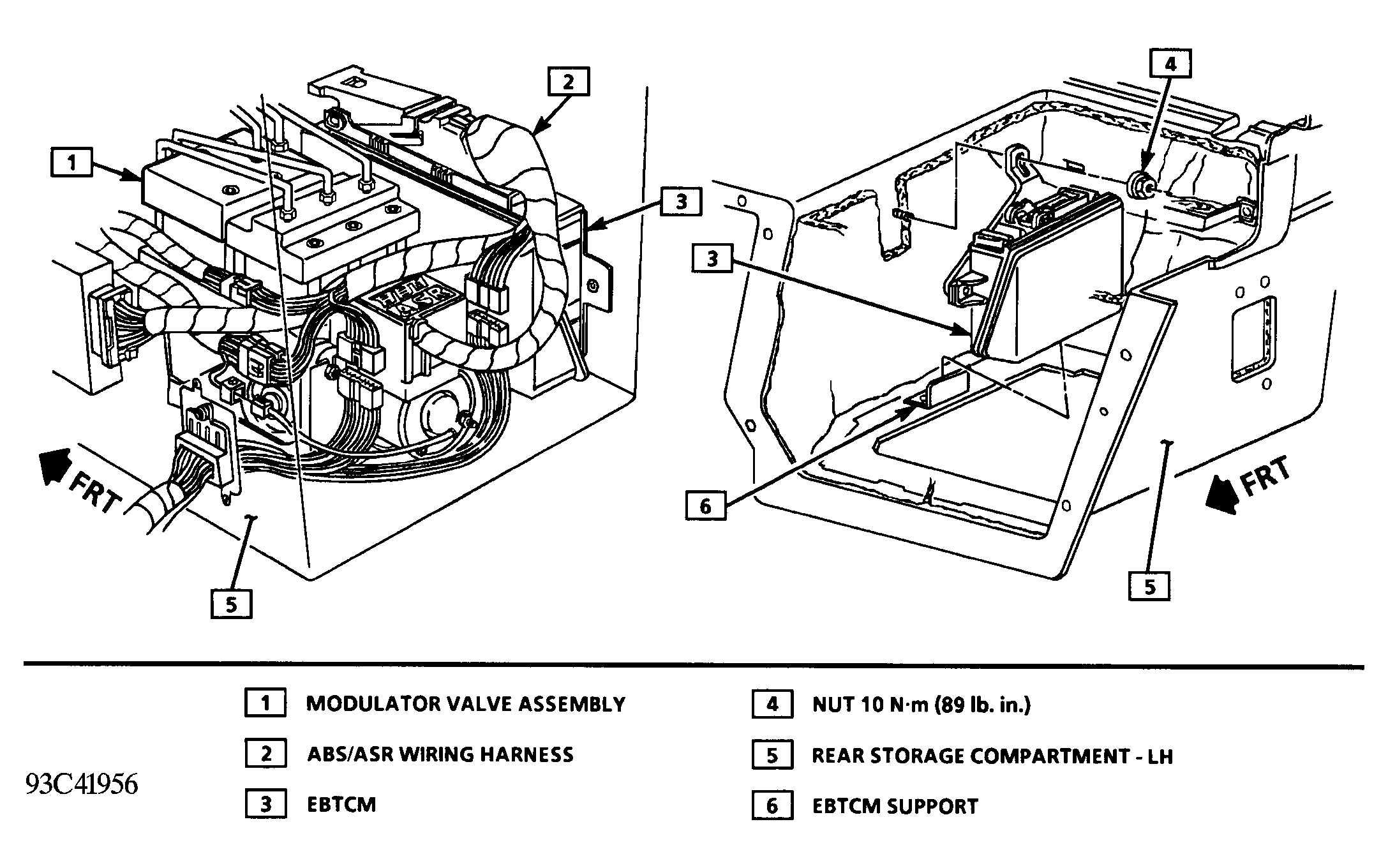

Fig 1: Code 71 - EBCTM Control Module

Courtesy of GENERAL MOTORS CORP.

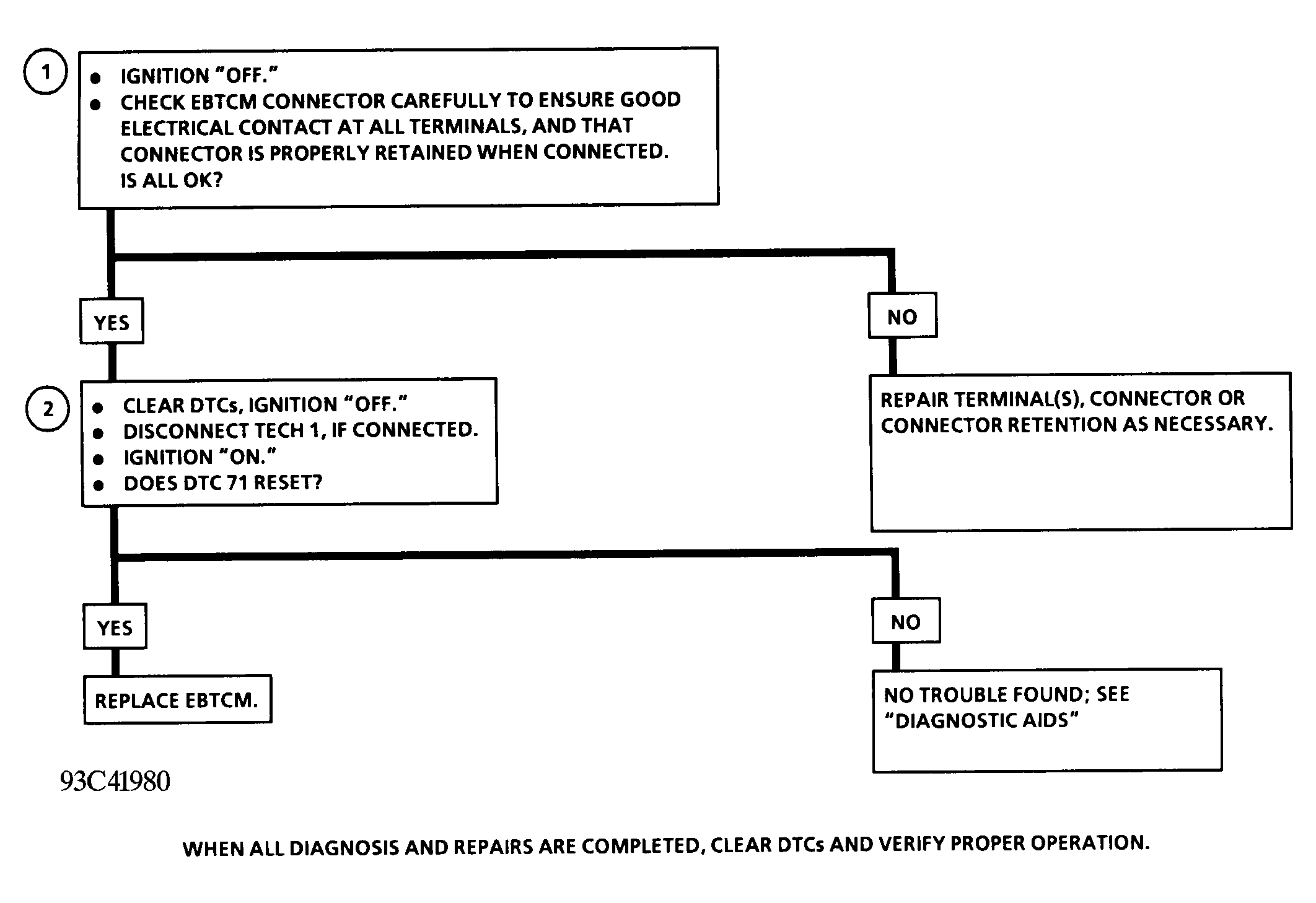

Fig 2: Code 71 - Diagnostic Flowchart

Courtesy of GENERAL MOTORS CORP.
