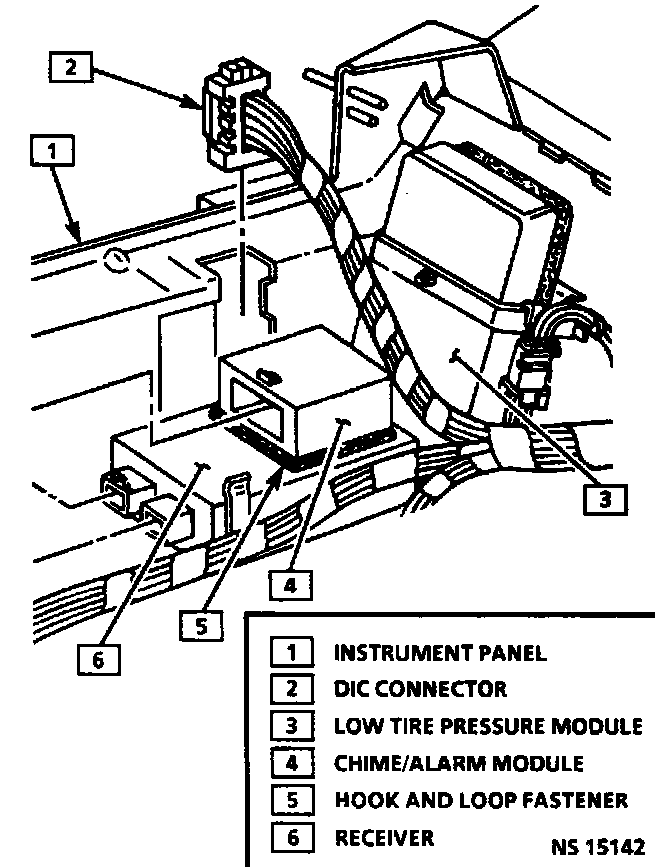

Receiver Module

Receiver:

Remove or Disconnect

1. Instrument panel upper trim pad.
2. Chime module from receiver.
^ Pull firmly on module to separate hook and loop fastener.
3. Reposition chime module.
4. Receiver from retainer.
5. Harness connector.

Install or Connect

1. Hook and loop fastener to receiver.
2. Harness connector.
3. Receiver to retainer.
4. Chime module to receiver.
^ Press firmly to engage hook and loop fastener.
5. Upper trim pad.
