Oil Pressure Sensor: Service and Repair

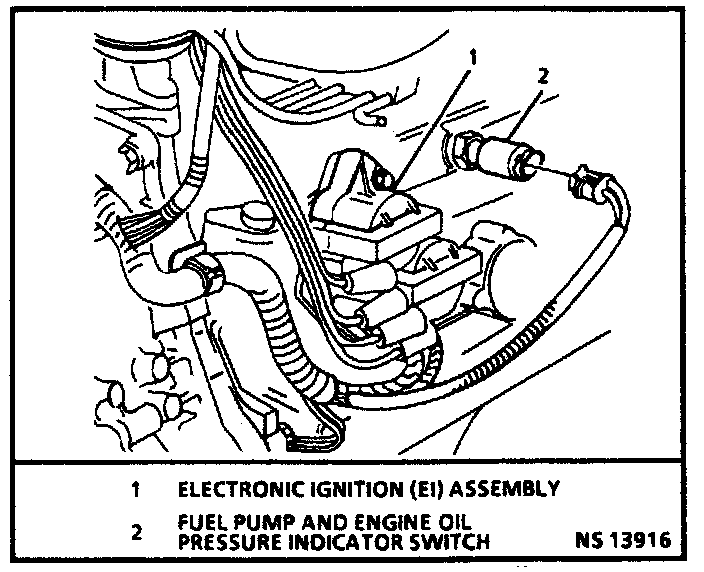

Fuel Pump And Oil Pressure Indicator Switch:

NOTE: The oil pressure sensor/switch is mounted to the engine beneath the lower manifold assembly. Coat sensor threads to prevent leaks.


REMOVE OR DISCONNECT
- Oil pressure sensor/ switch electrical connector.
- Oil pressure sensor/switch.

INSTALL OR CONNECT
- Oil pressure sensor/switch.
- Oil pressure sensor/ switch electrical connector.
