Torque Specifications

Cylinder Head Bolts

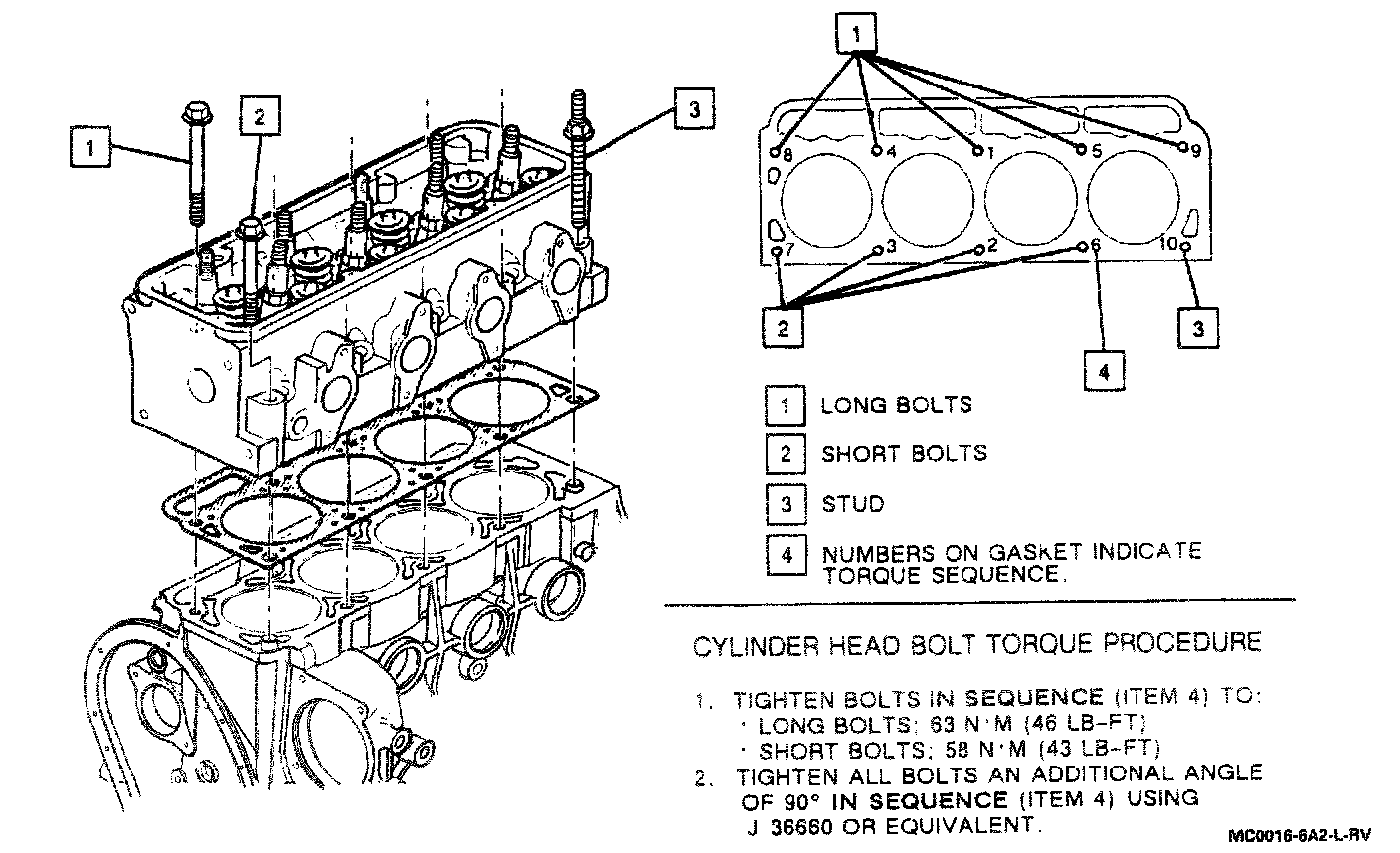

In the sequence shown (refer to image):

A. Torque long bolts to 63 N.m (46 lb. ft.)
B. Torque short bolts to 58 N.m (43 lb. ft.)
C. Tighten all bolts an additional 90° (1/4 turn)
