Test B: Right Power Window Only Operates From Driver's Side Window Switch

NOTE: For testing procedure see, Fig 1 .

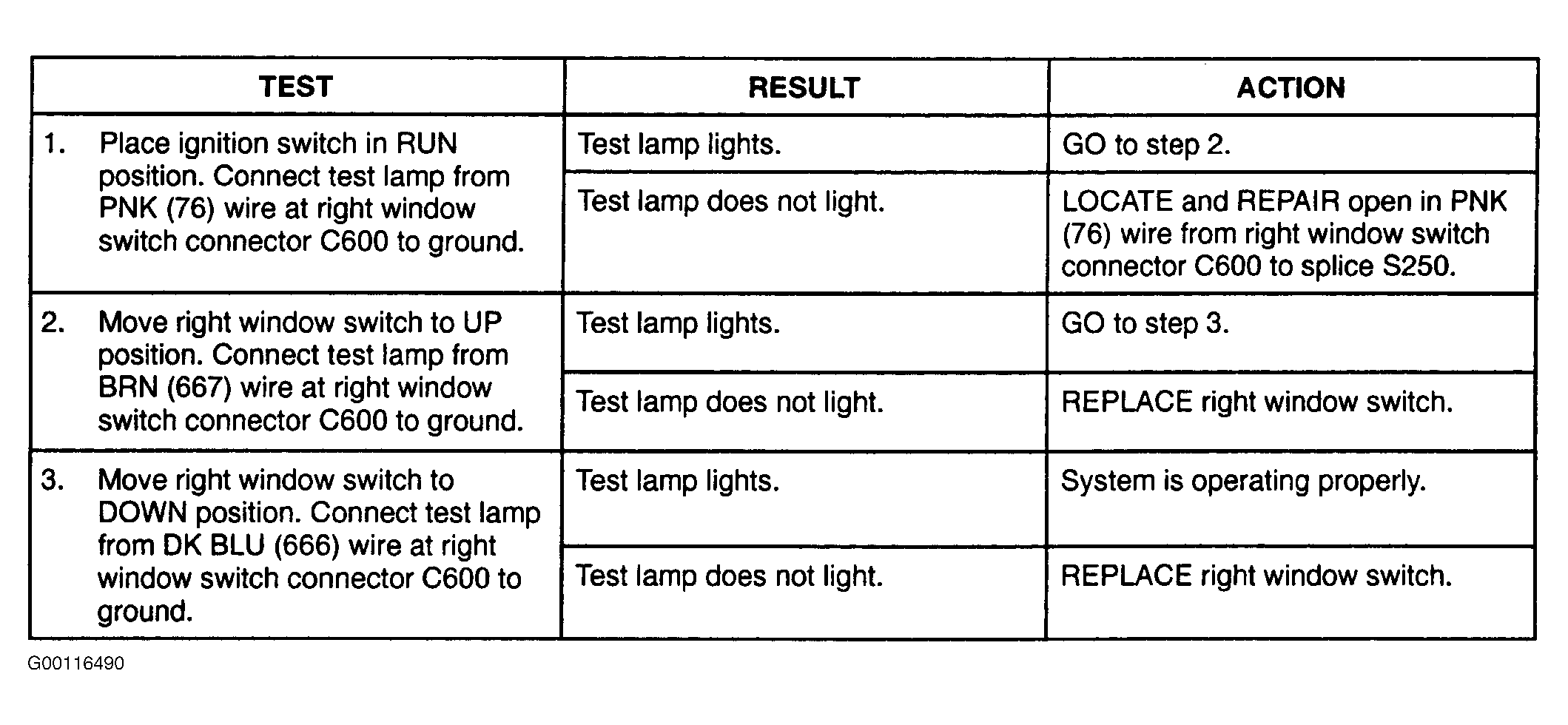

Fig 1: Diagnostic Flow Chart: Right Power Window Only Operates From Driver's Side Window Switch
G00116490Courtesy of GENERAL MOTORS CORP.
