Electronic Ignition Module

ELECTRONIC IGNITION MODULE





Tool Required: J 25033-B Power Steering Pump Pulley Installer


Install or Connect

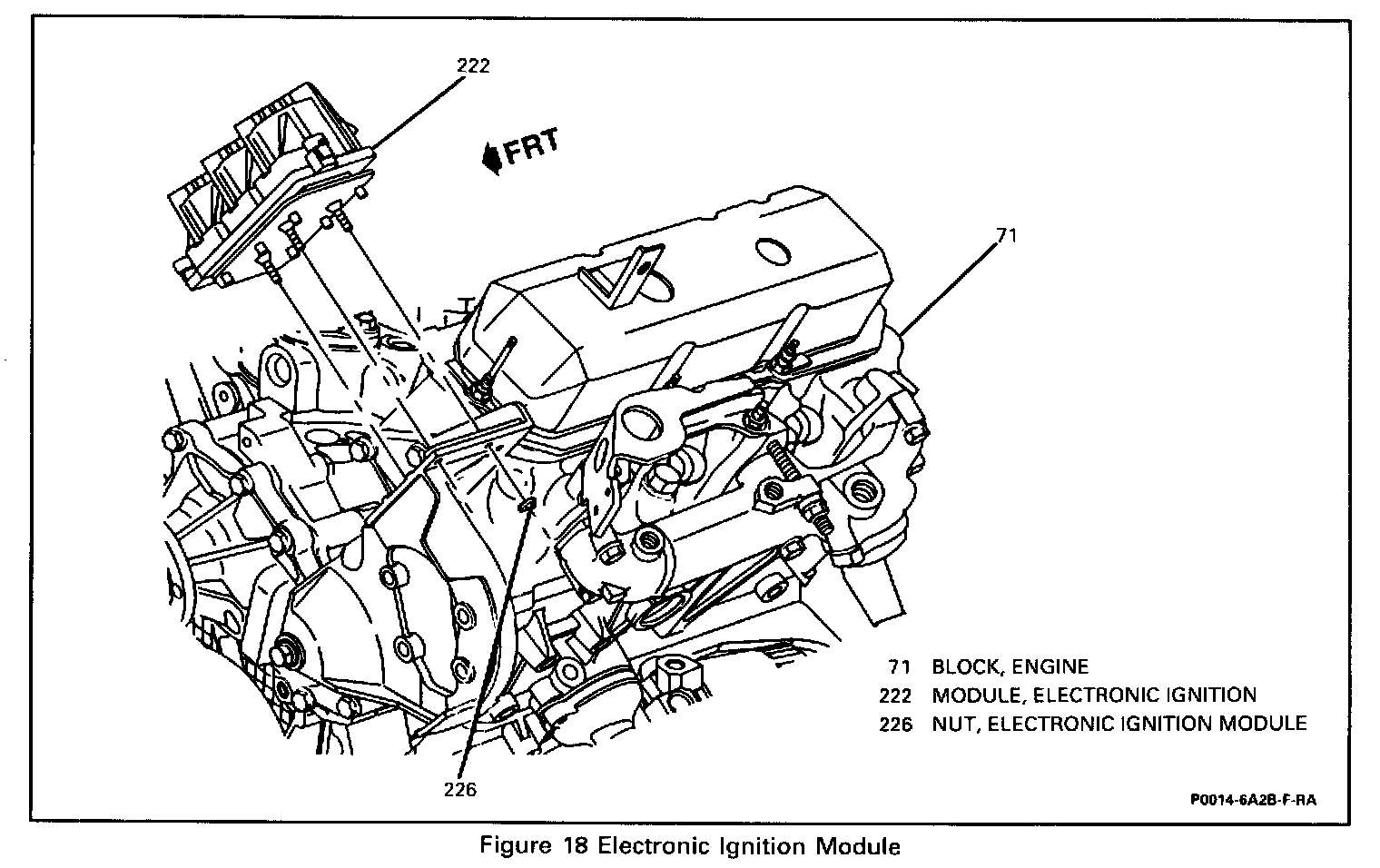

1. Electronic ignition module (222) and retaining nuts (226).
- Tighten Nuts (226) to 10 N.m (89 lb. in.)

2. Power steering pump (225) and retaining bolts (228).
3. Power steering pump to rear bracket retaining bolts.
4. Power steering pump pulley (229) using J 25033-B.
- Install pulley (229) until fully seated.
