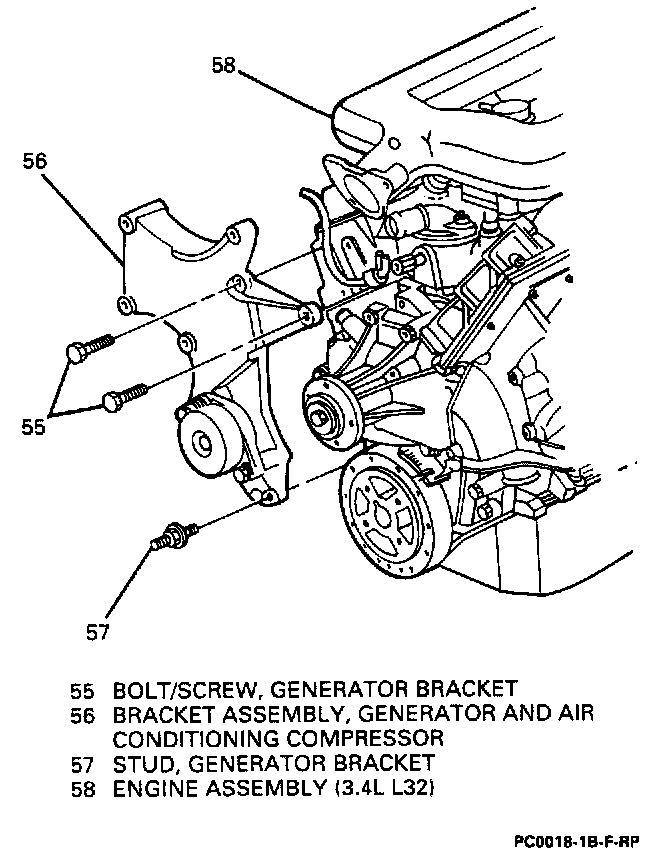

Generator and A/C Compressor Bracket Assembly

Bracket Assembly:

Remove or Disconnect

1. Generator assembly.
2. Air conditioning compressor assembly.
3. Serpentine drive belt tensioner assembly.
4. Bolts/screws (55).
5. Stud (57).
6. Bracket assembly (56).

Install or Connect

1. Bracket assembly (56).
2. Stud (57).
^ Do not tighten at this time.
3. Bolts/screws (55).

Tighten
^ Bolts/screws (55) to 33 N.m (24 lb. ft.).
^ Stud (57) to 33 N.m (24 lb. ft.).

4. Serpentine drive belt tensioner assembly.
5. Air conditioning compressor assembly.
6. Generator assembly.
7. Charge A/C system.
8. Leak-test fitting at rear of compressor assembly.
