Alternator: Service and Repair

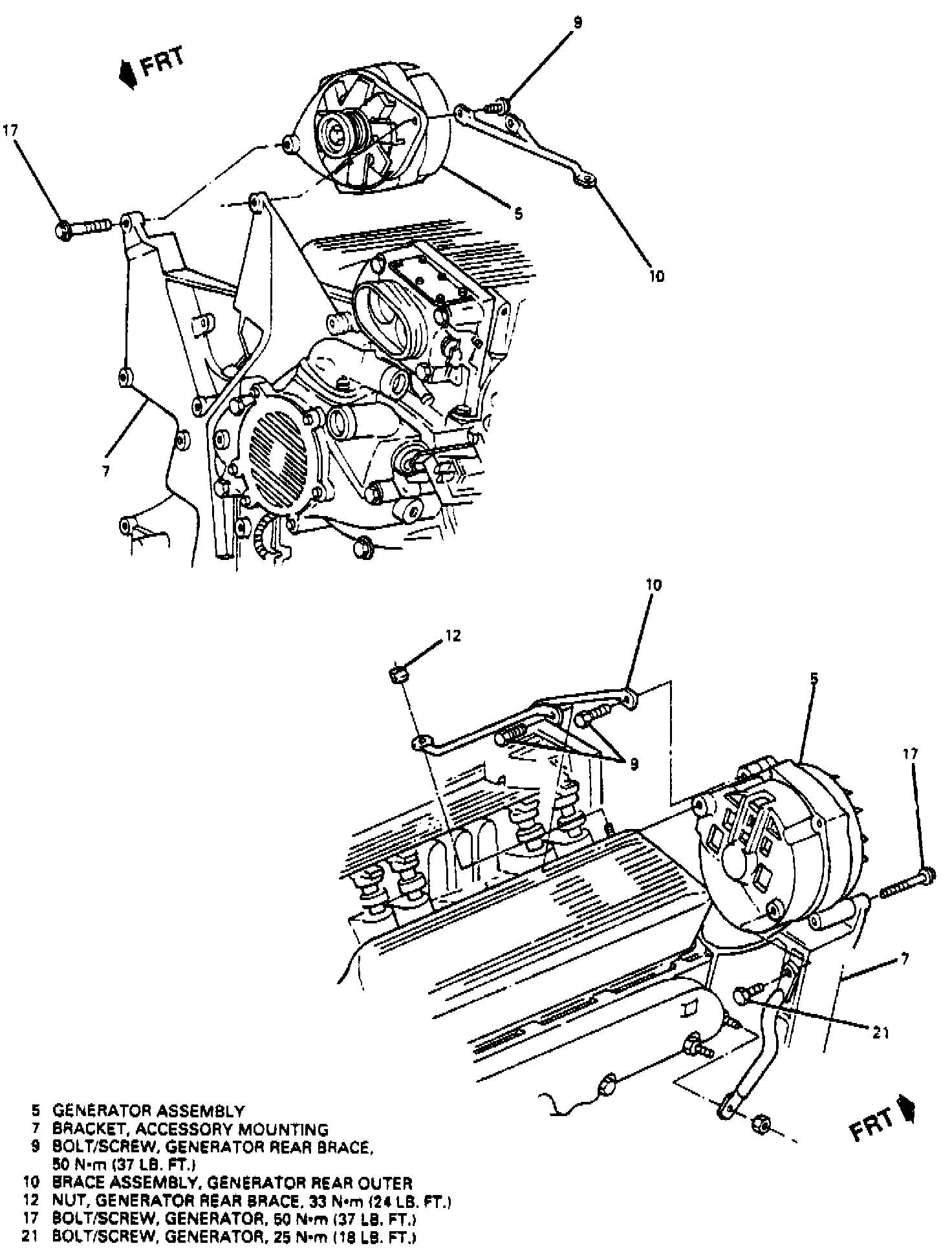

Fig. 5 Alternator Replacement:






Disconnect battery ground cable. Refer to Fig. 5 for alternator replacement.
