Chart #2 Using Twilight Sentinel Control

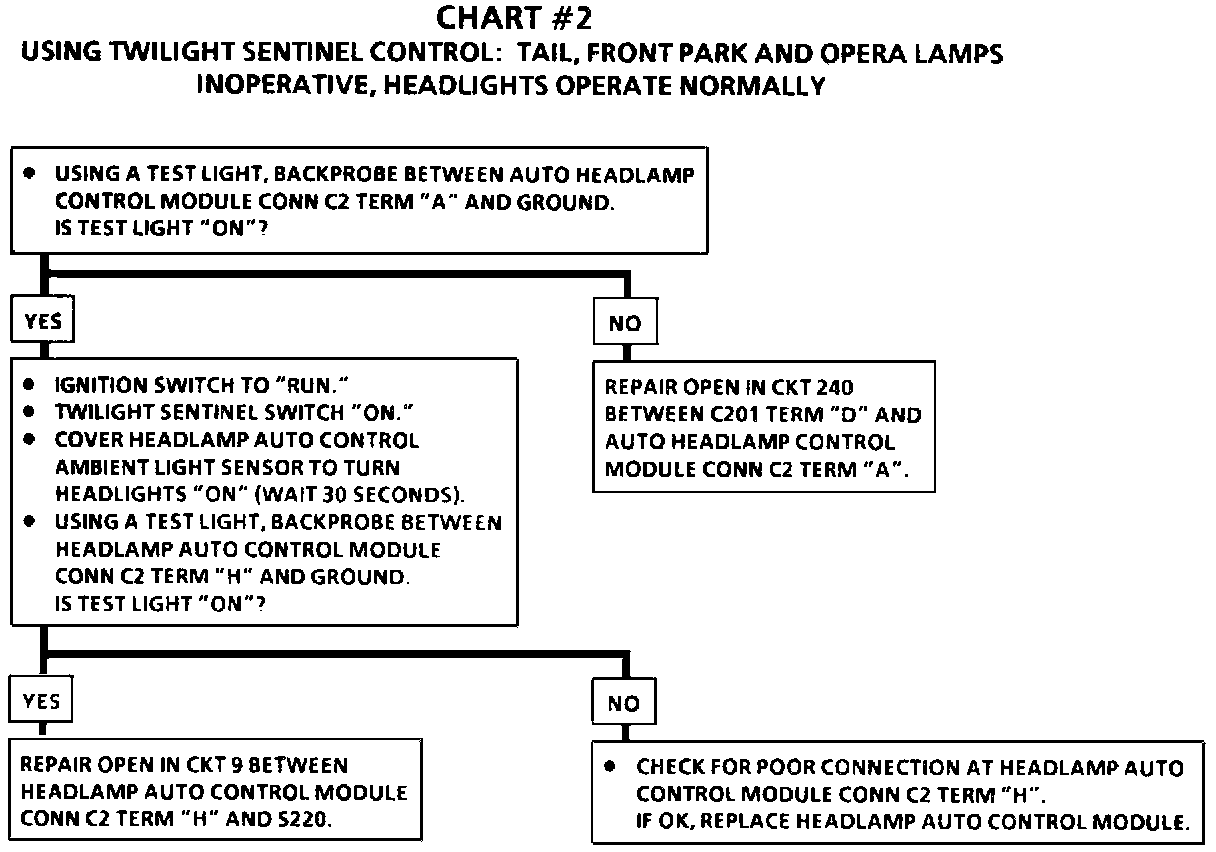

Chart #2 Using Twilight Sentinel Control: Tail, Front Park And Opera Lamps Inoperative, Headlights Operate Normally:
