Serial Data Line Diagnosis

Refer to flow chart. See Fig 1 and Fig 2 .

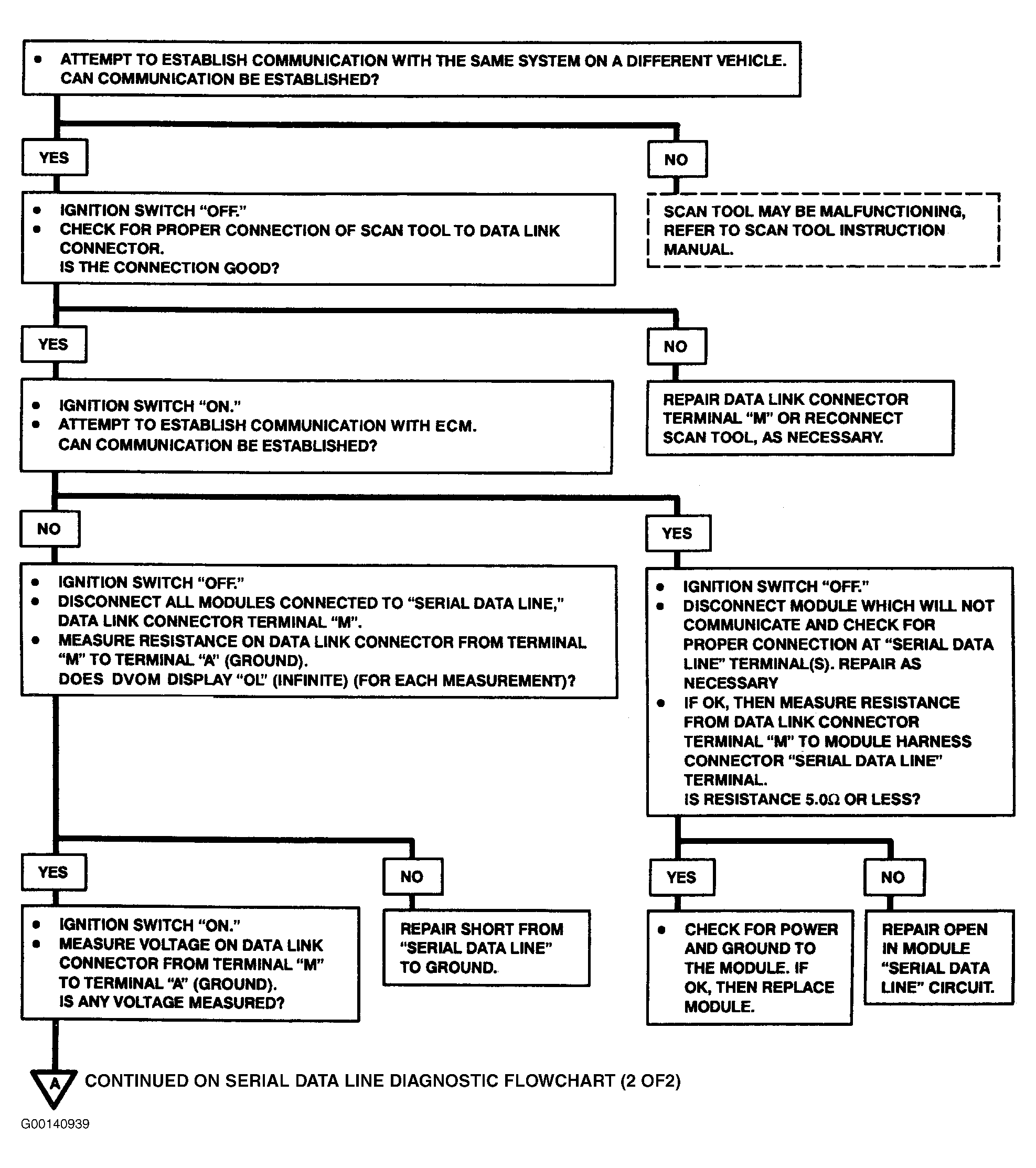

Fig 1: Serial Data Line Diagnostic Flow Chart (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

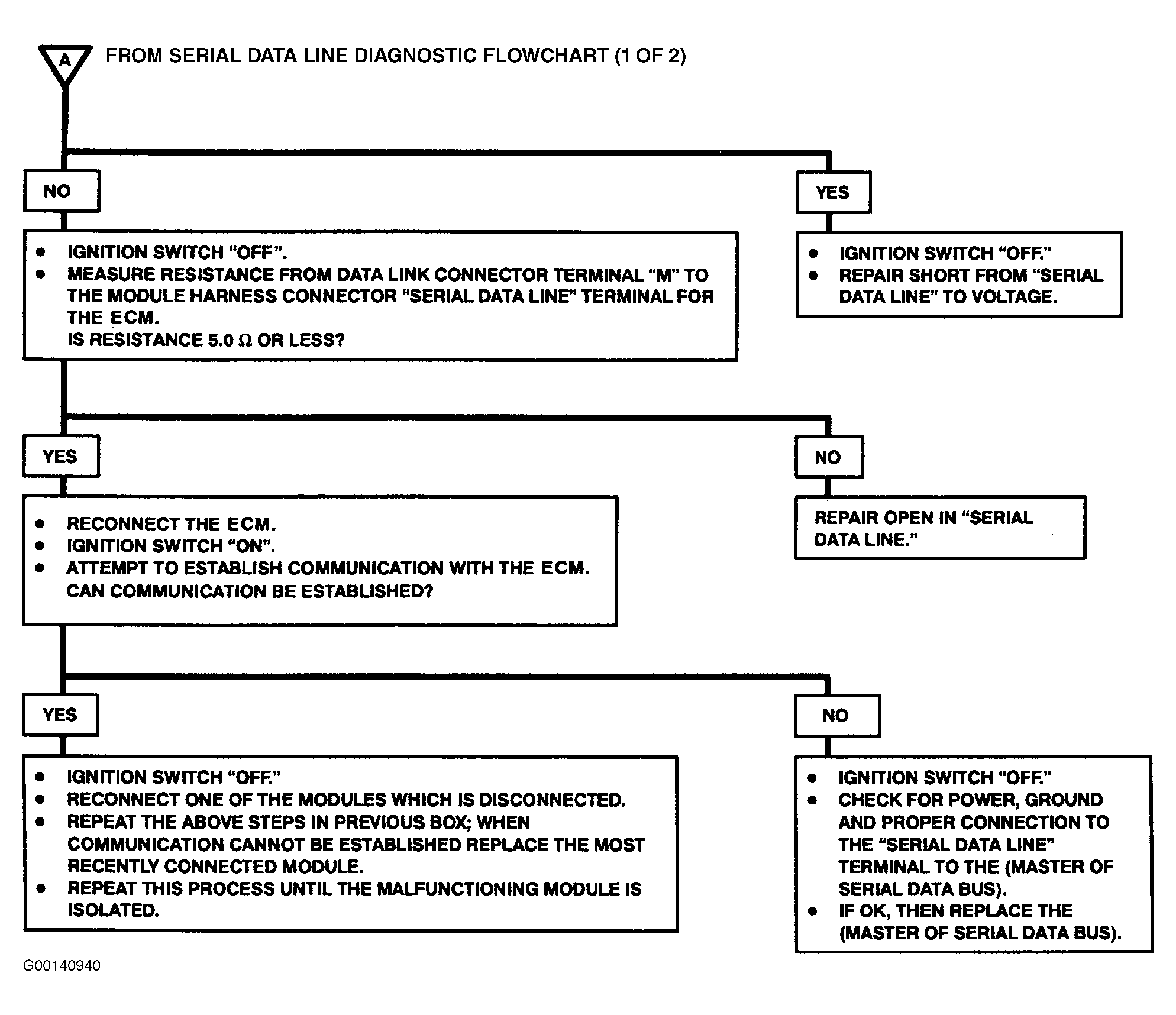

Fig 2: Serial Data Line Diagnostic Flow Chart (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
