Compressor HVAC: Testing and Inspection

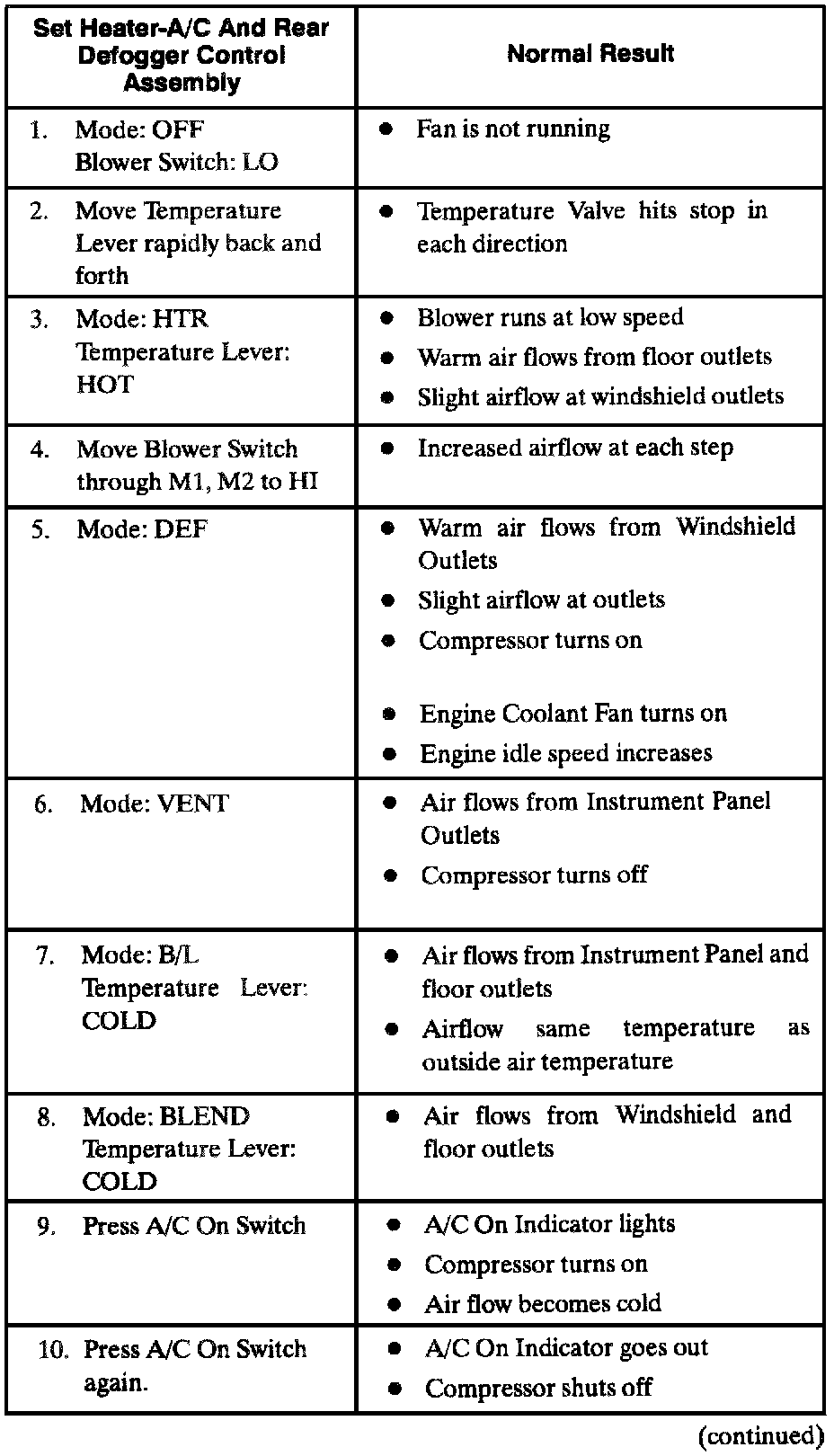

System Check (Part 1 Of 2):

System Check (Part 2 Of 2):

If all above steps can be completed as described, the HVAC system is operated normally.

The above table provides an overall check of the air conditioning system.
All of the steps in each procedure can be completed without the use of tools or disassembly.

Complete this check with the temperature outside the car at 16°C (60°F) or higher and with the engine running.
