Compressor Controls

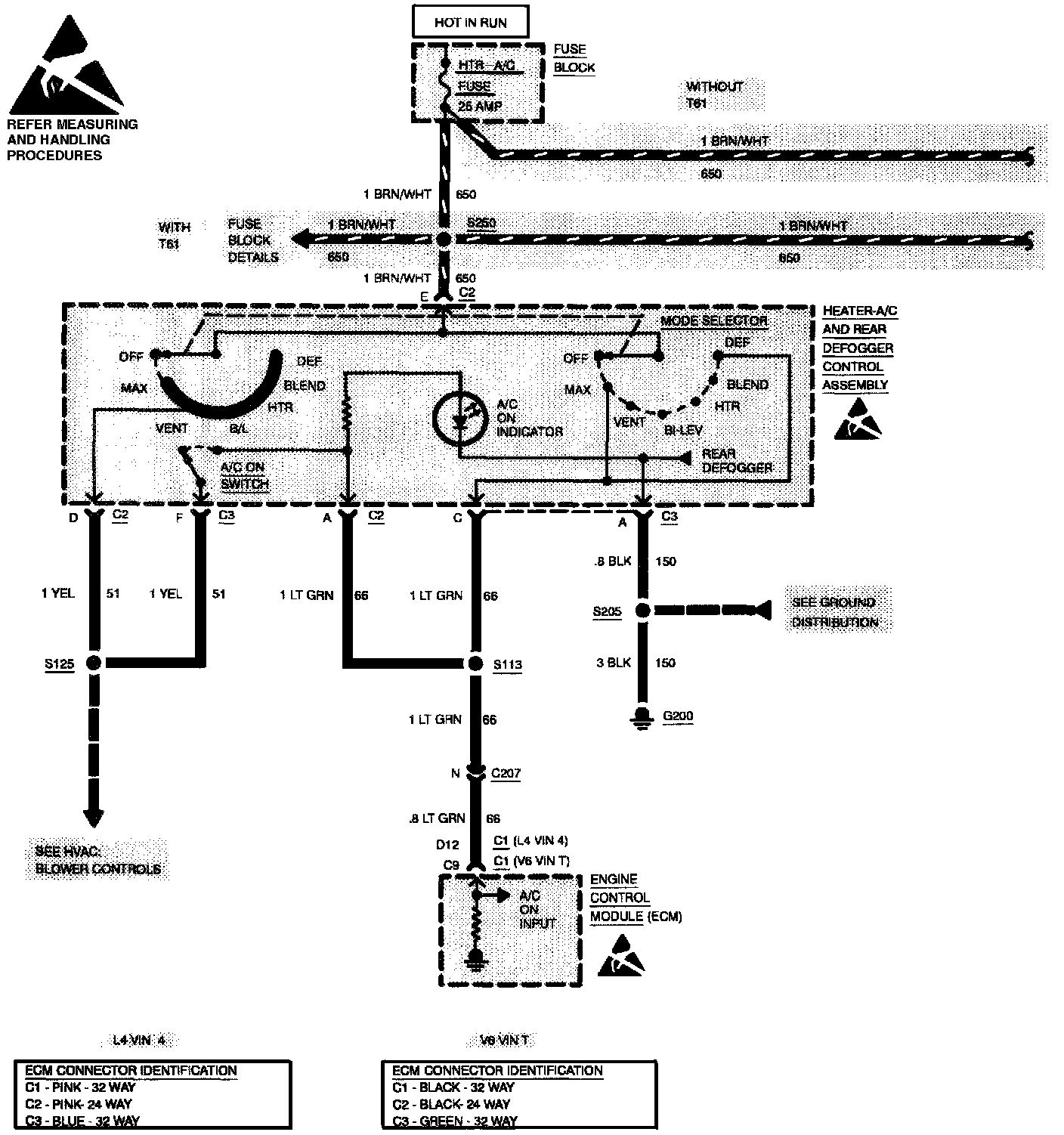

HVAC: Compressor Controls (C60, Manual) (Part 1 Of 2):



HVAC: Compressor Controls (C60, Manual) (Part 1 Of 2):
