Keyless Entry

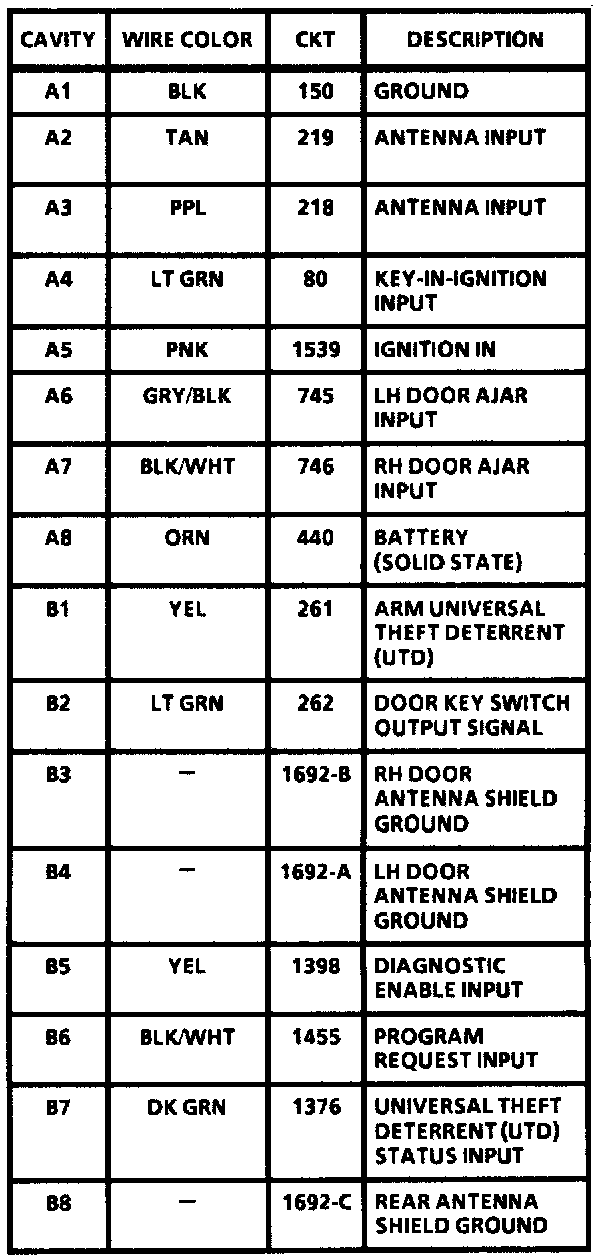

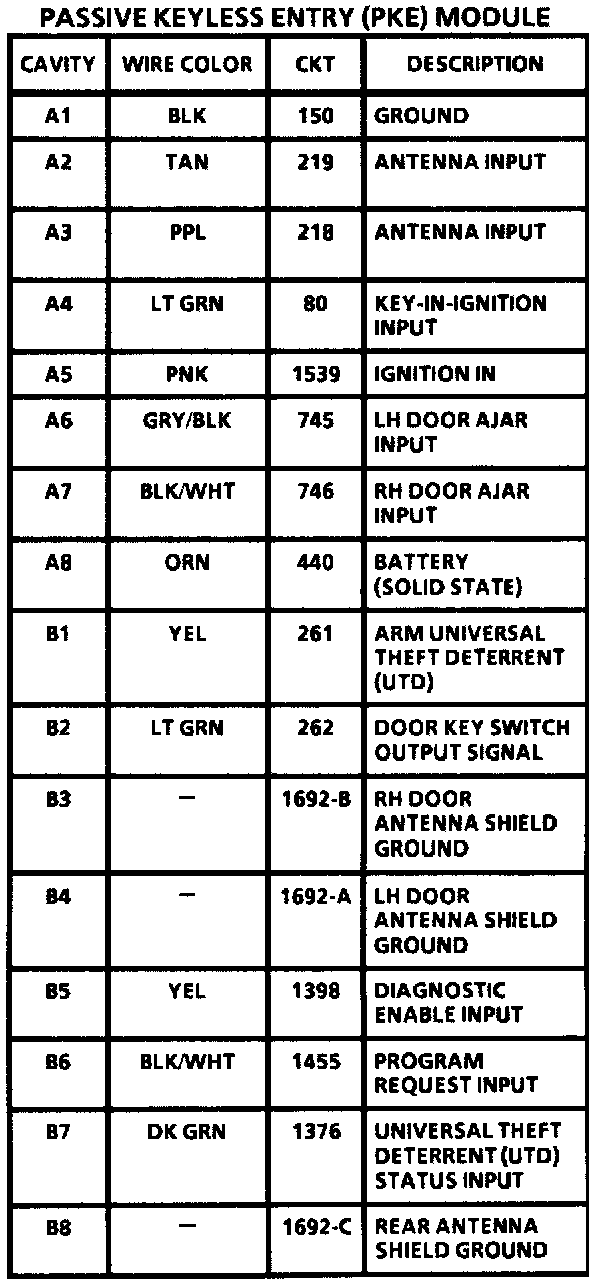

Passive Keyless Entry: C1:
Passive Keyless Entry: C2:
Passive Keyless Entry: C1:
Passive Keyless Entry: C2:
