Home
>>
Chevrolet
>>
1994
>>
Corvette V8-350 5.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Central Control Module
>>
Wiring Schematics
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

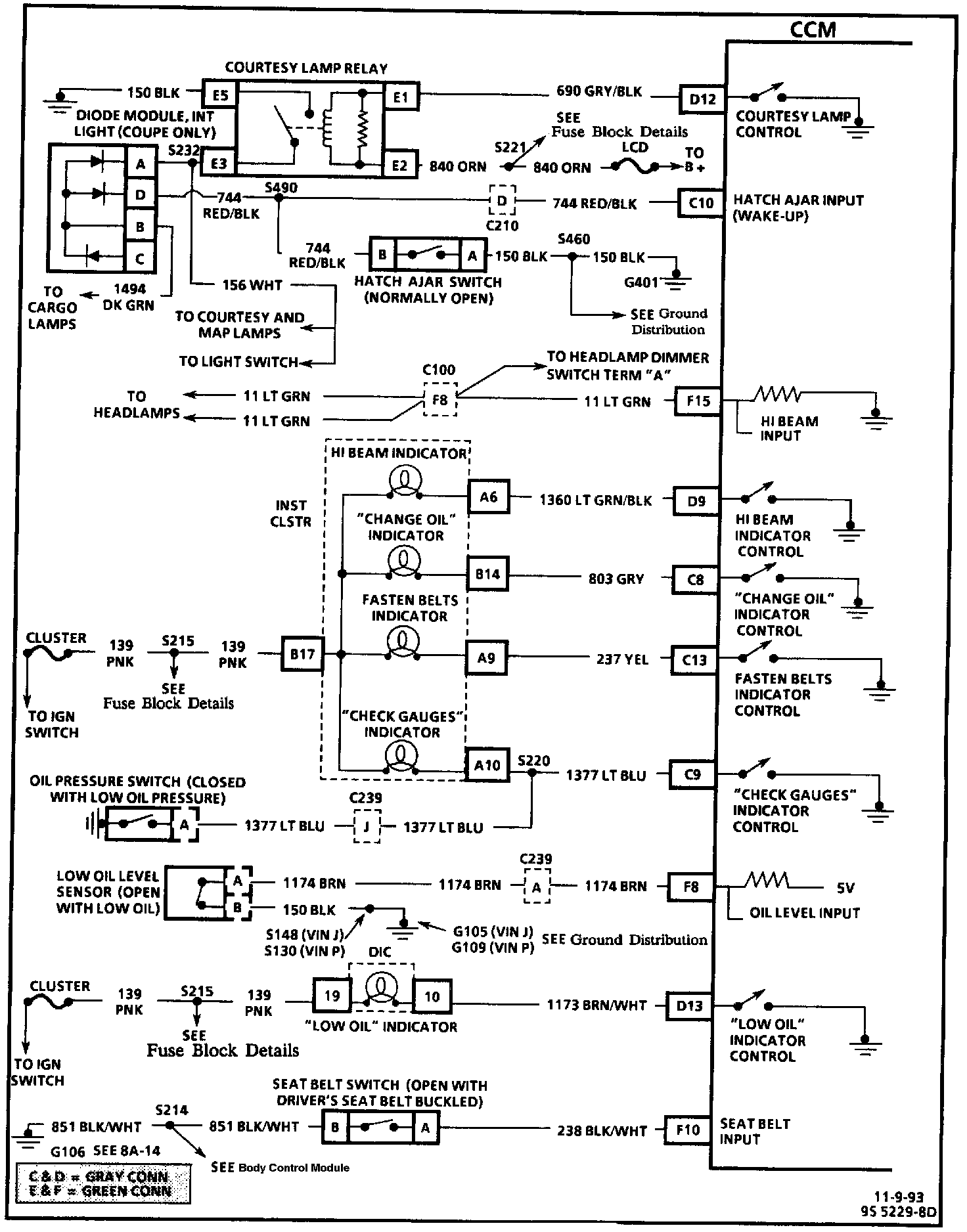

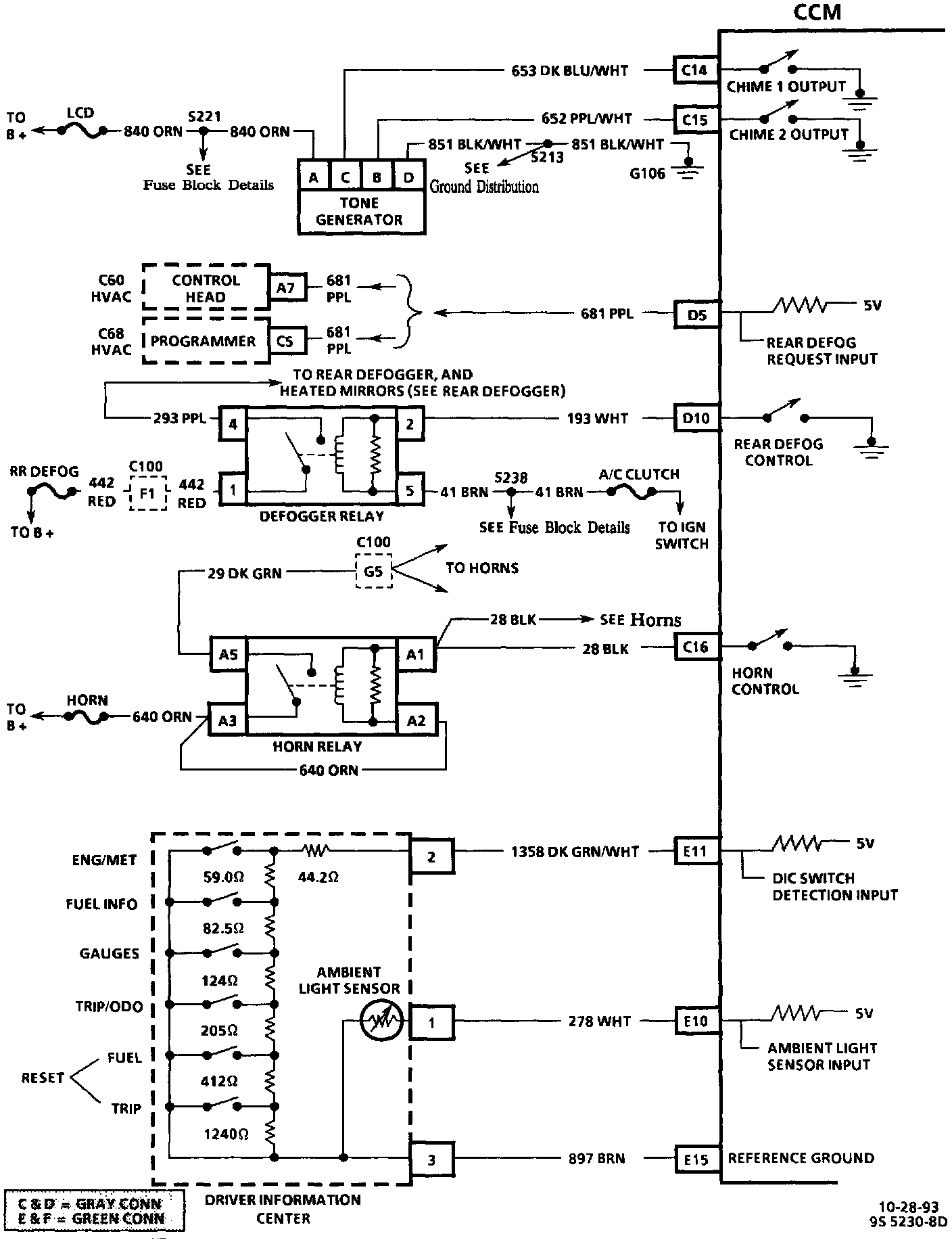

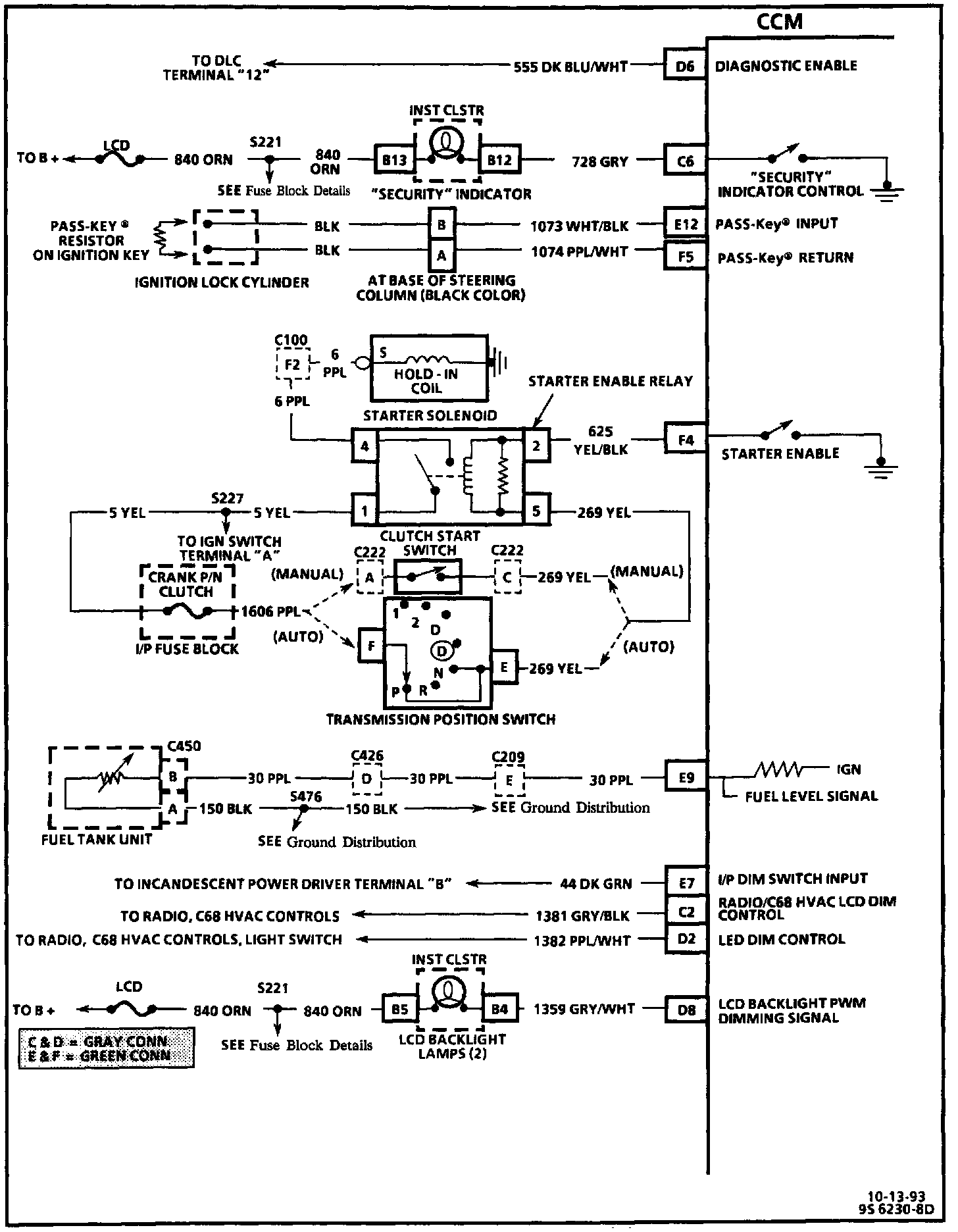

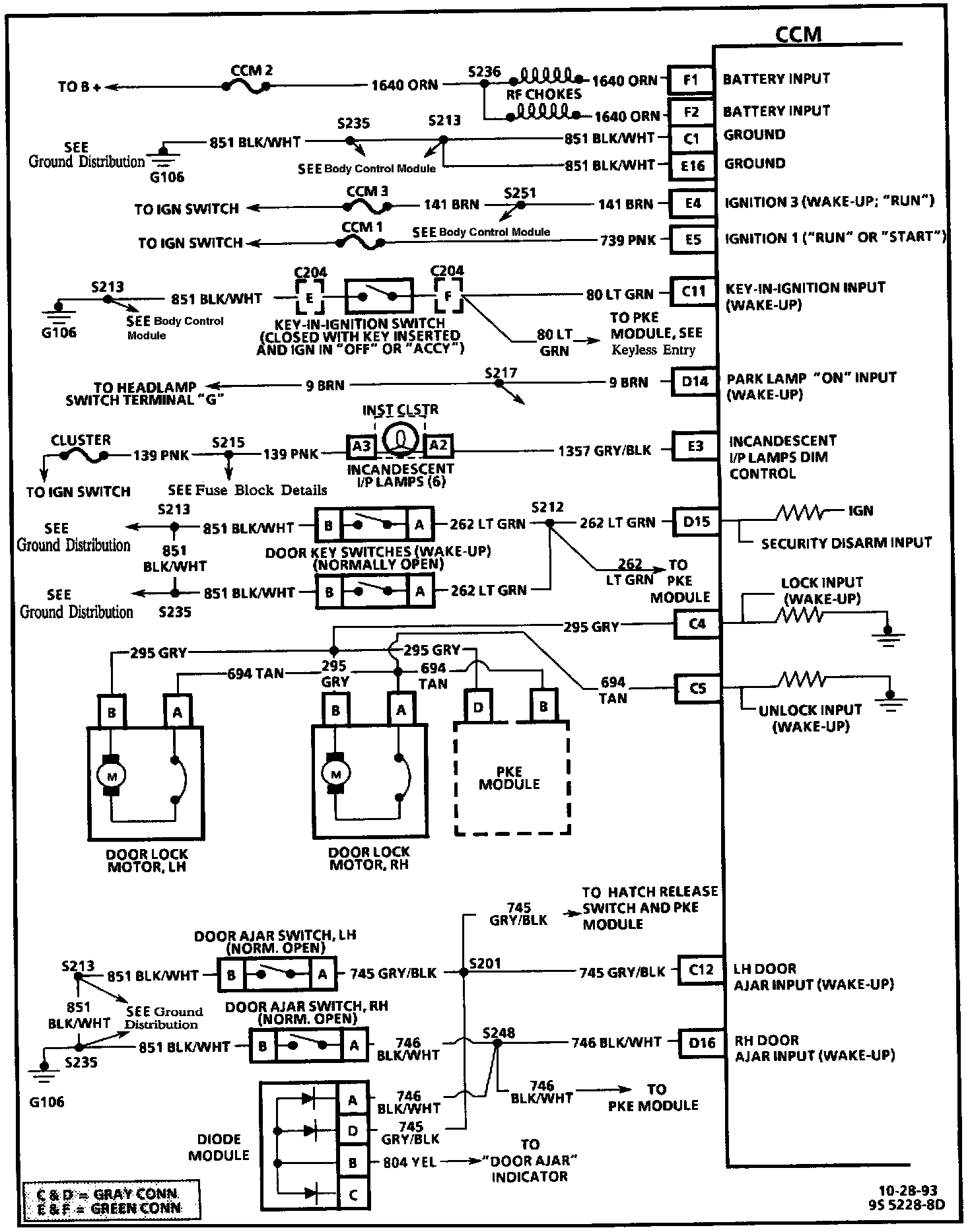

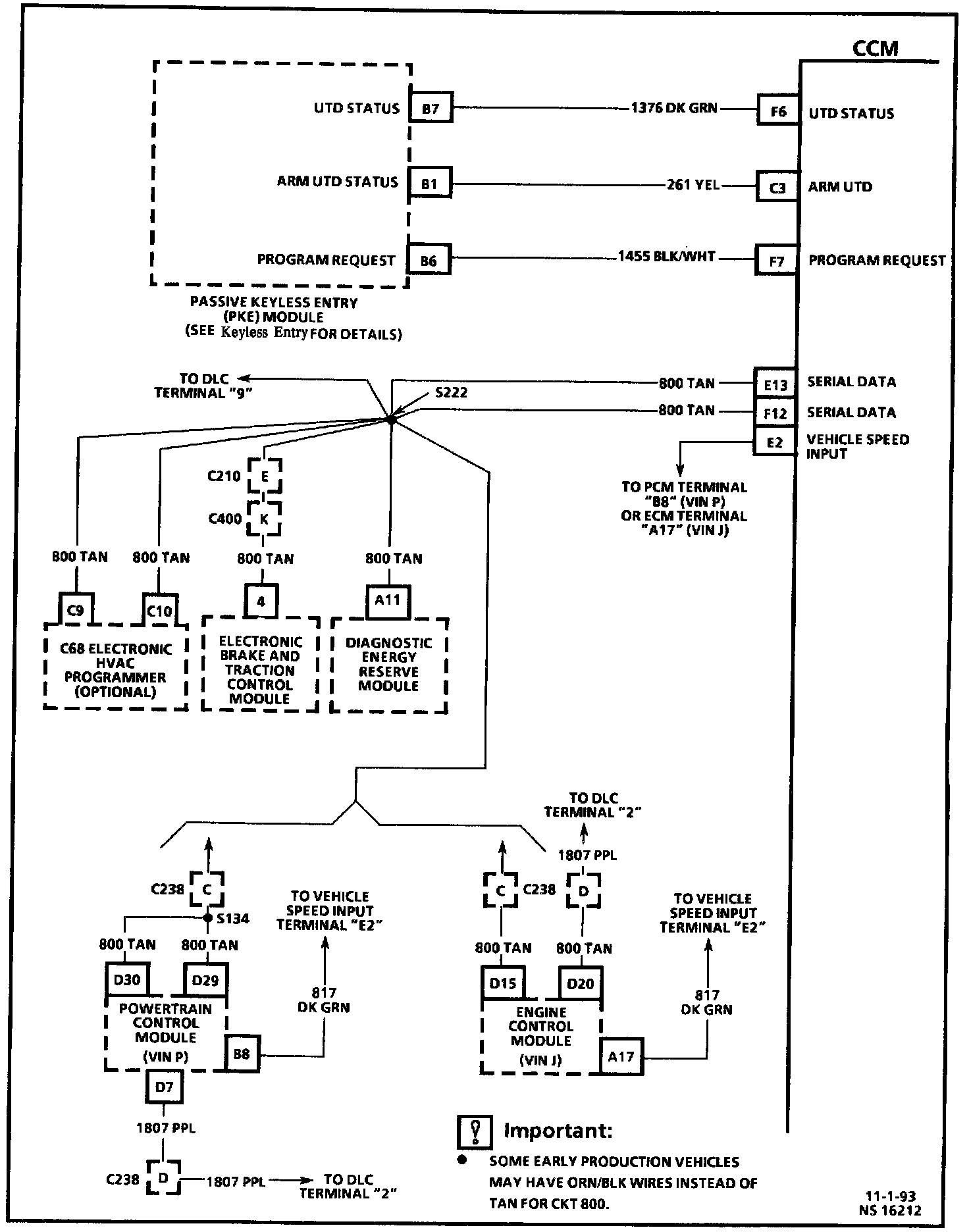

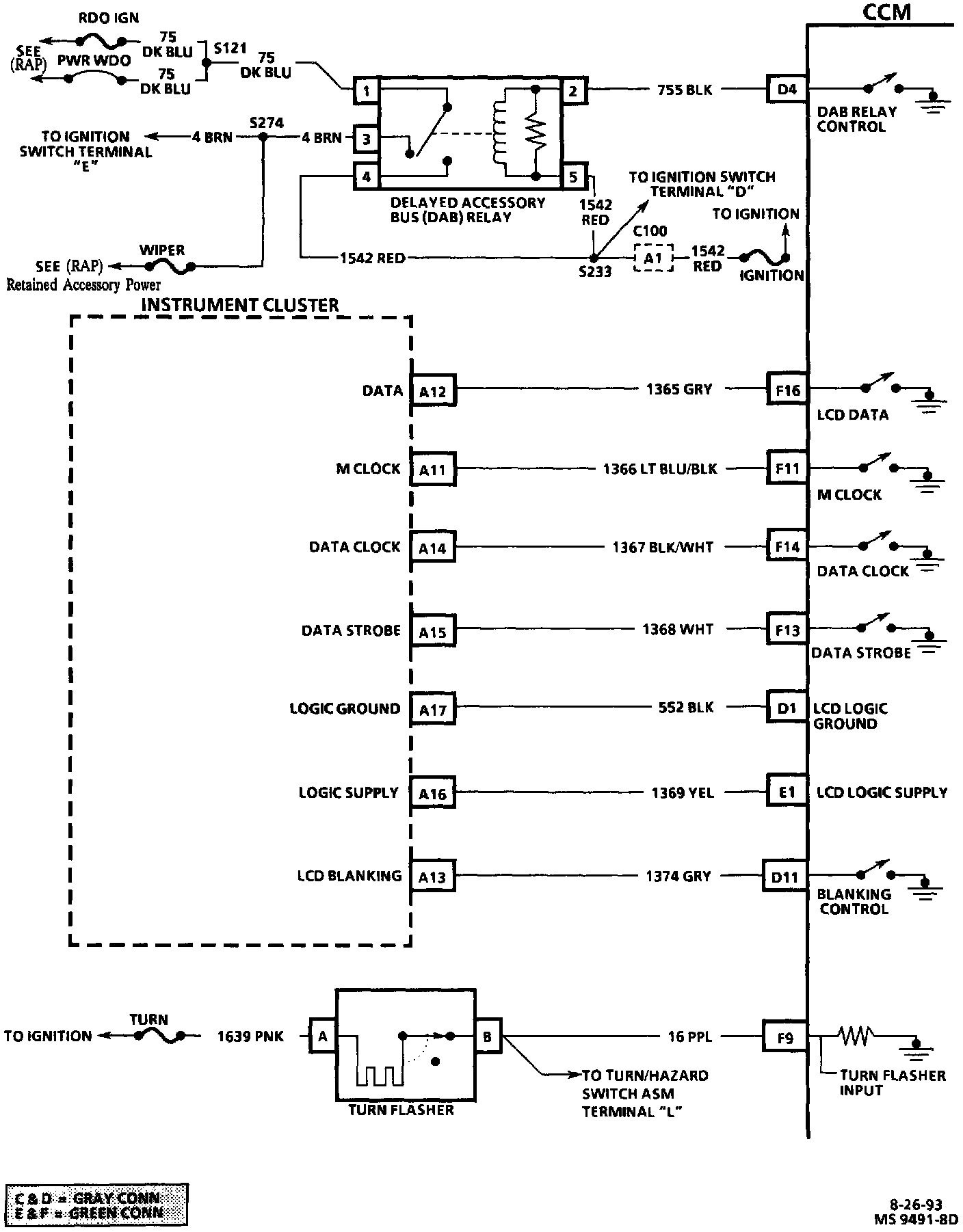

Wiring Schematics
